GIGACLOUD TECHNOLOGY(USA) INC
Made in Vietnam
WARNING: Read all
instructions before assembling this
product. KEEP INSTRUCTIONS
FOR FUTURE USE.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact us first. You can also order parts by writing to the
address above.
Include the product model number, color, and a brief description of the part.
CARE AND CLEANING
DO NOT scratch or chip the finish. DO NOT use abrasive chemicals for cleaning. Dust often using a clean, soft, dry cloth.
Blot spills immediately and wipe with a clean, damp cloth. If the crib is to be stored, store in a cool, dry place and carefully package
all original hardware to protect from loss.
TOOLS NEEDED
Allen key (included)
NOTE: Two people are recommended for assembly.
NOTE: When inserting bolts, turn clockwise until tight. Then loosen
each bolt and tighten. Use wax or soap on all bolts to facilitate assembly.

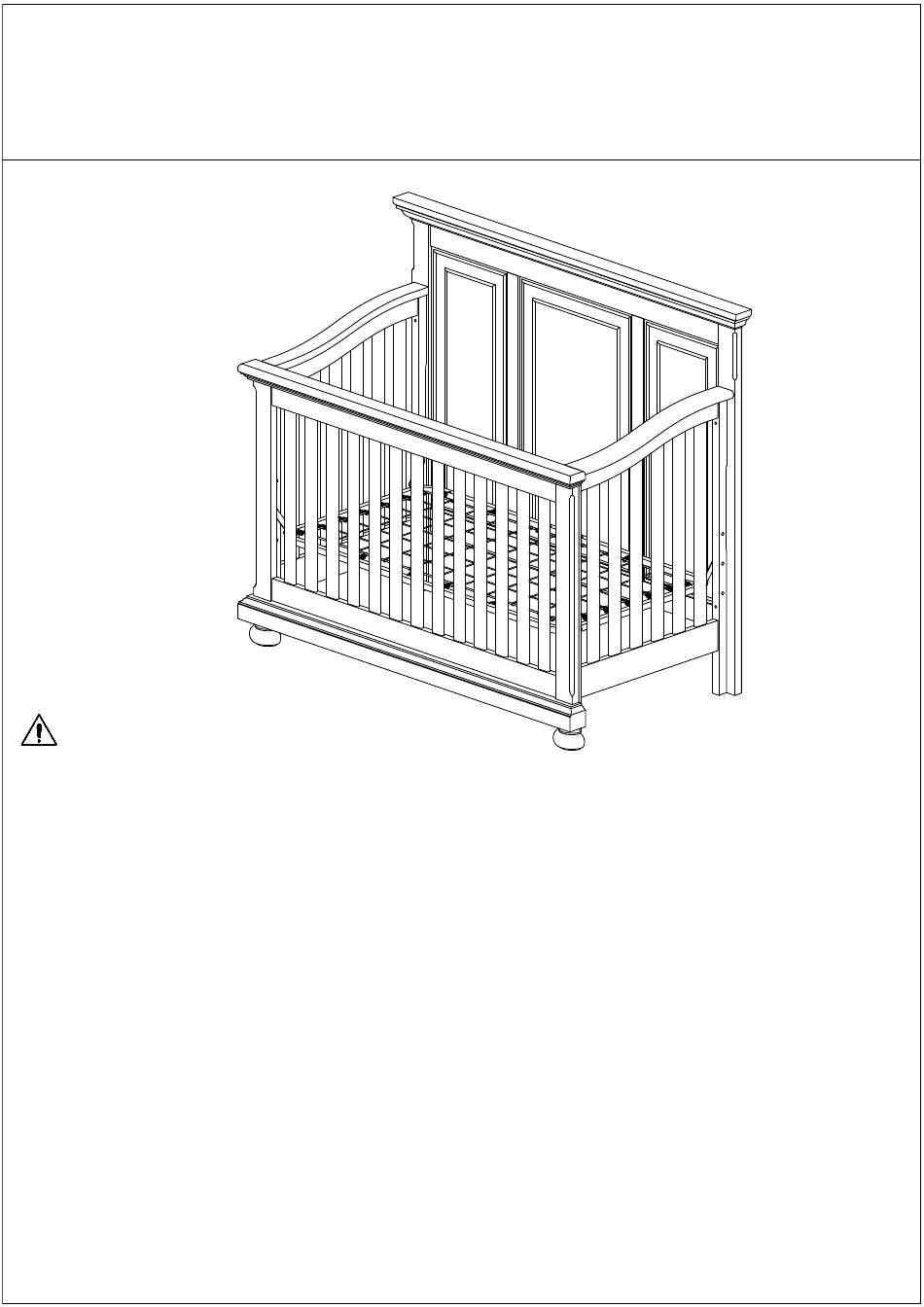

CRIB - ASSEMBLY INTRUCTIONS
WF299785/WF299786
½
¾
-
of a turn. After crib is completely assembled, return t
1/15
Advertisement
Related Manuals for GIGACLOUD TECHNOLOGY WF299785
Summary of Contents for GIGACLOUD TECHNOLOGY WF299785
- Page 1 GIGACLOUD TECHNOLOGY(USA) INC CRIB - ASSEMBLY INTRUCTIONS WF299785/WF299786 Made in Vietnam WARNING: Read all instructions before assembling this product. KEEP INSTRUCTIONS FOR FUTURE USE. CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact us first. You can also order parts by writing to the address above.
- Page 2 IMPORTANT SAFETY INFORMATION FOR CRIBS WARNING: Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. WARNING: Failure to follow these warnings and the assembly instructions could result in serious injury or death To reduce the risk of SIDS, pediatricians recommend healthy infants to be placed on their backs to sleep, unless otherwise approved by your physician.
- Page 3 IMPORTANT SAFETY INFORMATION FOR CRIBS CAUTION: ANY MATTRESS USE IN THIS CRIB SHALL BE AT LEAST 27 1/4 X 51 5/8" WITH A THICKNESS NOT EXCEEDING 6". WARNING Do not use this crib if you cannot exactly follow the instructions provided. Use a mattress that is no thicker than 15cm in height and, when it is pushed firmly against any side of this crib, it does not leave a gap of more than 3cm between the mattress and any part of any other side of the crib.
-
Page 4: Item Identification
ITEM IDENTIFICATION PARK LIST WF299785 Footboard Support Bar PARK LIST WF299786 Headboard Top Headboard Left Leg Left Side Frame Headboard Right Leg Right Side Frame Headboard Side Panel Metal Cradle Frame Headboard Mid Panel Footboard Mid Frame Headboard Back Support Bar... -
Page 5: Hardware List
HARDWARE LIST (AA) M6 x 70mm Allen Bolt = 10 pcs (GG) Cam Lock (Ø15 x12mm) = 2 pcs (BB) M6 x 50mm Allen Bolt = 8 pcs (HH) Metal Support (100 x 20 x 2mm) = 4 pcs (CC) M6 x 30mm Allen Bolt = 4 pcs Wood dowel (Ø8 x 30) = 16 pcs (DD) M6 x 15mm Allen Bolt = 8 pcs Lock Washers (Ø10 x Ø6.5 x 1.5mm) = 20 pcs... - Page 6 STEP #1: HEAD BOARD ASSEMBLY Step #1.1: Attach the Headboard mid panel (E) to the Head board top (A) using the cam bolt (FF), cam lock (GG), wood dowel. Tighten with screw driver (not included). (FF) Cam Bolt (Ø6.5 x 36mm) = 2 pcs (GG) Cam Lock (Ø15 x12mm) = 2 pcs (FF) Wood dowel (Ø8 x 30) = 2 pcs...
- Page 7 Step #1.2: Insert Headboard side panel (D) into grove Head board top (A) and Headboard side panel. (AA) Wooden dowell Step 1.3: Attach the Headboard support bar (F) to the Headboard mid panel (E), using allen bolt (AA) and wood dowel. Tighten with allen wrench. (AA) M6 x 70mm Allen Bolt = 2 pcs Wood dowel (Ø8 x 30) = 2 pcs 7/15...
- Page 8 Step #1.4 Insert Headboard top (A) to grove Headboard leg (B),using wooden dowell. Attach the Headboard legs (B) to the Headboard top (A) and Headboard support bar (F), using metal support (HH) allen bolt (DD) with lock washer, plain washers. Tighten with allen wrench. (DD) M6 x 15mm Allen Bolt = 4 pcs (HH) (HH) Metal Support (100 x 20 x 2mm) =2 pcs...
- Page 9 Step #1.5 Insert Headboard top (A) to grove Headboard leg (C),using wooden dowell. Attach the Headboard legs (C) to the Headboard top (A) and Headboard support bar (F), using metal support (HH) allen bolt (DD) with lock washer, plain washers. Tighten with allen wrench. (DD) M6 x 15mm Allen Bolt = 4 pcs (HH) (AA)
-
Page 10: Step #2: Foot Board Assembly
STEP #2: FOOT BOARD ASSEMBLY Step #2.1: Attach the Footboard mid frame (K) to the Footboard Top (J),using allen bolt (AA) and wood dowel. Tighten with allen wrench. (AA) M6 x 70mm Allen Bolt = 3 pcs Wood dowel (Ø8 x 30) = 3 pcs Wooden dowell (AA) 10/15... - Page 11 Step #2.2: Attach the Footboard support (L) to the Footboard mid frame (K),using allen bolt (AA) and wood dowel. Tighten with allen wrench. (AA) M6 x 70mm Allen Bolt = 3 pcs Wood dowel (Ø8 x 30) = 3 pcs (AA) Wooden dowell Wooden dowell...
- Page 12 Step #2.3: Attach the Legs (M) to the Footboard support bar (L),using allen bolt (AA) and wood dowel. Tighten with allen wrench. (AA) M6 x 70mm Allen Bolt = 2 pcs Wood dowel (Ø8 x 30) = 4 pcs (AA) Wooden dowell Wooden dowell 12/15...
- Page 13 STEP #3: SIDE FRAME, METAL CRADLE FRAME ASSEMBLY Attach the Metal cradle frame (I) to the Side frame, using allen bolt (CC) with lock washer, plain washers, canopy head though. Tighten with allen wrench. (CC) M6 x 30mm Allen Bolt = 4 pcs Plain Washers (Ø10 x Ø6.5 x 1.5mm) = 4 pcs (EE) Canopy head though M6 x 18mm = 4 pcs Lock Washers (Ø10 x Ø6.5 x 1.5mm) = 4 pcs...
- Page 14 STEP #4: HEADBOARD, FOOTBOARD, SIDE FRAME ASSEMBLY Step #4.1: Attach the Side frame (G),(H) to the Heardboard,using allen bolt (BB) with lock washer, plain washers. Tighten with allen wrench. (BB) M6 x 50mm Allen Bolt = 4 pcs Plain Washers (Ø10 x Ø6.5 x 1.5mm) = 4 pcs Lock Washers (Ø10 x Ø6.5 x 1.5mm) = 4 pcs (AA) (AA)
- Page 15 Step #4.2: Attach the Side frame (G),(H) to the Footboard,using allen bolt (BB) with lock washer, plain washers. Tighten with allen wrench. (BB) M6 x 50mm Allen Bolt = 4 pcs Plain Washers (Ø10 x Ø6.5 x 1.5mm) = 4 pcs Lock Washers (Ø10 x Ø6.5 x 1.5mm) = 4 pcs (BB) (BB)
