GIGACLOUD TECHNOLOGY WF306667 Assembly Instructions Manual

GIGACLOUD TECHNOLOGY WF306667 Assembly Instructions Manual

Twin over twin bunk bed

Advertisement

Quick Links

ASSEMBLY INSTRUCTIONS

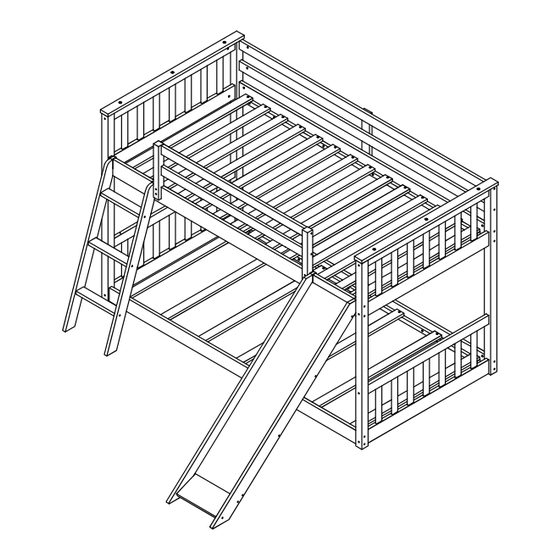

TWIN OVER TWIN BUNK BED
WF306667
/
WF306668
PAGE 1 OF 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the WF306667 and is the answer not in the manual?

Questions and answers

LaQuanya
June 14, 2025

How do I get replacement hardware for a used bed

Subscribe to Our Youtube Channel

Summary of Contents for GIGACLOUD TECHNOLOGY WF306667

  • Page 1 ASSEMBLY INSTRUCTIONS TWIN OVER TWIN BUNK BED WF306667 WF306668 PAGE 1 OF 12...
  • Page 2: Safety Warnings

    ASSEMBLY INSTRUCTIONS SAFETY WARNINGS 1. This bed is designed for use only mattress (es) meeting the following specifications on the upper bunk, and lower bunk: Upper bunk (bunk bed and tribed included) Bed Type Length Width Thickness Twin Standard 74" - 75" "...
  • Page 3 ASSEMBLY INSTRUCTIONS 1. At the beginning : Tighten all hardware. Check metal parts for rust. If found, sand and repaint using a non-lead-based paint meeting the requirements of 16 CFR 1303. Check all wood members for deterioration and splinters. Sand down splinters and replace deteriorating wood members.
  • Page 4: Detail View

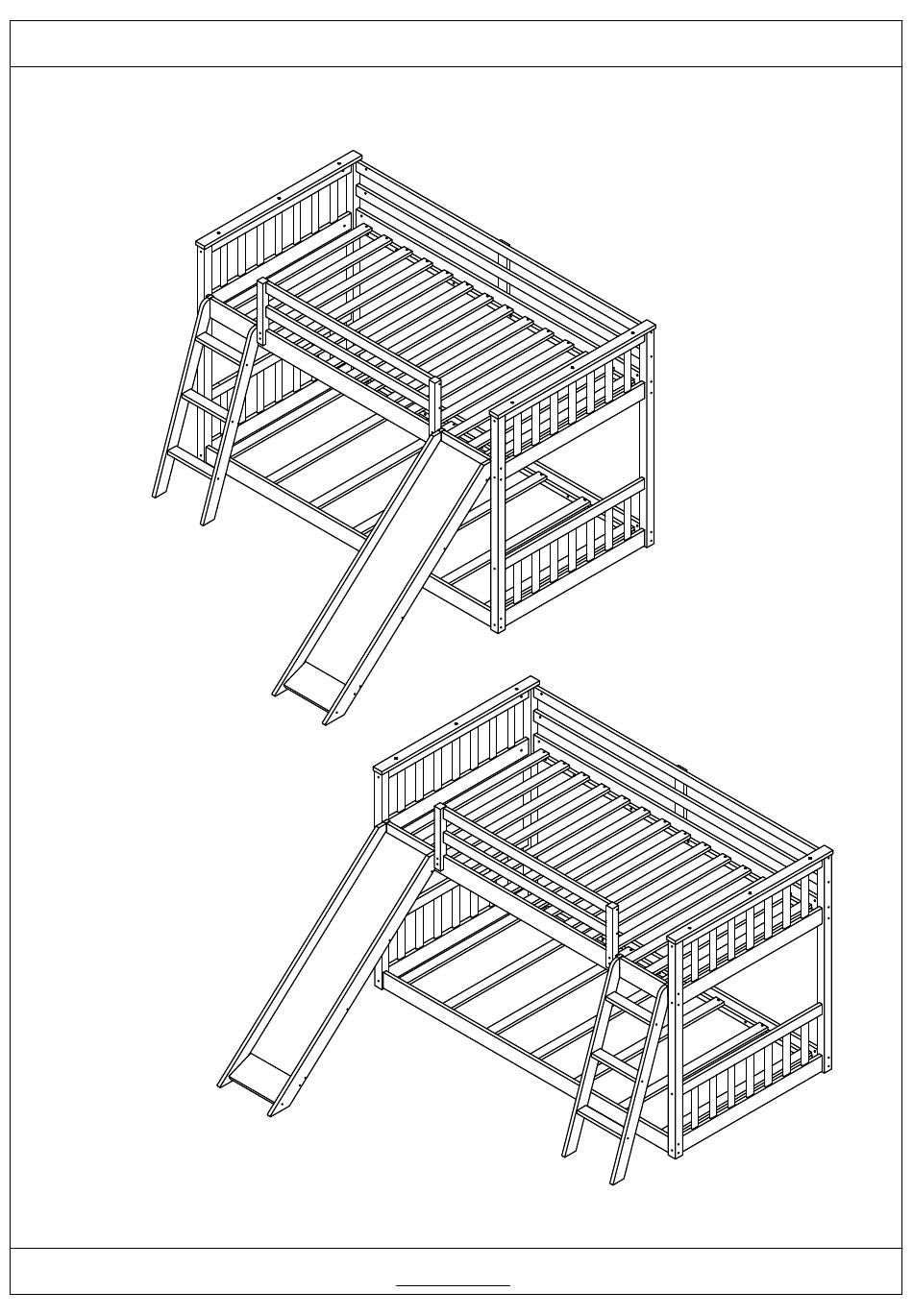

    ASSEMBLY INSTRUCTIONS DETAIL VIEW PAGE 4 OF 12...
  • Page 5 ASSEMBLY INSTRUCTIONS PARTS LIST WF306667 2pcs 2pcs Headboard frames Headboard frames 21pcs Slats (upper 14pcs / lower 7pcs) PARTS LIST WF306668 ( Hardware in this SKU) 2pcs Right front leg Lower bed-side rails Back guard rails support Left front leg...
  • Page 6: Hardware List

    ASSEMBLY INSTRUCTIONS HARDWARE LIST ( WF306668 45PCS 1/4x35 4PCS Ø4x30 Ø10x40 12PCS 34PCS Ø4x15 70x18x2 4PCS 1/4x12 12PCS 4x58 1/4x19 12PCS 1/4x55 1/4x90 40PCS 12PCS 1/4x70 12PCS Step 1 4 x1 5 x1 24 x1 3 x1 2 x1 5 x1 1 x1 24 x1 4x58...
  • Page 7 ASSEMBLY INSTRUCTIONS Step 2 6 x1 6 x1 4x58 1/4x55 6PCS PAGE 7 OF 12...
  • Page 8 ASSEMBLY INSTRUCTIONS Step 3 10 x2 12 x1 13 x1 11 x1 13 x1 1/4x90 20PCS Ø10x40 4x58 12PCS PAGE 8 OF 12...
  • Page 9 ASSEMBLY INSTRUCTIONS Step 4 9 x2 7 x1 8 x1 1/4x90 4PCS Ø10x40 4PCS 4x58 Step 5 1/4x35 4PCS 4x58 PAGE 9 OF 12...
  • Page 10 ASSEMBLY INSTRUCTIONS First attach 2pcs part 21 to the front and end of the frame between headboard. Step 6 Then attach the remaining part 21 equidistantly between headboard 3-1/8" 3-1/8" 21 x14 14 x1 21 x7 9-1/8" 9-1/8" Note : Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break 45PCS Ø4x30...
  • Page 11 ASSEMBLY INSTRUCTIONS Step 7 23 x1 20 x2 19 x1 20 x2 18 x1 22 x1 1/4x12 12PCS Ø4x15 4PCS 1/4x19 12PCS 70x18x2 4x58 2PCS Ø10x40 12PCS 10PCS 1/4x70 Step 8 17 x2 17 x1 15 x1 16 x1 70x18x2 2PCS Ø4x15 4PCS...
  • Page 12 ASSEMBLY INSTRUCTIONS Step 9 4PCS Ø4x15 PAGE 12 OF 12...
