ATOMSTACK R2 V2 Installation Manual page 9

Use LightBurn
2. Open the Rotary Setup window and set the parameters

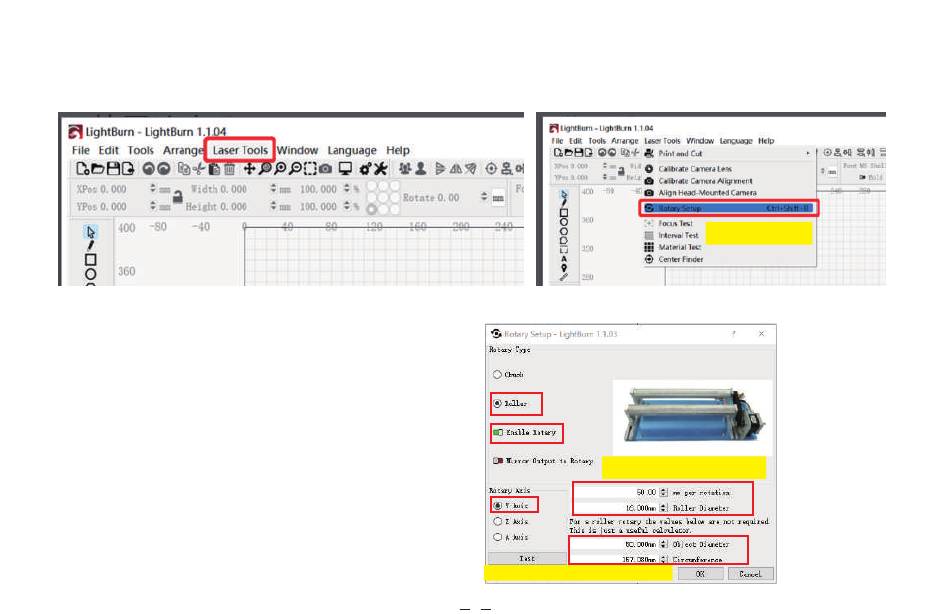

2.1 Open the Rotary Setup window: Click "Laser Tools" on the toolbar and then click "Rotary Setup"
Rotary Setup
2.2 Set the correct parameters in the Rotary Setup window: As shown in the figure
Steps:
(1) Select the rotary type: Roller Type
(2) Turn on "Enable Rotary"
(3) Select the "Y Axis" rotary axis
(4) Input the parameters (fixed value) of the rotary equipment
(5) Enter your object parameters:Enter the actual measured perimeter or diameter
Parameters of rotation
value, and another value will be automatically generated
The parameters of your sculpted odject
7
