Installation Guide
Step 4: Adjust Gear

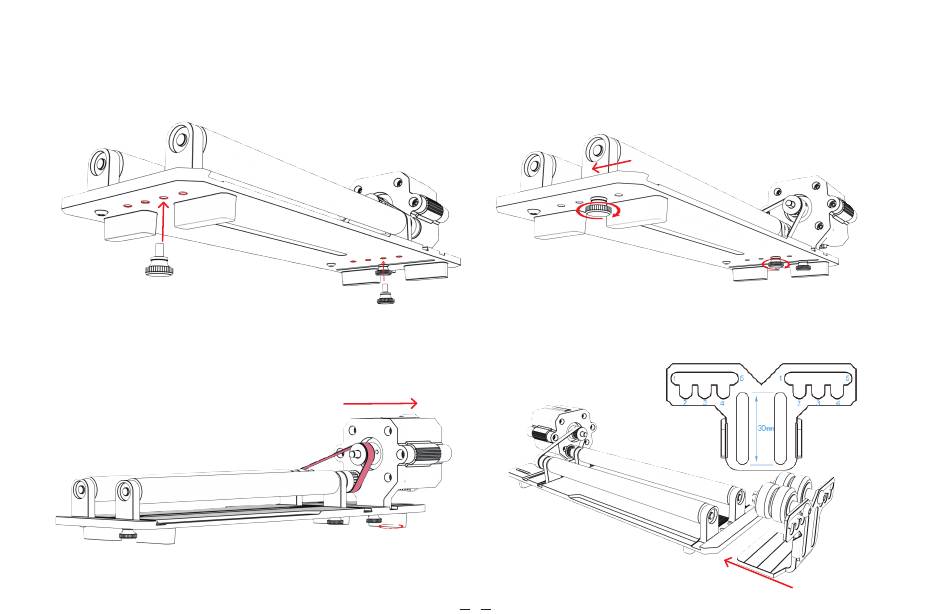

3.1 Select different gears according to the engraved items.
4
3
2
1
3.3 Move the motor to tighten the belt and tighten the screws at
the bottom of the motor.
3.2 Move the roller to the appropriate gear and tighten the screw.
3.4 Adjust the bracket installation: choose different gears according to the
engraved special-shaped items, and move the bracket to a suitable position.
4
