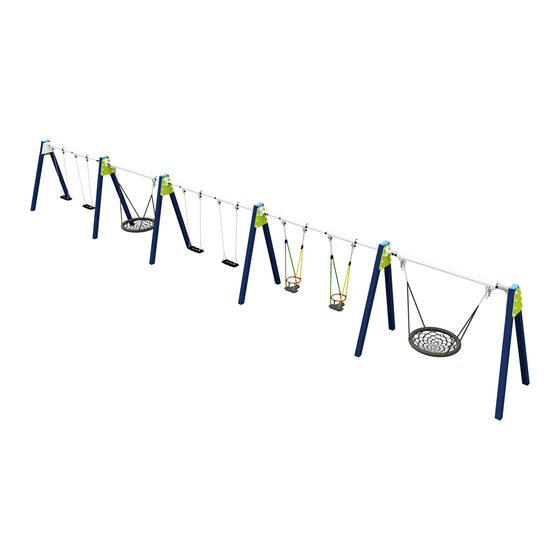

- Page 1 Multi Swing Anti-wrap H2.13 BBPE039.0A...
- Page 2 1,38 m 0,69 m 0,00 m 2,19 m 2,13 m 0,00 m > 0,35 m > 0,40 m >0,35 m Benaming Trippel schommel Title TOE BBP 039 0A Tekening Opmerking Drawing Comment Datum Hoofdafmetingen Main dimensions 29-11-2023 Date...
- Page 3 15,99 m 14,99 m 0,88 m 1,23 m 1,02 m 1,13 m 0,88 m 1,23 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming Trippel schommel Title TOE BBP 039 0A Tekening Opmerking Drawing Comment Datum Obstakelvrije zone Obstacle free zone...
- Page 4 0,27 m 3,49 m 2,55 m 3,22 m 3,22 m 2,98 m 0,26 m 0,30 m Grondmarkering Ground level marker 0,55 m 0,53 m Benaming Trippel schommel Title TOE BBP 039 0A Tekening Opmerking Drawing Comment Datum Bodemplan Groundplan 29-11-2023 Date...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat - The modules which contain tubes are dimensioned at the top of the flanges...
- Page 6 LOGBOOK Type indication Article number BBPE039.0A Product Name Multi Swing Anti-wrap H2.13 Construction year 2024 Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64 Installer name _______________________________________________________...
-
Page 7: Inspection And Maintenance
LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident... -
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
