Summary of Contents for BOERPLAY Double swing Anti-wrap H2.12

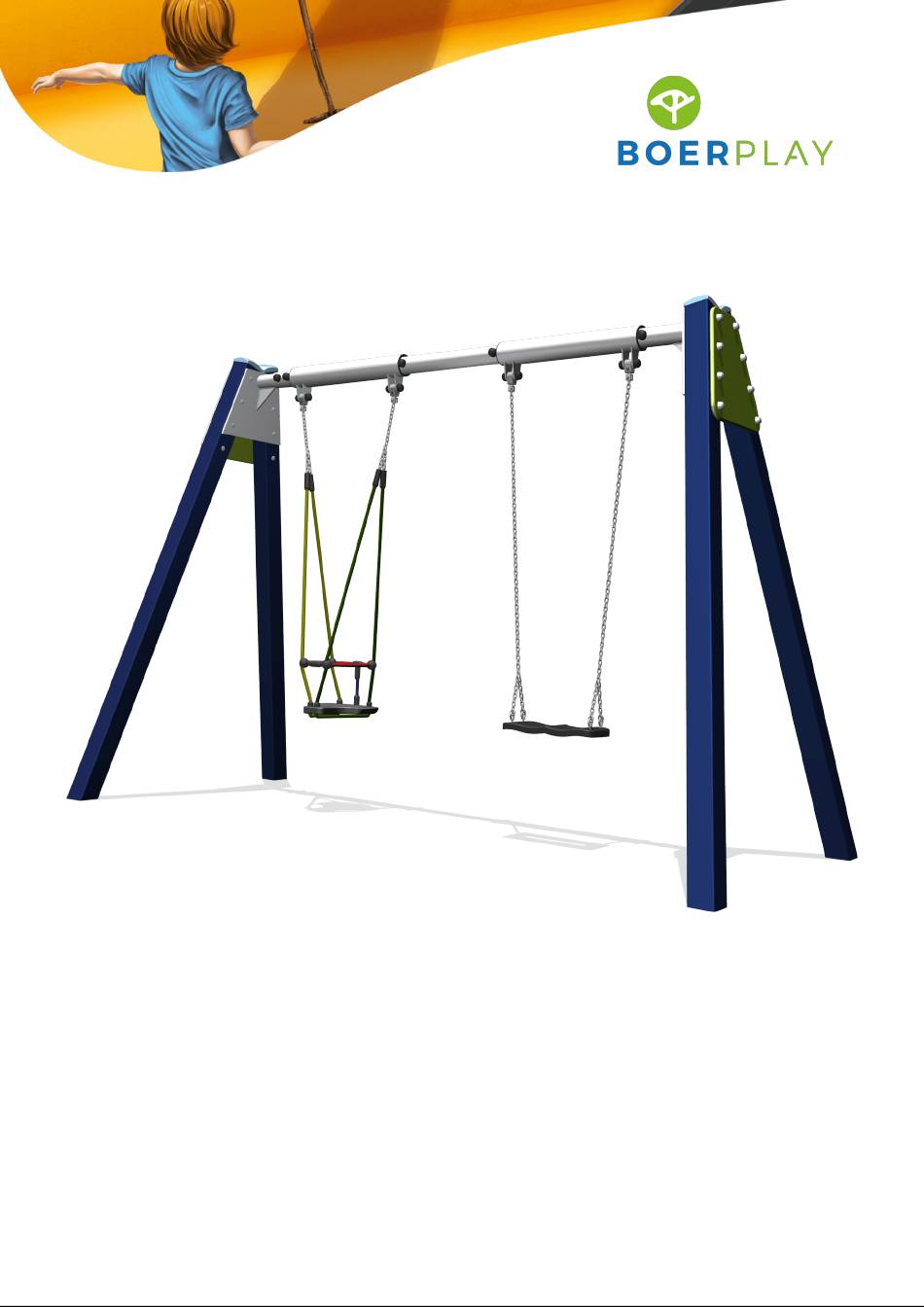

- Page 1 Double swing Anti-wrap H2.12 BBPE030.9A...
-
Page 2: Main Dimensions
Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 1,39 m 0,74 m 0,69 m 0,64 m 0,00 m 2,19 m 2,12 m 0,00 m BBP 030 9A © Copyright BOERplay 28-3-2022 Revision: B... - Page 3 Zona libre de obstáculos Zone libre d’obstacles 4,00 m 3,00 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles BBP 030 9A © Copyright BOERplay 28-3-2022 Revision: B...
- Page 4 B-B ( 1 : 50 ) ground plan Bodemplan Bodenplan Plan de superficie Plan de surface 0,37 m 3,25 m 0,38 m 0,30 m Grondmarkering Ground level marker 0,55 m BBP 030 9A © Copyright BOERplay 28-3-2022 Revision: B...
-
Page 5: Order Of Assembly
2 - Controleer de afmetingen van de valbodem t.o.v. het toestel Typeplaatje Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking AW Schommel Boer Basic play Basic Play Overgooi Zitje 1,5 m Multi Swing Peuterzitje lengte 1.5 m BBP 030 9A © Copyright BOERplay 28-3-2022 Revision: B... - Page 6 LOGBOOK Type indication Basic Play Article number BBPE030.9A Product Name Double swing Anti-wrap H2.12 Maximum fall height 1,4 m Construction year 2023 Certificate 136145 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 9 11 9 11 7 10 10 12 12 Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Klinknagel bolkop 4,8 x 18 - RVS A2-70 Borgmoer M10 - VZ 8.8 ZESKANT MOER Zeskantbout ISO 4014 M10 x 100 - VZ 8.8 Slotbout M10 x 145 - VZ 8.8 Slotbout...
- Page 12 M10 - RVS A2-70 Zeskantbout M10 x 70 - RVS A2-70 SLUITRING Schommelscharnier RVS A2-70 Peuterschommel Peuterzitje Lagerring BBP Schommel Beschermdop M10-M12 Donut zwart Beschermdop M10-M12 Dop zwart UBP Schommelbuis Schommel dubbel MOD BBP 680 G © Copyright BOERplay 28-3-2022 Revision:...
- Page 13 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Borgmoer M10 - RVS A2-70 M10 x 70 - RVS A2-70 Zeskantbout SLUITRING Schommelscharnier RVS A2-70 Zwart Zitje CNK + bevm Lagerring BBP Schommel Donut zwart Beschermdop M10-M12 Dop zwart Beschermdop M10-M12 Schommelketting 5mm Met vork 1,45 m UBP Schommelbuis Schommel dubbel...
