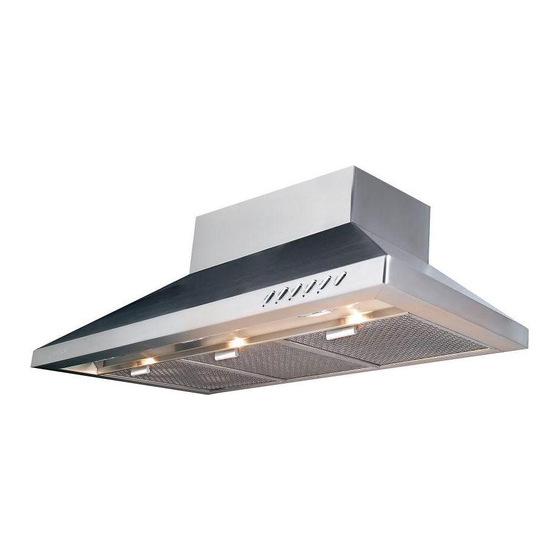

Wolf CTWH30 Installation Instructions Manual
Cooktop ventilation hoods
Hide thumbs
Also See for CTWH30:
- Installation manual (20 pages) ,
- Use & care information manual (16 pages) ,
- Datasheet (11 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wolf CTWH30
Summary of Contents for Wolf CTWH30
- Page 1 O O K T O P E N T I L A T I O N O O D S NSTALLATION NSTRUCTIONS...
- Page 2 ® WOLF is a registered trademark of Wolf Appliance Company, LLC As you follow these instructions, you will notice WARNING and CAUTION symbols. This blocked information is important for the safe and efficient installation of Wolf equip- ment. There are two types of potential hazards that may occur during installation.
- Page 3 Wolf electric and gas cooktops and integrated modules. They are NOT recommended for use with Wolf dual fuel ranges, gas ranges and rangetops. Any violation of this application may void your warranty for one or both products.
- Page 4 C O O K TO P V E N T I L AT I O N H O O D S 18" (457) " (775 - 1232) OVERALL HEIGHT 30" (762) OVERALL WIDTH Model CTWH30 Wall Hood 18" (457) " (830 - 1292) OVERALL HEIGHT " (900) OVERALL WIDTH Model CTWH36 Wall Hood 18"...
- Page 5 H O O D P L A C E M E N T Wolf cooktop wall and island hoods come with a telescopic chimney flue that allows you to reach a ceiling height of 8' (2.4 m) to 9' (2.7 m) with a finished look.
- Page 6 To reduce the risk of fire and electric shock, install this ventilation hood only with a Wolf blower. Blower part numbers 801640, 801641, 801642, 801643, 801644, 801645 and 804701. Dimensions in parentheses are in millimeters unless otherwise specified.
- Page 7 I N S TA L L A T I O N E L E C T R I C A L R E Q U I R E M E N T S Wolf cooktop wall hoods require a separate, grounded 110/120 V AC, 60 Hz power supply.
- Page 8 W O L F C O O K TO P V E N T I L AT I O N H O O D S WA L L H O O D E L E C T R I C A L C O N N E C T I O N S IMPORTANT NOTE: This ventilation hood must be properly grounded.
- Page 9 To reduce the risk of fire and electric shock, install this ventilation hood only with a Wolf blower. Blower part numbers 801640, 801641, 801642, 801643, 801644, 801645 and 804701. Dimensions in parentheses are in millimeters unless otherwise specified.
- Page 10 I S L A N D H O O D E L E C T R I C A L R E Q U I R E M E N T S The Wolf cooktop island hood requires a separate, grounded 110/120 V AC, 60 Hz power supply.
- Page 11 I N S TA L L AT I O N I N S T R U C T I O N S I S L A N D H O O D I N S TA L L A T I O N M O U N T H O O D T O S U P P O R T F R A M E Mount the hood to the support frame by aligning the four weld screws on the hood to...
- Page 12 Wolf dealer. A C C E S S O R I E S IMPORTANT NOTE: Blower options vary with the cooking surface. Use only a Wolf blower Optional acces- with the cooktop ventilation hood. sories are available...
- Page 13 Locate the remote blower so that the length of the duct run and number of elbows and transitions are kept to a minimum. Wolf recommends the maximum linear duct run be no greater than 50' (15 m). If possible, the blower should be located between wall studs or roof rafters.
- Page 14 W O L F C O O K TO P V E N T I L AT I O N H O O D S R E M OT E B L O W E R S R E M O T E B L O W E R W I R I N G Remove the cover from the front of the electrical box.
- Page 15 Neither this book nor any information or images contained herein may be copied or used in whole or in part without the express written permission of Wolf Appliance Company, LLC, an affiliate of Sub-Zero Freezer Company, Inc. ©Wolf Appliance Company, LLC all rights reserved.
- Page 16 W O L F A P P L I A N C E C O M PA N Y, L L C P. O. B OX 4 4 8 4 8 M A D I S O N , W I 5 3 7 4 4 8 0 0 - 3 3 2 - 9 5 1 3 W O L FA P P L I A N C E .
