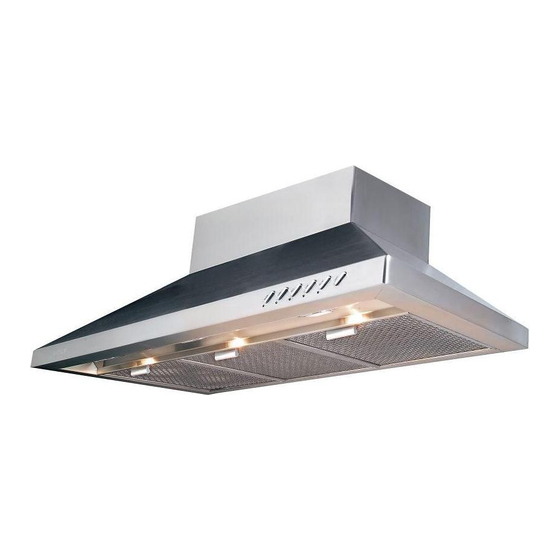

Wolf CTWH30 Installation Manual
Cooktop chimney ventilation hoods
Hide thumbs
Also See for CTWH30:
- Use & care information manual (16 pages) ,
- Installation instructions manual (16 pages) ,
- Datasheet (11 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wolf CTWH30
Summary of Contents for Wolf CTWH30
- Page 1 INSTALLATION GUIDE Cooktop Chimney Ventilation Hoods...
-
Page 2: Table Of Contents
Contents Important Note Wolf Cooktop Chimney Ventilation Hoods ..3 To ensure the safe and efficient use of Wolf equipment, please take note of the following types of highlighted Cooktop Chimney Hood Specifications ... . 4 information throughout this guide: Cooktop Chimney Hood Installation . -
Page 3: Wolf Cooktop Chimney Ventilation Hoods
Cooktop Chimney Hood Installation IMPORTANT NOTE: This installation must be completed IMPORTANT NOTE: Wolf cooktop chimney hoods are by a qualified installer or Wolf factory certified service. recommended for use with Wolf induction, electric and gas cooktops and integrated modules. For ranges and Read this entire installation guide prior to installation and rangetops, a Wolf pro ventilation hood is recommended. -
Page 4: Cooktop Chimney Hood Specifications
Cooktop Chimney Hood Specifications Overall Dimensions 30" WALL HOOD (762) 18" 12" (457) (305) " (114) " (775) " " (1232) (486) 6" (152) " (175) 30" 21" " (762) (533) (40) 36" WALL HOOD (914) 18" 12" (457) (305) "... - Page 5 Cooktop Chimney Hood Specifications wolfappliance.com/specs Hood Placement Wolf cooktop chimney wall and island hoods come with a Cooktop Chimney Hoods telescopic chimney flue that allows you to reach a ceiling FLUE EXTENSION MINIMUM MAXIMUM height of 8' to 9' with a finished look. A flue (2.4 m)
- Page 6 Refer to ventilation recommenda- tions in the Wolf design guide. These hoods have an • Wolf cooktop chimney hoods are shipped without the 8"...
- Page 7 Cooktop Chimney Hood Specifications wolfappliance.com/specs Electrical Requirements Wolf cooktop chimney hoods require a separate, grounded 120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker. Locate the electrical supply within the shaded area shown in the installation illustration for your specific model on the following pages.
- Page 8 Cooktop Chimney Hood Specifications Installation CHIMNEY WALL HOODS 9" (229) " " (775) TO (1232) LOCATION OF ELECTRICAL 6" " " (830) TO (1292) (152) HEIGHT OF HOOD 4" (102) 21" 30" " (533) (762) OR (900) WIDTH OF HOOD DEPTH OF HOOD 24"...
- Page 9 Cooktop Chimney Hood Specifications wolfappliance.com/specs Installation CHIMNEY ISLAND HOOD LOCATION OF ELECTRICAL THROUGH TOP OF HOOD " " (853) TO (1195) HEIGHT OF HOOD 27" 42" (686) (1067) WIDTH OF HOOD DEPTH OF HOOD 24" 30" (610) TO (762) TO COUNTERTOP SIDE VIEW FRONT VIEW...
-
Page 10: Cooktop Chimney Hood Installation
. There is a possibility of noise issues, if a (15 m) remote blower is used with a short duct run. Wolf recommends installing a backdraft damper in all installations. A backdraft damper is included with the hood. It is built into the transition from the hood to the duct run. - Page 11 Cooktop Chimney Hood Installation wolfappliance.com/specs Install Ductwork CHIMNEY WALL HOODS CHIMNEY ISLAND HOOD DUCTWORK INSTALLATION DUCTWORK INSTALLATION THROUGH ROOF THROUGH ROOF DUCTWORK INSTALLATION " (775) TO DUCTWORK THROUGH " INSTALLATION (1232) EAVE— THROUGH INTERNAL WALL " " (829) TO (851) BLOWER "...
- Page 12 Secure the hood with additional mounting screws. INSTALL MOUNTING BRACKETS IMPORTANT NOTE: Wolf recommends that the bottom of the ventilation hood be installed 24" to 30" (610) (762) above the countertop.
- Page 13 Cooktop Chimney Hood Installation wolfappliance.com/specs Wall Hood Installation WIRING CONNECTIONS ATTACH CHIMNEY FLUE Electrical connection at the hood: Use the screws and wall anchors provided to secure the upper brackets for the chimney flue to the ceiling. Position 1) Remove the cover from the rear electrical box. Remove the upper brackets based on the dimensions of the the electrical box knockout that faces the hood's chimney flue.
- Page 14 CONNECT CHIMNEY FLUE INSTALL SUPPORT SYSTEM Secure the upper chimney flue section to the upper IMPORTANT NOTE: Wolf recommends that the bottom support frame with the screws provided. Refer to the of the ventilation hood be installed 24" to 30"...
- Page 15 Cooktop Chimney Hood Installation wolfappliance.com/specs Island Hood Installation Internal Blower WIRING CONNECTIONS INTERNAL BLOWER INSTALLATION Electrical connection at the hood: IMPORTANT NOTE: Refer to installation instructions provided with the internal blower assembly for additional 1) Remove the cover from the rear electrical box. Remove mounting and wiring instructions.
- Page 16 Refer to the illustrations below for overall dimensions of Wolf in-line and remote blowers. Installation instructions Locate the blower so that the length of the duct run and shipped with each Wolf ventilation product provide number of elbows and transitions are kept to a minimum.
- Page 17 Cooktop Chimney Hood Installation wolfappliance.com/specs In-Line and Remote Blowers IN-LINE OR REMOTE BLOWER WIRING IMPORTANT NOTE: Refer to installation instructions provided with the in-line or remote blower assembly for additional mounting and wiring instructions. Blower connection at the hood: 1) Remove the cover from the front of the electrical box. Remove the electrical box knockout that faces the hood’s discharge collar.
-
Page 18: Service Information
• Verify that electrical power is being supplied to the ventilation hood. For the name and number of Wolf factory certified service nearest you, check the contact & support section of our • Check electrical connections to ensure that the website, wolfappliance.com or call Wolf customer care at... - Page 19 Wolf Appliance, Inc. ©Wolf Appliance, Inc. all rights reserved. Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
- Page 20 WOLF APPLIANCE, INC. P. O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820 820619 REV-A 11/ 2011...
