Planning Information

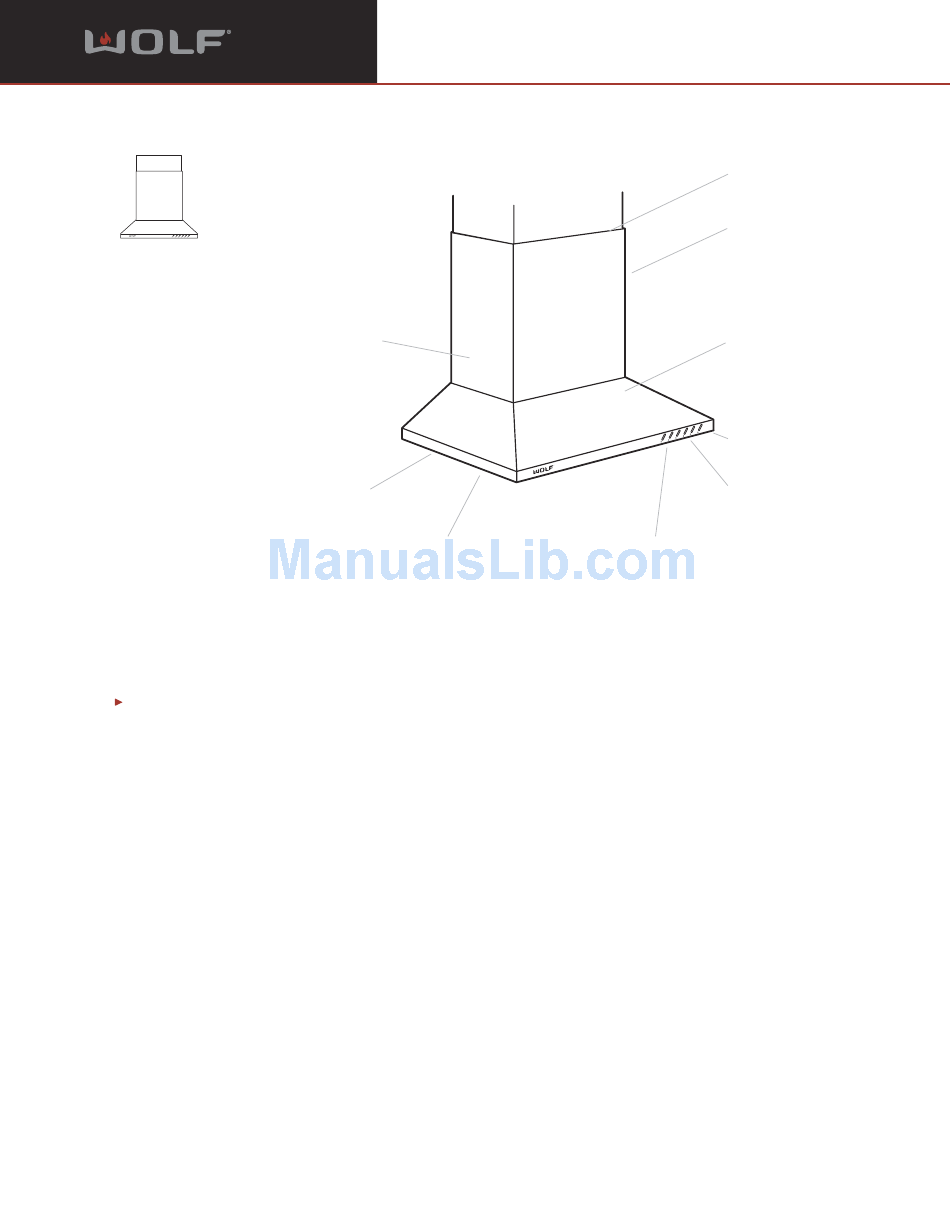

Model CTWH30 Cooktop Wall Hood
Model CTWH30
Transition with
backdraft damper
Halogen lighting
Wolf cooktop wall ventilation hoods
are available in the classic stainless steel
finish. Cooktop wall hoods are sold as a
shell only, internal in-line and remote
blower options are available.
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
Rating plate
location
P
owerful multi-speed blowers draw odors and smoke
into the five-layer mesh filter. Filters remove easily for
cleaning. The sculpted classic stainless steel shape not
only provides the power you expect from Wolf, but also
the beauty you have come to appreciate as well.
This wall mount cooktop hood is 30" (762) wide
by 21" (533) deep. It has a telescopic chimney flue
that allows you to reach a ceiling height of 8' (2.4 m)
to 9' (2.7 m) with a finished look. A flue extension to
accommodate 10' (3 m) ceilings is available as a sales
accessory.
Wolf cooktop wall hoods are recommended for use
with Wolf electric and gas cooktops and integrated
modules. For Wolf dual fuel ranges, gas ranges, sealed
burner rangetops and gas rangetops, a Pro ventilation
hood should be used.
Classic stainless
steel finish
Seamless
Construction
Aluminum mesh
filter
Front mounted
controls
Three-speed
blower control
LED indicators
1
