Wolf CTWH30 Specifications

Model CTWH30
Cooktop Wall Hood
Powerful multi-speed blowers draw
odors and smoke into the five-layer
mesh filter. Filters remove easily for
cleaning. The sculpted classic stainless
steel hood not only provides the power
you expect from Wolf, but also the
beauty you have come to appreciate as
well. This wall mount cooktop ventilation
hood has a telescopic chimney flue
that adjusts to reach the ceiling with
a finished look.
Specifications
Exterior Finish Classic Stainless Steel
Bottom of Hood to Countertop
Duct Size
Discharge
Transition 8" to 10" round
Electrical Requirements
60 Hz, 15 amp dedicated circuit
Product Notes
Cooktop wall ventilation hoods are available in
the classic stainless steel finish. They are sold
as a shell only, internal, in-line and remote
blower options are available.
The telescopic chimney flue fits 8' to 9'
ceilings and a flue extension to accommodate
10' ceilings is available as a sales accessory.
A transition with backdraft damper is included
with the hood.
IMPORTANT NOTE: Wolf cooktop wall hoods
are recommended for use with Wolf electric
and gas cooktops and integrated modules.
For Wolf dual fuel ranges, gas ranges, sealed
burner rangetops and gas rangetops, a Pro
ventilation hood should be used.
Front-Mounted Controls Halogen Lighting
Model CTWH30 shown above Model CT30E/S
electric cooktop and Model SO30F/S built-in oven.
Model Options
Overall Dimensions
24" to 30" Overall Height (chimney collapsed / full extension)
8" round
Shipping Weight (lbs)
Vertical
Features
110/120 V AC
Heavy-duty stainless steel seamless
construction with classic finish
Front mounted controls with LED indicator
Three-speed blower control
Filter clean timer lets you know when the
filter needs cleaning
Delay-off mode automatically turns unit off
Sealed halogen lighting with three settings
Stainless steel filter cover with dishwasher-
safe aluminum mesh filter
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed

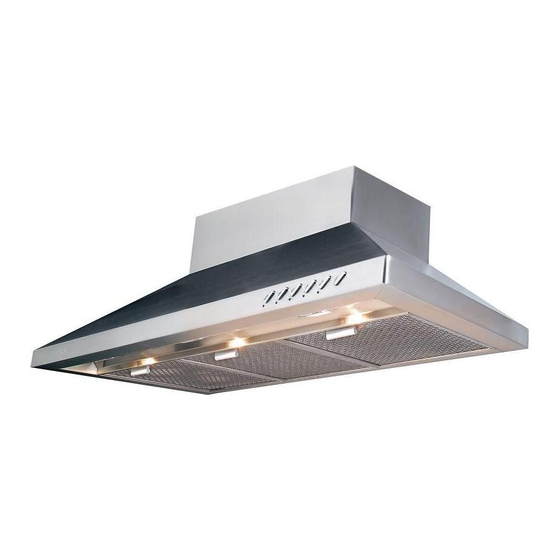

Model CTWH30 Cooktop Wall Hood
CTWH30
30" W x 21" D
30
Blower Options
450 CFM Internal Blower
600 or 1100 CFM In-Line Blower
600, 900, 1200 or 1500 CFM Remote
Blower
Cooktop wall hoods are sold as a shell only, an
internal, in-line or remote blower will be required.
For additional information on blowers, visit our
website, wolfappliance.com.
Accessories
36" classic stainless steel wall shield
Flue extension to accommodate 10'
ceilings
8" to 10" round transition
Accessories are available through your Wolf dealer.
To obtain local dealer information, visit the Locator
section of our website, wolfappliance.com.
1 1
/ " / 48 / "
2 2
85
