Summary of Contents for BOERPLAY BBIE906.U

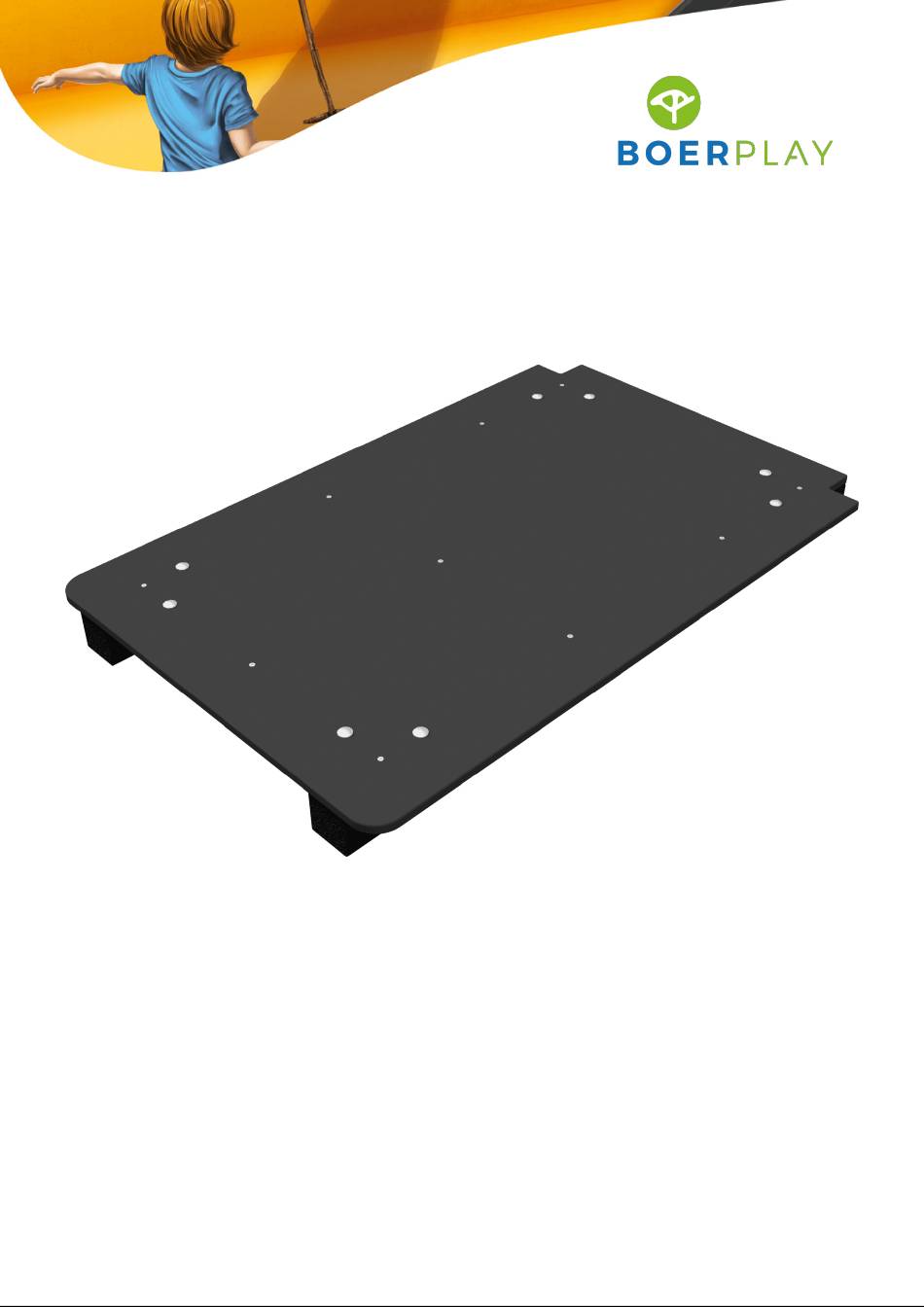

  • Page 1 Platform without water pump BBIE906.U...
  • Page 2: Installation Instructions

    Il est conseillé de ne pas orienter de FR - Important ! l’équipement avec toboggans vers le sud. Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. BBI 906 U © Copyright BOERplay 7-4-2021 Revision:...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,84 m 0,00 m 0,10 m 0,00 m BBI 906 U © Copyright BOERplay 7-4-2021 Revision:...
  • Page 4 , met uitzondering van de TOE.BBI.9xx toestellen Hindernissfreie raum , außer bei den Geräten TOE.BBI.9xx Zona libre de obstáculos , excepto por los dispositivos TOE.BBI.9xx Zone libre d’obstacle , sauf pour les appareils TOE.BBI.9xx BBI 906 U © Copyright BOERplay 7-4-2021 Revision:...
  • Page 5 Niveau au sol Depends on groundwater level NL Hangt af van grondwater niveau DE Abhängig vom grundwasserstand ES Depende del nivel de las aguas subterráneas FR Dépend du niveau des eaux souterraines BBI 906 U © Copyright BOERplay 7-4-2021 Revision:...
  • Page 6: Assembly Manual

    - order of assembly Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage - assembly manual - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD.BBI.916 BBI 906 U © Copyright BOERplay 7-4-2021 Revision:...
  • Page 7 Herramientas requeridas Outils nécessaires TX-25 TX-40 No. 10 (2x) No. 13 (2x) No. 17 (2x) TX-25 12 Nm No. 10 No. 13 No. 17 Ø3 mm Ø5 mm Ø11 mm Ø12 mm BBI 906 U © Copyright BOERplay 7-4-2021 Revision:...
  • Page 8 1 / 2 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage assembly manual module MOD.BBI.916 2 / 2 BBI 906 U © Copyright BOERplay 7-4-2021 Revision:...
  • Page 9 LOGBOOK Type indication Figura Play Article number BBIE906.U Product Name Platform without water pump Maximum fall height 0,1 m Construction year 2024 Certificate 066755 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 10 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
  • Page 11: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 12 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 14 A ( 1 : 5 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 50 - RVS A2-70 Borgmoer M10 - RVS A2-70 Slotbout M10 x 120 - RVS A2-70 SLUITRING Donut zwart Beschermdop M10-M12 Beschermdop M10-M12 Dop zwart Voetplaat 100 x 100...
