3 Display wiring and installation

This section will take care of describing the display installation and connections.

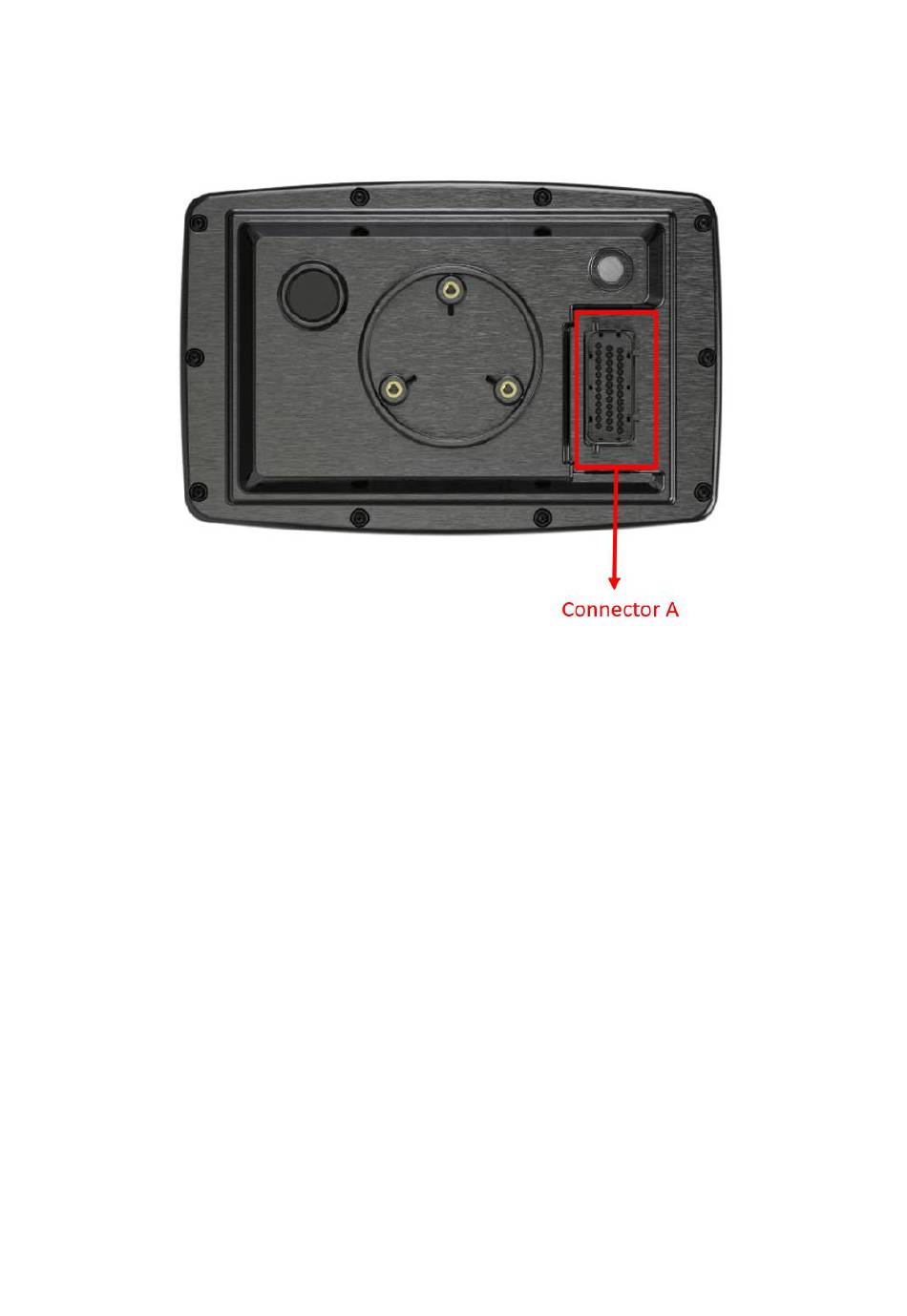

The picture below should be taken as reference for the naming of the available terminals and connectors present on
any DMC Display.

3.1 Light wiring

The DMC Display may be supplied with 12V as a stand-alone unit or pre-wired onto a base-plate with contactors etc.
Control wiring connections should be made using 0.56mm² (AWG#20) or equivalent stranded wire. The correct pressure
release crimping tools MUST be used for long term connection reliability.
The DMC Displays and equipped with a 36-way J.S.T connector used to carry the power and input/output signal. The
plug housing is an J.S.T 39ZRO-B-1A and the contactor pins are J.S.T SZRO-A021T-MO.64. The J.S.T. connector will accept
wires within the range 1.6 to 1.7 mm.
The J.S.T. connector holds the functions for interfacing with the vehicle and the CAN communication. The signals,
associated to the pins of the connector, are digital inputs, analogue inputs, communication inputs and digital outputs
In this section the functions and features associated to each pin of the J.S.T. 36-way connector, used for the Display light
wiring will be described in details.
