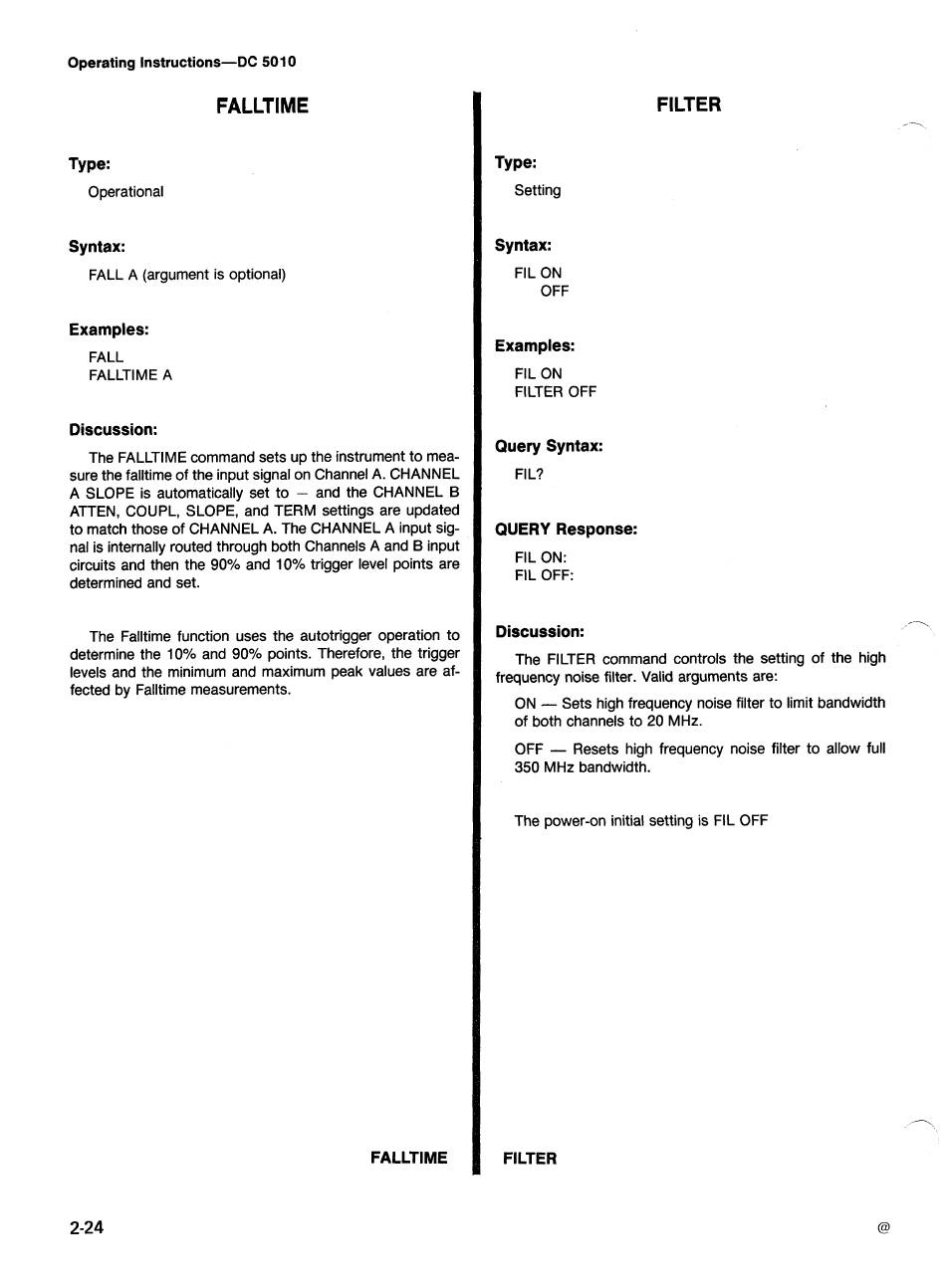

Operating Instructions-DC 501 0
FALLTIME
Type:
Operational
Syntax:
FALL A (argument is optional)
Examples:
FALL
FALLTIME A
Discussion:
The FALLTIME command sets up the instrument to mea-
sure the falltime of the input signal on Channel
A.
CHANNEL
A SLOPE is automatically set to
-
and the CHANNEL B
ATTEN, COUPL, SLOPE, and TERM settings are updated
to match those of CHANNEL A. The CHANNEL A input sig-
nal is internally routed through both Channels A and B input
circuits and then the 90% and 10% trigger level points are
determined and set.
The Falltime function uses the autotrigger operation to
determine the 10% and 90% points. Therefore, the trigger
levels and the minimum and maximum peak values are af-
fected by Falltime measurements.
FILTER
Type:
Setting
Syntax:
FIL ON
OFF
Examples:
FIL ON
FILTER OFF
Query Syntax:
FI L?
QUERY Response:
FIL ON:
FIL OFF:
Discussion:
- 7
The FILTER command controls the setting of the high
frequency noise filter. Valid arguments are:
ON
-
Sets high frequency noise filter to limit bandwidth
of both channels to 20 MHz.
OFF
-
Resets high frequency noise filter to allow full
350 MHz bandwidth.
The power-on initial setting is FIL OFF
FILTER
