Calibration-DC 50
1
0

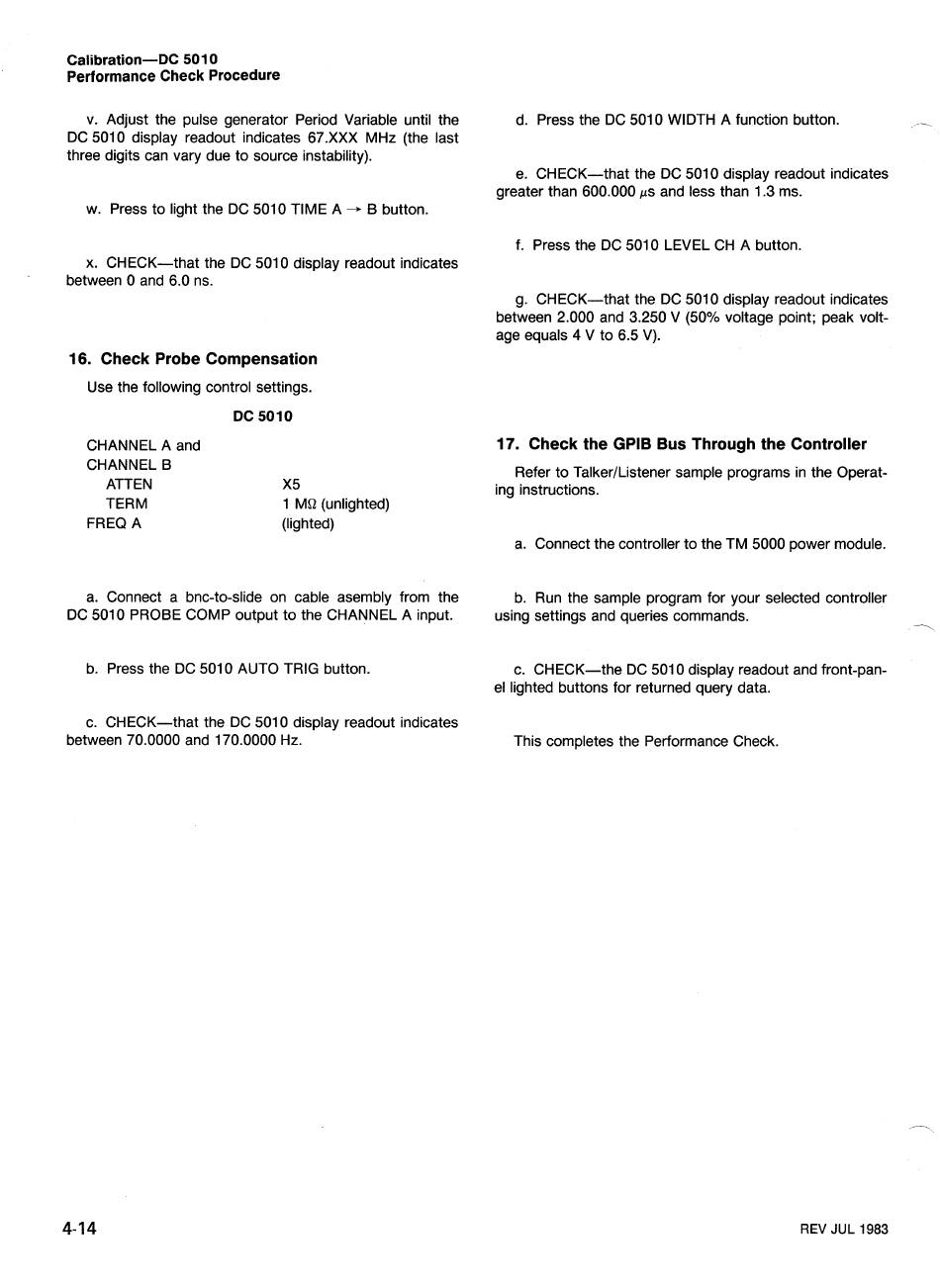

Performance Check Procedure
v. Adjust the pulse generator Period Variable until the
d. Press the DC 5010 WIDTH A function button.
DC 5010 display readout indicates 67.XXX MHz (the last
three digits can vary due to source instability).
e. CHECK-that the DC 501 0 display readout indicates
greater than 600.000 ps and less than 1.3 ms.
w. Press to light the DC 5010 TIME A
-
B button.
f. Press the DC 5010 LEVEL CH A button.
x. CHECK-that the DC 501 0 display readout indicates
between 0 and 6.0 ns.
g. CHECK-that the DC 5010 display readout indicates
between 2.000 and 3.250 V (50% voltage point; peak volt-
age equals 4 V to 6.5 V).
16. Check Probe Compensation
Use the following control settings.
CHANNEL A and
CHANNEL B
ATTEN
X5
TERM 1 Mil (unlighted)
FREQ A (lighted)
17. Check the GPlB Bus Through the Controller
Refer to TalkerIListener sample programs in the Operat-
ing instructions.
a. Connect the controller to the TM 5000 power module.
a. Connect a bnc-to-slide on cable asembly from the
b. Run the sample program for your selected controller
DC 501 0 PROBE COMP output to the CHANNEL A input.
using settings and queries commands.
b. Press the DC 501 0 AUTO TRIG button.
c. CHECK-the DC 501 0 display readout and front-pan-
el lighted buttons for returned query data.
c. CHECK-that the DC 5010 display readout indicates
between 70.0000 and 170.0000 Hz.
This completes the Performance Check.
REV JUL 1983
