Processor related signatures
SETUP CONDITIONS
Internal Signatures (Digital Board)
SA CLOCK
1
TP 1411 (Digital Board)
SASTART
l-1
I
SA STOP
1
TP 1410 (Digital Board)
SA GND
TP 1420 (Digital Board)
NOTE
Power up DC 50 10 while holding in CH A ATTEN
button to get signatures.
Address switch S1210 set to 20:

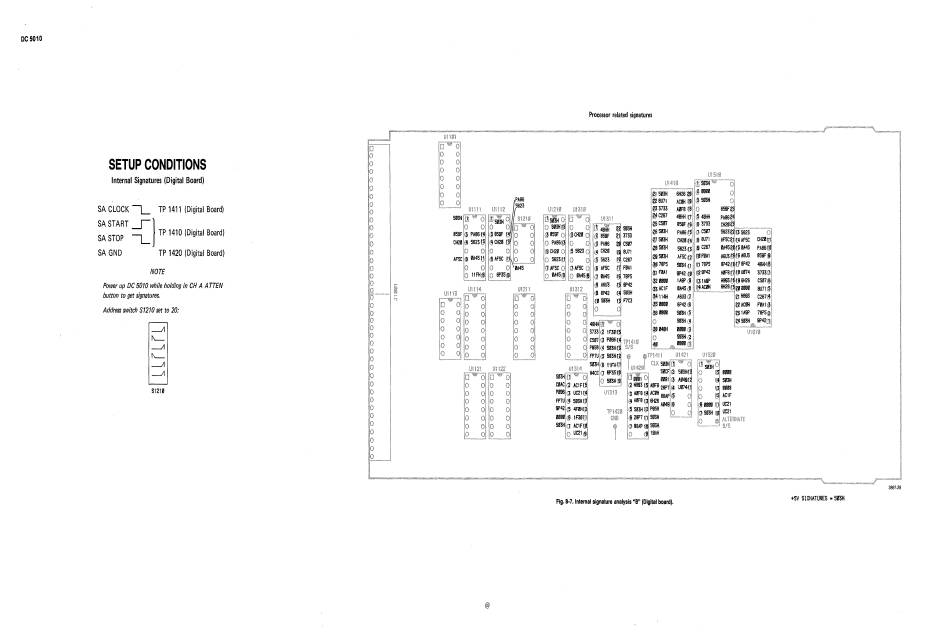

Fig. 8-7. Internal signature analysis
"B"
(Digital board).
3897-28
+SV
SIGNATURES
m
503H
