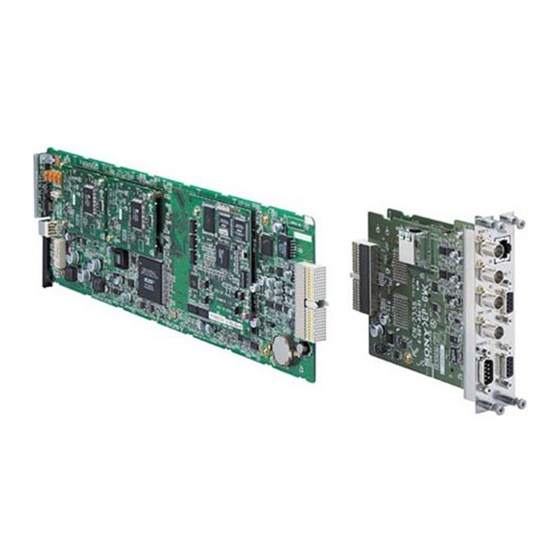

- Page 1 ROUTING SWITCHER CONTROLLER HKSP-R80 ROUTING SWITCHER BACKUP CPU HKSP-R81 MAINTENANCE MANUAL 1st Edition (Revised 1) Serial No. 10001 and Higher (HKSP-R80) Serial No. 20001 and Higher (HKSP-R81)
- Page 2 Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres. Pour toute réparation faire appel à une personne compétente uniquement. HKSP-R80...
- Page 3 When using a LAN cable: Udskiftning må kun ske med batteri For safety,do not connect to the connector for af samme fabrikat og type. peripheral device wiring that might have excessive Levér det brugte batteri tilbage til leverandøren. voltage. 1 (P) HKSP-R80...
- Page 4 Gerät abschaltet und signalisiert “Batterie leer” oder nach längerer Gebrauchsdauer der Batterien “nicht mehr einwandfrei funktioniert”. Um sicherzugehen, kleben Sie die Batteriepole z.B. mit einem Klebestreifen ab oder geben Sie die Batterien einzeln in einen Plastikbeutel. 2 (P) HKSP-R80...
-
Page 5: Table Of Contents
Writing the MAC Address ..............1-14 (E) 1-9. Upgrading the PLD Version ..............1-15 (E) 1-10. Upgrading Software Version ............... 1-16 (E) 1-11. Confirmation of Version ..............1-18 (E) 2. Spare Parts 3. Semiconductor Pin Assignments 4. Overall Block Diagram 1 (E) HKSP-R80... - Page 6 LE-264 ....................5-25 6. Board Layouts IF-844 ....................6-1 IF-1160 ....................6-1 LE-264 ....................6-1 CN-2334 SUFFIX: -11 ................6-2 SUFFIX: -12 ..............6-2 (a) CN-2335 SUFFIX: -11 ................6-3 SUFFIX: -12 ..............6-3 (a) CPU-355 ....................6-4 2 (E) HKSP-R80...
-
Page 7: Manual Structure
Manual Structure Purpose of this manual This manual is the maintenance manual of Routing Switcher Controller HKSP-R80 and Routing Switcher Backup CPU HKSP-R81. This manual is intended for use by trained system and service engineers, and describes the information for maintenance and detailed service. -
Page 8: Contents
. IBM and AT are registered trademarks of International Business Corporation. . Ethernet is a registered trademark of Xerox Corporation. Other system names, product names, and company names appearing in this manual are trademarks or registered trademarks of their respective holders. 4 (E) HKSP-R80... -
Page 9: Service Overview
Be sure to use the specified component in this manual. 2. Standardization of Parts Some repair parts supplied by Sony differ from those The fuses and IC links are mounted on the boards below. used for the unit. These are because of parts common- Be sure to replace with the specified fuse and IC link as ality and improvement. -
Page 10: Error Indication
When there is no error, “R80” is displayed on the status indicator. On similar occasions, when the BZR- IF810 is installed in the HKSP-R80, “810” is displayed. (The STATUS indicator lights in green.) For the error message displayed on the personal computer (terminal emulator) connected to the REMOTE3 connector or DATA connector, refer to the system setup manual supplied with the HKSP- R80. -
Page 11: Replacement Of Board
IF-844 board or IF-1160 board mounted together on the CPU-355 board. . When using the HKSP-R80 with backup operation, 4. Attach a new IF-844 board or a new IF-1160 board in avoid using an IF-1160 board and an IF-844 board the reverse order of steps 1 to 3. -
Page 12: Rear Side
264 board from the connector (CN801) on the CPU- 355 board. Shield plate (R80) Screws PTTWH PTTWH 2.6x5 Connector assembly CPU-355 board Screws CN801 The illustration indicates PFV-SP3300. LE-264 board 8. Install a new CPU-355 board in the reverse order of steps 1 to 7. 1-4 (E) HKSP-R80... - Page 13 CN-2334 board 5. Install a new CN-2334 board or CN-2335 board in the reverse order of steps 1 to 4. When installing the board, make sure to correctly align connector to prevent the connector pins from bending. 1-5 (E) HKSP-R80...
-
Page 14: Replacement Of Lithium Battery
Upload the data (Refer to Section 9-3 of the installation manual.) Replace the battery Download of data (Refer to Section 9-4 of the installation manual.) Set the clock (Refer to Section 2-4 of the system setup manual.) 1-6 (E) HKSP-R80... -
Page 15: Operation After Replacement Of Ic
. Service use IC (29LV160-R80BOOTWR-V1.00) Mark Service use IC (Sony part number: 6-802-592-01) . 2nd Boot program data For obtaining the program data, contact your local Sony Sales Office/Service Center. U15 socket U15 socket Service use CPU-DK module 3. Remove a CPU-DK module from the CPU-355 board on which IC602 is replaced, then attach the service use CPU-DK module. -
Page 16: Ic603 To Ic605 (Cpu-355 Board)
IBM PC/AT-compatible machine with terminal software . Step 3 of “Preparation” in Section 1-10, the procedure to installed set the HKSP-R80 as a primary station, is not required. . Ethernet cable . In step 4 of “Preparation” in Section 1-10, in the . -
Page 17: Eeprom
(4) Turn on the power of the PFV-SP series. (5) Start the terminal software of the personal computer. (6) Set the same IP address as the HKSP-R80 to the TCP/ IP of the terminal software and set the port number to 1001. - Page 18 CPU-355 When replacing IC807 on the CPU-355 board Installed board Connector side Front side CN-2334 CPU-355 in either slot CN-2335 * In the case that two CPU-355 boards are installed for backup operation, remove either CPU-355 board. 1-10 (E) HKSP-R80...
- Page 19 Enter as shown in the left. Function 16Byte (ROUTER CTRL Model Name 16Byte (HKSP-R80 Enter as shown in the left. (Enter "HKSP-R80" also to R81) Model Spec 8Byte (SYM Enter as shown in the left. Enter as shown in the left. Board Name...
-
Page 20: Ic201 (Cpu-355 Board)
IBM PC/AT-compatible machine with terminal software installed . RS-232C cable Procedure 1. Turn on the power of the personal computer. 2. Connect the REMOTE3 connector on the connector panel to the personal computer using the RS- 232C cable. 1-12 (E) HKSP-R80... - Page 21 In case that the F4 key is accidentally pressed, rewrite the data to the correct information according to the procedure in “1-6-3. EEPROM”. Example of CPU-355 board information I2C EDIT MODE CPU-355 I2C EEPROM DATA Vendor Name 16Byte (Sony Corporation) Product Name 40Byte (ROUTING SWITCHER CONTROLLER Function 16Byte (ROUTER CTRL...
-
Page 22: Writing The Mac Address
IBM PC/AT-compatible machine with terminal software installed . 3-pin to 9-pin connector tool (Sony part number: 1-791-786-11) The 3-pin to 9-pin connector tool can also be prepared by connecting the ILG 3-pin connector to the D- sub 9-pin connector as shown below. -
Page 23: Upgrading The Pld Version
PLD version, write the data and confirm that is correctly written. For details of the operation, refer to the Operation Manual of the PLD Download Tool. 2. Upon completion of downloading, turn off the main power of the PFV-SP series once. 1-15 (E) HKSP-R80... -
Page 24: Upgrading Software Version
When connecting with Ethernet : RS-232C 2300 (38 min.) 2380 Set the same IP address as the HKSP-R80 to TCP/IP of the terminal software. Set the same port number S-BUS control software displayed on the terminal screen, “TERM PORT”. Default setting is 1001. - Page 25 (Refer to “Example of initialization” shown below.) When connecting with RS-232C, initialization is not required. 9. When using the HKSP-R80 with backup operation, repeat steps 4 to 8 and also upgrade the backup CPU- 355 board (in the slot with larger number).
-
Page 26: Confirmation Of Version
S-BUS A and B (S-BUS control software) in “V:DISPLAY UNIT STATUS”. For the procedure of indicating “V:DISPLAY UNIT STATUS” menu of the secondary station, refer to the system setup manual supplied with the HKSP-R80. SYS (main application software) version... -
Page 27: Spare Parts
1-535-757-11 s CHIP, CHECKER (CONNECTOR) 1-535-757-11 s CHIP, CHECKER (CONNECTOR) F101 1-533-998-11 s FUSE,CHIP 1A/125V (6125) IC101 8-759-485-63 s IC MAX1626ESA-TE2 IC102 8-759-678-06 s IC CAT24WC02JI-TE13 IC202 8-759-491-46 s IC TC74VHCT04AFT (EL) IC203 8-759-523-81 s IC TC74VHC08FT(EL) IC205 8-759-644-10 s IC MAX3491CSD-TG068 HKSP-R80... - Page 28 1-218-668-11 s RESISTOR,CHIP 100 1/16W (1608) R225 1-220-221-11 s RESISTOR CHIP 100 1/2W (4532) R230 1-220-221-11 s RESISTOR CHIP 100 1/2W (4532) R234 1-220-221-11 s RESISTOR CHIP 100 1/2W (4532) R236 1-220-221-11 s RESISTOR CHIP 100 1/2W (4532) R245 1-218-716-11 s RESISTOR,CHIP 10K 1/16W(1608) HKSP-R80...
- Page 29 1-535-757-21 s CHIP, CHECKER R104 1-245-764-11 s RES, METAL FILM(SMD) 100(1608) 1-535-757-21 s CHIP, CHECKER R105 1-245-764-11 s RES, METAL FILM(SMD) 100(1608) 1-535-757-21 s CHIP, CHECKER R106 1-245-764-11 s RES, METAL FILM(SMD) 100(1608) R107 1-245-896-11 s RES, METAL FILM(SMD)100K(1608) HKSP-R80...
- Page 30 1-245-880-11 s RES, METAL FILM(SMD) 22K(1608) R456 1-245-880-11 s RES, METAL FILM(SMD) 22K(1608) R457 1-245-880-11 s RES, METAL FILM(SMD) 22K(1608) R458 1-245-880-11 s RES, METAL FILM(SMD) 22K(1608) R459 1-245-880-11 s RES, METAL FILM(SMD) 22K(1608) R460 1-216-864-91 s CONDUCTOR, CHIP (1608) HKSP-R80...
- Page 31 1-218-672-11 s RESISTOR,CHIP 150 1/16W(1608) 1-535-757-11 s CHIP, CHECKER (CONNECTOR) R204 1-218-668-11 s RESISTOR,CHIP 100 1/16W (1608) 1-535-757-11 s CHIP, CHECKER (CONNECTOR) R205 1-218-668-11 s RESISTOR,CHIP 100 1/16W (1608) R206 1-218-672-11 s RESISTOR,CHIP 150 1/16W(1608) 1-535-757-11 s CHIP, CHECKER (CONNECTOR) HKSP-R80...
- Page 32 1-218-720-11 s RESISTOR,CHIP 15K 1/16W(1608) R260 1-218-694-11 s RESISTOR,CHIP 1.2K1/16W(1608) R261 1-218-716-11 s RESISTOR,CHIP 10K 1/16W(1608) R262 1-218-652-11 s RESISTOR,CHIP 22 1/16W (1608) R263 1-218-716-11 s RESISTOR,CHIP 10K 1/16W(1608) R264 1-218-740-11 s RESISTOR,CHIP 100K 1/16W(1608) R265 1-218-740-11 s RESISTOR,CHIP 100K 1/16W(1608) HKSP-R80...
- Page 33 6-551-042-01 s TR RN4905 D201 8-719-104-22 s DIODE 1SS123-T1 Q204 8-729-230-61 s TRANSISTOR 2SA1586YG-TE85L D202 8-719-104-22 s DIODE 1SS123-T1 Q205 8-729-142-11 s TRANSISTOR 2SA1226-T1E3E4 D203 8-719-104-22 s DIODE 1SS123-T1 D204 8-719-016-87 s DIODE 02DZ2.2-TPH3 Q206 8-729-230-61 s TRANSISTOR 2SA1586YG-TE85L HKSP-R80...
- Page 34 1-216-864-91 s CONDUCTOR, CHIP (1608) R233 1-245-852-11 s RES, METAL FILM(SMD) 10K(1608) R455 1-245-880-11 s RES, METAL FILM(SMD) 22K(1608) R456 1-245-880-11 s RES, METAL FILM(SMD) 22K(1608) R234 1-245-880-11 s RES, METAL FILM(SMD) 22K(1608) R457 1-245-880-11 s RES, METAL FILM(SMD) 22K(1608) HKSP-R80...
- Page 35 7-682-544-04 s SCREW +B3X3 4pcs 7-682-946-09 s SCREW +PSW 3X5 TP101 1-535-757-21 s CHIP, CHECKER TP102 1-535-757-21 s CHIP, CHECKER TP103 1-535-757-21 s CHIP, CHECKER TP201 1-535-757-21 s CHIP, CHECKER TP202 1-535-757-21 s CHIP, CHECKER TP203 1-535-757-21 s CHIP, CHECKER HKSP-R80...
- Page 36 1-162-927-11 s CAPACITOR,CERAMIC 100PF/50V CH C422 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C302 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP) C424 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C303 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C425 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C304 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF 2-10 HKSP-R80...
- Page 37 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C902 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C1220 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012) C903 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C1221 1-162-964-11 s CAPACITOR,CERAMIC 1000PF/50V B C904 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C1222 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF 2-11 HKSP-R80...
- Page 38 8-759-578-68 s IC SN74LVCC4245APWR D1210 8-719-064-52 s DIODE CL-191YG-CD-T IC410 8-759-578-68 s IC SN74LVCC4245APWR D1211 8-719-064-52 s DIODE CL-191YG-CD-T IC411 8-759-271-86 s IC TC7SH04FU IC501 6-700-108-01 s IC RV5C387A-EZ D1212 8-719-064-52 s DIODE CL-191YG-CD-T IC502 8-759-524-07 s IC TC74VHC138FT(EL) 2-12 HKSP-R80...
- Page 39 8-729-120-28 s TRANSISTOR 2SC1623-L5L6 R232 1-218-716-11 s RESISTOR,CHIP 10K 1/16W(1608) Q502 8-729-122-63 s TRANSISTOR 2SA1226-E4 R233 1-218-716-11 s RESISTOR,CHIP 10K 1/16W(1608) R235 1-218-652-11 s RESISTOR,CHIP 22 1/16W (1608) Q701 8-729-122-63 s TRANSISTOR 2SA1226-E4 R236 1-218-911-11 s RESISTOR,CHIP 470K 1/10W(1608) 2-13 HKSP-R80...
- Page 40 1-218-692-11 s RESISTOR,CHIP 1.0K 1/16W(1608) R1029 1-218-668-11 s RESISTOR,CHIP 100 1/16W (1608) R719 1-218-700-11 s RESISTOR,CHIP 2.2K 1/16W(1608) R1030 1-218-668-11 s RESISTOR,CHIP 100 1/16W (1608) R720 1-218-707-11 s RESISTOR,CHIP 4.3K 1/16W(1608) R1031 1-218-668-11 s RESISTOR,CHIP 100 1/16W (1608) 2-14 HKSP-R80...
- Page 41 1-233-575-11 s RES, CHIP NETWORK 22 R1220 1-218-740-11 s RESISTOR,CHIP 100K 1/16W(1608) RB212 1-233-575-11 s RES, CHIP NETWORK 22 R1221 1-218-740-11 s RESISTOR,CHIP 100K 1/16W(1608) RB213 1-233-575-11 s RES, CHIP NETWORK 22 R1222 1-218-644-11 s RESISTOR,CHIP 10 1/16W 2-15 HKSP-R80...
- Page 42 TP1207 1-535-757-11 s CHIP, CHECKER (CONNECTOR) RB905 1-233-665-11 s NETWORK, RES (8 GANG) 47K TP1208 1-535-757-11 s CHIP, CHECKER (CONNECTOR) RB906 1-233-412-11 s RESISTOR,CHIP NETWORK 1K RB907 1-233-576-11 s RESISTOR,CHIP NETWORK 100 TP1209 1-535-757-11 s CHIP, CHECKER (CONNECTOR) 2-16 HKSP-R80...
- Page 43 1-218-744-11 s RESISTOR,CHIP 150K 1/16W 1-218-660-91 s RESISTOR,CHIP 47 1/16W (1608) 1-218-676-11 s RESISTOR,CHIP 220 1/16W(1608) 1-218-700-11 s RESISTOR,CHIP 2.2K 1/16W(1608) 1-218-660-91 s RESISTOR,CHIP 47 1/16W (1608) 1-218-660-91 s RESISTOR,CHIP 47 1/16W (1608) 1-218-732-11 s RESISTOR,CHIP 47K 1/16W(1608) 2-17 HKSP-R80...
- Page 44 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C235 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C236 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C237 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C238 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 2-18 HKSP-R80...
- Page 45 1-208-959-81 s RES, CHIP 1M (1005) RB202 1-234-378-21 s RES, NETWORK 10K (1005X4) R114 1-208-943-81 s RES, CHIP 220K (1005) RB203 1-234-378-21 s RES, NETWORK 10K (1005X4) R115 1-208-895-81 s RES, CHIP 2.2K (1005) RB204 1-234-375-21 s RES, NETWORK 1K (1005X4) 2-19 HKSP-R80...
- Page 46 8-719-073-33 s DIODE CL-165HR/YG-D-T 8-719-073-33 s DIODE CL-165HR/YG-D-T 8-719-062-50 s LED SLG2016 -------------------- SUPPLIED ACCESSORIES -------------------- Ref. No. or Q'ty Part No. SP Description A-8345-623-A s CD-ROM ASSY 2pcs 1-695-542-11 o RESISTOR,CONNECTOR TERMINATION 1-764-805-11 o CONNECTOR, BNC TYPE 2-20 HKSP-R80...
- Page 47 In addition, for semiconductors with ID Nos., refer to the separate CD-ROM titled “Semiconductor Pin Assignments” (Sony Part No. 9-968-546-xx) that allows searching for parts by semiconductor type or ID No. The semiconductors in the manual or on the CD-ROM are listed by equivalent types.
- Page 48 TC7SH04FU ..............TC7S04F TC7SH04FU-TE85R ............TC7S04F TC7SH08FU(TE85R) ............TC7S08F TC7SH08FU-TE85R ............TC7S08F TC7WH04FU(TE12R) ............TC7W04F TC7WH14FK(TE85R) ........... TC7W14FU TC7WH74FU(TE12R) ........... TC7W74FU TD62083F ..............TD62083AP TD62083F(S,EL) ............TD62083AP TL062CPWR-12 ..............RC4558 TL16C752BPT ................3-3 TL712CPS ................ TL712CP TL712CPSR ..............TL712CP HKSP-R80...
- Page 49 LOGIC FIFO 64-BYTE CONTROL CONTROL SIGNALS STATUS RESET BLOCK STATUS SIGNALS RX BLOCK RECEIVER VOTE RECEIVER RXRDYA LOGIC LOGIC FIFO 64-BYTE CONTROL SIGNALS STATUS SIGNALS CTSB RTSB DSRB DTRB UART B INTB (SAME AS UART A BLOCK) TXRDYB RXRDYB HKSP-R80...
- Page 51 3V <-> 5V CTRL RS-232C RS-232C 5V <-> 3V CONVERT REF IN ADDRESS ADDRESS CONVERT FPGA HKSP-R80: Serial No. 10001 through 12418 BUFFER ERROR / WARNING BUS DATA DATA BUFFER HKSP-R81: Serial No. 20001 through 22216 CTRL CTRL REF IN...
- Page 53 Function Page CN-2334 SUFFIX: 11 Connector Board SUFFIX: 12 Connector Board 5-2 (a) CN-2335 SUFFIX: 11 Connector Board SUFFIX: 12 Connector Board 5-6 (a) CPU-355 CPU Board IF-844 Interface Board 5-22 IF-1160 Interface Board 5-23 LE-264 LED Board 5-25 HKSP-R80...
- Page 54 BKCPU422RXN C101 0.1uF IC101 RS422_ARX RS422_A_TRM1 RS422_A_TRM2 BKCPU_RTS BKCPU_CTS MAX1626ESA-TE2 RS422_BTX RS422_B_RTS RS422_B_M/S BKCPU_DTR BKCPU_DSR RS422_BRX RS422_B_TRM1 RS422_B_TRM2 DTEN AE_IN (NC) (NC) (NC) (NC) ACTEN +3.3V +3.3V CN-2334 (1/3) BOARD NO. 1-685-751-11 GND-S GND-S GND-T GND-T LOT NO. 291- HKSP-R80...
- Page 55 (6/7) C209 0.1uF CL208 TP209 TP210 TC74VHC04FT(EL) 0.1uF Q204 (2/2) GND1 GND2 R224 HN1C01FU-TE85R Q204 (1/2) R240 TC74VHC04FT(EL) R207 100k RS422_B_M/S HN1C01FU-TE85R RS422_B_RTS R244 IC202 (4/7) R208 R251 TP208 R252 CN-2334 (2/3) RS422_B_TRM2_R BOARD NO. 1-685-751-11 LOT NO. 291- HKSP-R80...
- Page 56 C302 1000pF 1SS302-TE85L GND-S GND-S +12V-1 RY304 Q302 RN4904(TE85R) ETHER_RXN_M RS422_A_TRM1 ETHER_RXN_S +12V-1 RS422_A_TRM1_R +12V-1 Q303 D304 RN4904(TE85R) 1SS302-TE85L RS422_A_TRM2 RS422_A_TRM2_R +12V-1 Q304 RN4904(TE85R) RS422_B_TRM1 RS422_B_TRM1_R +12V-1 Q305 RN4904(TE85R) CN-2334 (3/3) RS422_B_TRM2 BOARD NO. 1-685-751-11 RS422_B_TRM2_R LOT NO. 291- HKSP-R80...
- Page 58 BKCPU_RTS BKCPU_CTS RS422_BTX RS422_B_RTS RS422_B_M/S BKCPU_DTR BKCPU_DSR RS422_BRX RS422_B_TRM1 RS422_B_TRM2 DTEN AE_IN (NC) (NC) (NC) (NC) ACTEN (CN_CHK @2335) (NC) CN_CHK +3.3V-A +3.3V-B +5V-A +5V-B GND-S GND-S GND-T GND-T CN-2334 (1/4) BOARD NO. 1-685-751-12 HKSP-R80_CN-2334_004_1 5-2 (a) 5-2 (a) HKSP-R80...
- Page 59 C209 0.1uF TP209 TP210 0.1uF TC74VHC04FT(EL) Q204 (2/2) GND1 GND2 R224 HN1C01FU-TE85R Q204 (1/2) R240 TC74VHC04FT(EL) RS422_B_M/S R207 100k HN1C01FU-TE85R R244 RS422_B_RTS IC202 (4/7) R208 R251 TP208 R252 CN-2334 (2/4) RS422_B_TRM2_R BOARD NO. 1-685-751-12 HKSP-R80_CN-2334_004_2 5-3 (a) 5-3 (a) HKSP-R80...
- Page 60 1SS302-TE85L GND-S GND-S +12V-1 RY304 Q302 RN4904(T5RSONY,D,F) ETHER_RXN_M RS422_A_TRM1 ETHER_RXN_S +12V-1 RS422_A_TRM1_R +12V-1 D304 Q303 1SS302-TE85L RN4904(T5RSONY,D,F) RS422_A_TRM2 RS422_A_TRM2_R +12V-1 Q304 RN4904(T5RSONY,D,F) RS422_B_TRM1 RS422_B_TRM1_R +12V-1 Q305 RN4904(T5RSONY,D,F) RS422_B_TRM2 RS422_B_TRM2_R CN-2334 (3/4) BOARD NO. 1-685-751-12 HKSP-R80_CN-2334_004_2 5-4 (a) 5-4 (a) HKSP-R80...
- Page 61 GOOD : 3.3V-B Q458 GOOD : GND OPEN(3.3V) DTC123JE-TL CL454 Q457 R454 R461 from CN-2335 DTC123JE-TL from CN-2335 +5V-B CN_CHK GOOD : 5V-B : GND -11 : -12 : OPEN CN-2334 (4/4) BOARD NO. 1-685-751-12 HKSP-R80_CN-2334_004_2 5-5 (a) 5-5 (a) HKSP-R80...
- Page 62 RS422_A_TRM1 RS422_A_TRM2 BKCPU_CTS BKCPU_RTS R113 R120 R121 CL101 100k 100k 100k RS422_BTX RS422_B_RTS RS422_B_M/S BKCPU_DSR BKCPU_DTR P_CK RS422_BRX RS422_B_TRM1 RS422_B_TRM2 DTEN ACTEN +3.3V AE_IN (NC) (NC) (NC) (NC) (CN_DET) CN-2335 (1/2) +3.3V +3.3V BOARD NO. 1-685-752-11 LOT NO. 291- HKSP-R80...
- Page 63 5 4 3 2 Q207 R280 SBUS_RX_A_M Q209 R279 2SA1226-T1E3E4 SBUS_RX_A_S R261 R233 C212 0.022uF R234 SBUS_TRMSENS_B2 6 IN- IC202 (1/2) R231 R232 LM393PS-E20 R251 R252 Q203 RN4905(TE85R) SBUS_TRM_B2 SBUS_IE_B2 CN-2335 (2/2) GND-S GND-S GND-T GND-T BOARD NO. 1-685-752-11 LOT NO. 291- HKSP-R80...
- Page 64 RS422_B_RTS RS422_B_M/S BKCPU_DSR BKCPU_DTR R113 R120 R121 100k 100k 100k RS422_BRX RS422_B_TRM1 RS422_B_TRM2 DTEN ACTEN P_CK (NC) (NC) (NC) (NC) AE_IN CN_CHK (NC) (CN_CHK @2334) +3.3V-A +3.3V-B +5V-A +5V-B CN-2335 (1/3) BOARD NO. 1-685-752-12 HKSP-R80_CN-2335_004_1 5-6 (a) 5-6 (a) HKSP-R80...
- Page 65 R211 R280 Q207 SBUS_RX_A_M Q209 R279 SBUS_RX_A_S 2SA1226-T1E3E4 R261 R233 C212 IC202 (2/3) 0.022uF LM393PSRG4 R234 SBUS_TRMSENS_B2 R231 R232 R251 R252 Q203 RN4905(T5RSONY,D,F) CN-2335 (2/3) SBUS_TRM_B2 SBUS_IE_B2 BOARD NO. 1-685-752-12 GND-S GND-S GND-T GND-T HKSP-R80_CN-2335_004_2 5-7 (a) 5-7 (a) HKSP-R80...
- Page 66 3.3V-B Q458 : GND GOOD : OPEN(5V) DTC123JE-TL CL454 Q457 R454 R461 DTC123JE-TL from CN-2334 001,003 +5V-B CN_CHK GOOD : 5V-B : GND -11 : GND -12 : OPEN CN-2335 (3/3) BOARD NO. 1-685-752-12 HKSP-R80_CN-2335_004_3 5-8 (a) 5-8 (a) HKSP-R80...
- Page 67 R1OUT R1IN CL124 MA_RX1 R2OUT R2IN CL102 C109 CL101 C102 0.1uF CN104 C106 0.1uF IC101 0.1uF SN74CBTS3306PWR-12 CN102 C110 M_DEBUG_TX1 0.1uF (NC) M_DEBUG_RX1 +3.3V D_USB- SHDN C107 /USB_EN D_USB+ 0.1uF PROGRAM CPU-355 (1/13) BOARD NO. 1-685-750-12 LOT NO. 291- HKSP-R80...
- Page 68 JTAG_TDI 0.1uF /REDUNDANT_RESET R222 R202 JTAG_TDO IC210 (4/5) BOARD NO. 1-685-750-12 Q202 TC74VHC08FT(EL) R203 JTAG_TMS DTC123JE-TL CL205 CL208 CL210 CL212 CL255 R204 CL206 CL209 CL211 LOT NO. 291- JTAG_TCK ACTEN R223 R221 SYNC_OUT IC214 TC7SH04FU-TE85R SOFTCHECK R254 5-10 5-10 HKSP-R80...
- Page 69 GND-T MU_INT ETHER_RXP (M_RDB) C314 0.1uF 002,007,010 R306 10k R315 C343 1000pF (M_RDA) ETHER_RXN C328 +3.3V 100/10 GND-S +3.3V R311 0.1uF IC302 93LC46BT/SN GND-T GND-S D301 CL-191YG-CD-T CPU-355 (3/13) BOARD NO. 1-685-750-12 002,010,013 CLOCK_BUS LOT NO. 291- 5-11 5-11 HKSP-R80...
- Page 70 (4/4) MA_D2 B8_5V_D2 /RD_ROM /RD_RAM T/R1 RB410 T/R1 RB420 RB429 (3/4) MA_D1 B8_5V_D1 CL449 RB429 (2/4) T/R2 T/R2 MA_D0 B8_5V_D0 /CS_RAM /CS_ROM RB429 (1/4) /CS_8_5V /RD_8_5V1 CPU-355 (4/13) IC411 (1/2) TC7SH04FU-TE85R BOARD NO. 1-685-750-12 LOT NO. 291- 5-12 5-12 HKSP-R80...
- Page 71 1SS372-TE85L D501 R505 B16_BB_A5 B16_BB_A5 1SS362-TE85L B16_BB_A4 B16_BB_A4 R503 R504 B16_BB_A3 B16_BB_A3 2.2k 2.2k TP504 B16_BB_A2 B16_BB_A2 C502 B16_BB_A1 B16_BB_A1 0.22F BT501 5.5V /CS_RAMH /CS_RAMH /RD_RAM /RD_RAM /WR_RAMH /WR_RAML CPU-355 (5/13) BOARD NO. 1-685-750-12 LOT NO. 291- 5-13 5-13 HKSP-R80...
- Page 72 /RD_ROM /WR_ROM /WR_ROM /WR_ROM /WR_ROM +3.3V +3.3V +3.3V +3.3V RESET RESET RESET RESET BYTE BYTE BYTE BYTE RY/BY RY/BY RY/BY RY/BY VSS1 VSS2 VSS1 VSS2 VSS1 VSS2 VSS1 VSS2 CPU-355 (6/13) BOARD NO. 1-685-750-12 LOT NO. 291- 5-14 5-14 HKSP-R80...
- Page 73 R725 R727 SBUS_IE_A2 C709 Q702 0.1uF Q701 2SA1226-T1E3E4 R722 R709 C710 0.022uF SBUS_TRMSENS_A2 1OUT 1IN+ R716 R723 IC703 R728 R729 1IN- LM393PS-E20 R717 2OUT 2IN+ CPU-355 (7/13) Q703 SBUS_TRM_A2 DTC123JE-TL 2IN- BOARD NO. 1-685-750-12 LOT NO. 291- 5-15 5-15 HKSP-R80...
- Page 74 B8_5V_D4 CH_D04 B8_5V_D5 CH_D05 B8_5V_D6 CH_D06 /WR_8_5V2 /WR_CHA /CS_CHA RB808 R802 ENABLE_3V +3.3V +3.3V +3.3V C815 0.1uF R824 R820 R821 001,002,005,013 +3.3V I2C_SDA IC807 I2C_SCL CAT24WC02J-TE13 001,002,005,013 CPU-355 (8/13) BOARD NO. 1-685-750-12 010,013 /WE_I2C LOT NO. 291- 5-16 5-16 HKSP-R80...
- Page 75 RB905 RB904 +3.3V C903 0.1uF UART_CS_BUS IC902 TC74VHC138FT(EL) CL932 B8_B_A20 /CS_UART1 CL933 B8_B_A21 /CS_UART2 CL934 B8_B_A22 /CS_UART3 +3.3V CL935 TP905 R902 /CS_UART4 CL936 /CS_UART5 CL937 /CS_8B /CS_UART6 CL938 CS8B CPU-355 (9/13) BOARD NO. 1-685-750-12 LOT NO. 291- 5-17 5-17 HKSP-R80...
- Page 76 /CS_UART5 B8_B_A1 CL1012 R1044 100 /CS_UART6 VCC1 VCC2 B8_B_A2 TX_CPU SR-AP SR-AN R1045 CL1013 R1049 6.8k +3.3V RX_CPU CLK_36M_3V R1050 6.8k RXRDY_SP CPU-355 (10/13) GND1 GND2 /WR_8B R1021 /RD_8B BOARD NO. 1-685-750-12 R1043 100k LOT NO. 291- 5-18 5-18 HKSP-R80...
- Page 77 4.7k IC1107 TP1104 R1128 0 D1103 TC74VHC08FT(EL) SD_OUT C1104 C1114 10uF R1109 C1110 10uF HD_OUT REFB Q1102 Q1105 SD_OUT 2SA1610-T1Y34 R1106 R1108 DTC123JE-TL D1102 750P_OUT 1SS362-TE85L Q1104 DTC123JE-TL REF_SEL CPU-355 (11/13) BOARD NO. 1-685-750-12 LOT NO. 291- 5-19 5-19 HKSP-R80...
- Page 78 MB3771PF-ER CL1202 /RESET_5V R1243 C1223 +3.3V 0.1uF RESET R1241 TP1207 2.2k TP1202 IC1208 (1/2) D1211 TC7SH08FU-TE85R /RESET_3V1 CL-191YG-CD-T R1203 /RESET_3V2 IC1207 CONF_DONE CL1203 TC7WH14FK(TE85R) C1229 0.1uF IC1208 (2/2) TC7SH08FU-TE85R CPU-355 (12/13) BOARD NO. 1-685-750-12 LOT NO. 291- 5-20 5-20 HKSP-R80...
- Page 79 RS422_A_M/S RS232C_RX RS422_ARX RS422_A_TRM1 RS422_A_TRM2 RS232C_TX RS422_BTX RS422_B_RTS RS422_B_M/S RS422_BRX RS422_B_TRM1 RS422_B_TRM2 BKCPU_DSR BKCPU_DTR ACTEN AE_IN BKCPU422TXP BKCPU422TXN BKCPU_RTS SLOT_AB DTEN BKCPU422RXP BKCPU422RXN BKCPU_CTS +12V +12V +12V +12V +12V CPU-355 (13/13) BOARD NO. 1-685-750-12 LOT NO. 291- 5-21 5-21 HKSP-R80...
- Page 80 SBUS-RX 232C_RX SBUS-RX 232C_TX SBUS-TX 232C_TX SBUS-TX +5V-1 +5V-1 +5V-1 S1CONTBUS 2.5A/72V KOA CCP2E63 IC8 (2/2) TC7SH08FU-TE85R IC6 (3/3) 150k 0.1uF TC74VHC123AFT(EL) (2/3) 0.1uF TC74VHC123AFT(EL) SRX_DETCT 0.1uF IF-844 0.1uF 2.2k CL-191YG-CD-T BOARD NO. 1-681-931-12 LOT NO. 291- 5-22 5-22 HKSP-R80...
- Page 81 CPU_CSn 10uF DP_CE_ CH_NUM CH_NUM C115 232C_RX SBUS_RX 0.1uF 232C_RX SBUS-RX R112 232C_TX SBUS_TX R117 232C_TX SBUS-TX +5V-1 +5V-1 +2.5V LEVEL SHIFTER 50mA IC107 R1114Q251D-TR-FA POWER CIRCUIT VOUT C118 C111 0.47uF IF-1160 (1/2) BOARD NO. 1-883-807-11 IXS-6700_IF-1160_001_1 5-23 5-23 HKSP-R80...
- Page 82 SBEn[0] IO/DIFFIO_R4n/nCEO IO/DIFFIO_T20p/PADD0 IO:5 IO/DIFFIO_B2p OP_SRAM_OEn R241 22 IO/nRESET SBEn[0] SBEn[1] IO/DIFFIO_B4n OP_SRAM_BEn[0] R242 22 SBEn[1] IO/DIFFIO_B8p OP_SRAM_BEn[1] IO/DIFFIO_B9p IC206 R1LV1616RBG-5SI IO:14 IO:15 R235 R236 +3.3V IO:17 IO:18 IO:19 FPGA ALL IF-1160 (2/2) BOARD NO. 1-883-807-11 IXS-6700_IF-1160_001_2 5-24 5-24 HKSP-R80...
- Page 83 LE-264 0.1uF CH_A0 CH_A1 CH_D0 INFO DISP CH_D1 CH_D2 CH_D3 CH_D4 CH_D5 CH_D6 /CHA_WR 0.1uF CHA_CLK /RESET_5V USER_DEF_G USER_DEF_R ACTIVE_G ACTIVE_R STATUS_G STATUS_R CL-165HR/YG-D-T USER-DEF CL-165HR/YG-D-T ACTIVE CL-165HR/YG-D-T STATUS LE-264 BOARD NO. 1-685-753-11 LOT NO. 291- 5-25 5-25 HKSP-R80...
- Page 85 R231 RB112 *A1 C201 C227 C253 FB201 *B2 R206 R232 RB113 *A2 C202 C228 C254 FB202 *A3 Q101 R207 R233 RB114 *A1 C203 C229 FB203 *B3 Q102 R208 R234 RB115 *A2 C204 C230 CL201 *A2 R209 R235 RB201 *A3 HKSP-R80...
- Page 86 FB206 R245 FB207 R246 FB208 R247 FB301 R248 FB302 R249 FB303 R250 FB304 R251 FB305 R252 FB306 R253 R254 IC101 R255 IC102 R256 IC202 R301 IC203 R302 IC205 R303 IC206 R304 IC207 R305 IC208 IC301 RY301 RY302 L101 RY303 HKSP-R80...
- Page 88 R218 R219 R220 R221 R222 R223 R224 R225 F101 R226 F102 R228 R229 FB201 R230 FB202 R232 FB203 R233 FB204 R234 FB205 R236 FB206 R237 FB207 R238 FB208 R240 FB301 R241 FB302 R242 FB303 R243 6-2 (a) 6-2 (a) HKSP-R80...
- Page 89 R221 R222 R223 R224 R225 R226 R227 R228 R229 F101 R230 R231 FB201 R232 FB202 R233 FB203 R234 FB204 R235 FB205 R236 FB206 R237 FB207 R238 FB208 R239 FB209 R240 R241 IC101 R242 IC102 R243 IC201 R244 IC202 R245 HKSP-R80...
- Page 91 D411 R122 R402 D412 R123 R403 D413 R201 R404 R202 R411 R203 R412 R204 R413 R205 R414 R206 R451 R207 R452 R208 R453 R209 R454 R210 R455 R211 R456 R212 R457 R213 R458 R214 R459 6-3 (a) 6-3 (a) HKSP-R80...
- Page 92 R811 R1128 *G2 RB222 *D2 TP902 C343 C1012 CL206 *D3 CL439 *F1 CL1009 H2 IC1011 *G3 R237 R816 R1129 *H2 RB401 *F2 TP903 C401 C1013 *F3 CL207 CL440 *F1 CL1010 H2 IC1104 *H2 R238 R817 R1201 RB402 *F2 TP904 HKSP-R80...
- Page 93 CPU-355 CPU-355 CPU-355 -A SIDE- SUFFIX: -12 CPU-355 -B SIDE- SUFFIX: -12 HKSP-R80...
- Page 96 Printed in Japan Sony Corporation HKSP-R80 (SY) J, E 2011. 9 08 9-967-995-02 ©2002...
