TECHNICAL DATA
MODEL
SKU
LUMENS
SOLAR PANEL
BATTERY
CHARGING TIME
WORKING TIME
BULB WATTS
COLOR TEMPERATURE
SENSOR TYPE
SENSOR DEGREE
DIMENSION
MATERIAL
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 3 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product. The products
are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This
product is warranted for manufacturing defects only.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
INSTRUCTION MANUAL

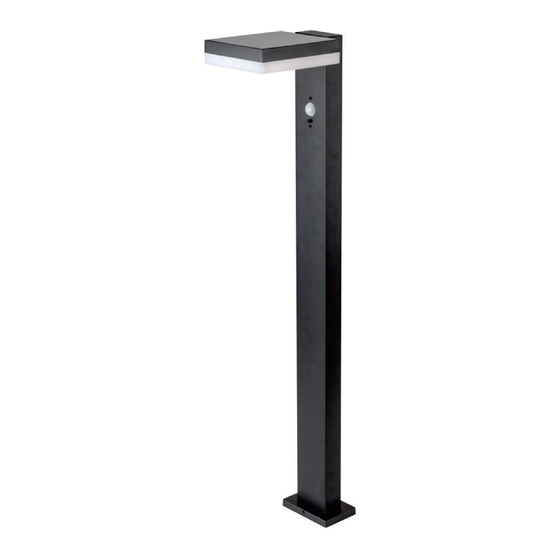

SOLAR LED BOLLARD
LIGHT WITH SENSOR
VT-1167
23398
220 Lm
DC 5.5V, 2W Polycrystalline
2200mAh, Li-Ion, DC: 3.7V
8-10 Hours
6-8 Hours
5.5 W
3000K
PIR Sensor
90-110°
155x299x155mm
Aluminium+PC
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
Advertisement
Table of Contents
Related Manuals for V-TAC VT-1167
Summary of Contents for V-TAC VT-1167
- Page 1 Aluminium+PC INTRODUCTION & WARRANTY Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.
- Page 2 WARNING 1. Please make sure to turn off the power This marking indicates that this before starting the installation. product should not be disposed of with other household wastes. 2. Installation should be done by certified electrician. INSTALLATION DIAGRAM High Light Low Light High Light Standby Time...
- Page 3 INSTALLATION INSTRUCTION 1. Drill two holes on the wall and insert two plastic expansion bolts in it. 2. Fix the metal plate on the plastic expansion piece with self-tapping screws. 3. Fix the lamp body on the plate and tighten the screws. 4.
