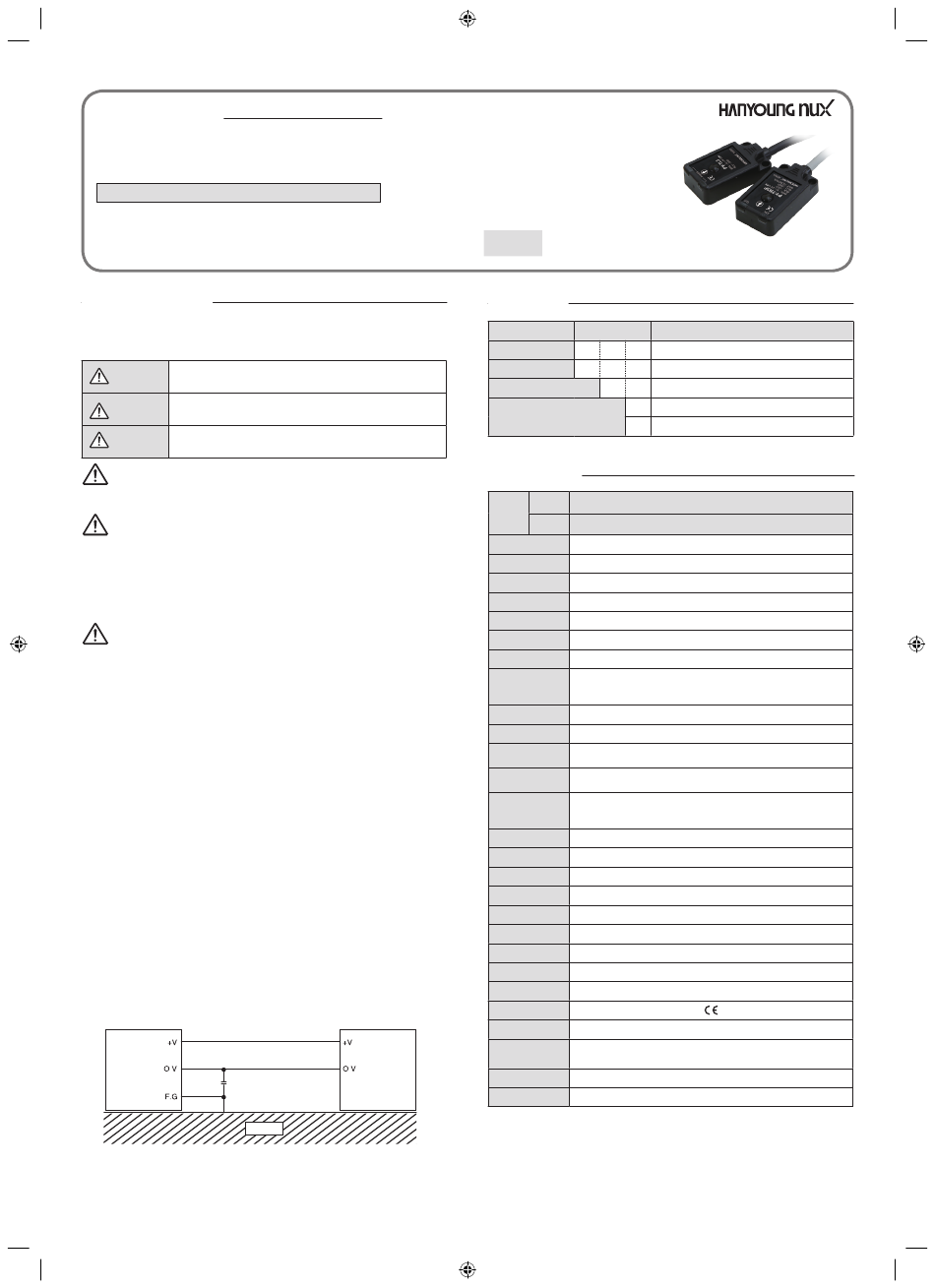

HANYOUNG NUX PY Series Instruction Manual

Slim type Photo Sensor
PY series
INSTRUCTION MANUAL
Thank you for purchasing Hanyoung Nux products. Please read the
instruction manual carefully before using this product, and use the
product correctly. Also, please keep this manual where you can view it
any time.
Safety information
Please read the safety information carefully before the use, and use the product correctly.
The alerts declared in the manual are classified into Danger, Warning and Caution according
to their importance
Indicates an imminently hazardous situation which,
DANGER
if not avoided, will result in death or serious injury
Indicates a potentially hazardous situation which,
WARNING
if not avoided, could result in death or serious injury
Indicates a potentially hazardous situation which,
CAUTION
if not avoided, may result in minor iinjury or property damage
DANGER
•Do not touch or contact the input/output terminals because they may cause electric shock.
WARNING
•This product is not for outdoor use (it may shorten the product lifetime and cause electric shock)
•Do not use this product in places with flammable or explosive gases (it does not have
an explosion-proof structure, so there are fire or explosion risks)
•Do not use the product in places where vibrations or shocks exceed the reference values
(it has a double insulation structure, but the components may be damaged)
CAUTION
• When the lens of the photo sensor is contaminated by foreign substances, use a dry
piece of cloth and wipe off the substance lightly. Never use thinner or organic solvents.
•Separate high voltage cable and power line from the sensor wire. Be cautious since using the
same pipe during wiring could cause malfunction.
•This product has IP67 protection rating , which means that it is partially waterproof, but it
cannot be used in places that are constantly flooded.
• If the cable needs to be extended, use over 0.3 ㎟ and be cautious because of a
possible sudden voltage drop.
•When using the sensor under lights with high frequency, such as fluorescent lamps or mercury
lamps, block it with a light shading plate and avoid the lens from facing the light directly.
•Malfunction can occur due to mutual interference when using more than 2 pairs of through-
beam type photo sensors. Therefore, leave enough space for the mutual separation
distance and install the light emitters and the light receivers in alternating positions.
• Using inductive load (relay, coil) for the output can cause an instantaneous increase in
load by more than two times and damage the TR of the output. Therefore, please set
half of the maximum load.
• There is an over-current protecting circuit within the output side that breaks the output when the
current is higher than the rated load current. Therefore, please set within 70% of the maximum load.
• Do not use the product in places with heavy dust or debris that can contaminate the
lenses and consequently cause malfunctions.
•The contents of this manual may be changed without prior notification
• Any use of the product other than those specified by the manufacturer may result in
personal injury or property damage.
• When using the Switching Power Supply as power source, ground the Frame
Ground (F.G.)terminal and be sure to connect the noise-cancelling condenser
between OV and F.G. terminals
SMPS
• Be sure to observe the safety precautions mentioned above as cautions to prevent product
malfunctions.
MK0901KE171124_PYseries.indd 3
Sensor
C(0.01㎌-0.1㎌/500 V)
- noise-cancelling
condenser -
Frame
HANYOUNGNUX CO.,LTD
28, Gilpa-ro 71beon-gil, Nam-gu, Incheon, Korea
HEAD OFFICE
TEL : (82-32)876-4697
FAX : (82-32)876-4696 http://www.hynux.com
Suffix code
Model Number
☐ ☐ ☐
PY- Slim type Photo Sensor
Sensing mode T Through-beam
Sensing distance 3 3 m
N NPN open collector output
Control output
P PNP open collector output
Specification
NPN
Model
PNP
Sensing mode
Sensing distance
Sensing object
Min. sensing object Ø2 mm min. opaque object (3 m standard)
Hysteresis distance
Power voltage
Current consumption Emitter: 10 mA max. , Receiver: 15 mA max.
NPN or PNP open collector output
Control output
Load current: 100 mA max. (26.4 V d.c. standard)
Residual voltage - NPN: 1V max. , PNP: 1V max.
Operation mode Light ON / Dark ON mode switching selection by control wire (receiver only)
Response time
Light source
(wavelength)
Red LED: control output, green LED: stability indication
LED
(However, emitter red LED: power indication)
Power reverse connection protecting circuit and
Protecting circuit output break overcurrent protecting circuit.
Output break (note 1), output reverse connection protection circuit
Ambient illumination Sunlight : 11,000 Lux max. , Incandescent lamp : 3,000 Lux max.
℃
Ambient temperature -20 ~ 60 (storage ambient temperature : -25 ~ 70
Ambient humidity 35 ~ 85 % RH (without condensation)
Protection rating
Insulation resistance 20 MΩ min. (500 V d.c. mega standard)
Noise immunity Square wave noise by noise simulator (pulse width: 1 μs) ± 240 V
Dielectric strength 1,000 V a.c. (50/60 ㎐ for 1 minute)
Vibration resistance 10 - 55 ㎐, double amplitude: 1.5 ㎜, for 2 hours in X, Y ,Z directions
Shock resistance 500 ㎨, 3 times in each X, Y,Z directions
Certifications
Connection method
Connection
Ø3 mm, 4-core, 2 m (emitter: Ø3 mm, 2-core, 2 m)
specifications
Materials
Weight
(Note 1) Red LED turns off and repeats for 38.4 ms after red LED turns on for 192 ㎲
during light ON
MK0901KE180213
Contents
PY-T3N
PY-T3P
Through - beam
3 m
Ø5 mm min. opaque object
None
12 - 24 V d.c. ± 10%
1 ㎳ max.
Infrared LED (850 nm)
℃
)
IP 67 (IEC)
Wire extended type
Case : PC, Lens : PC
approx. 66g
