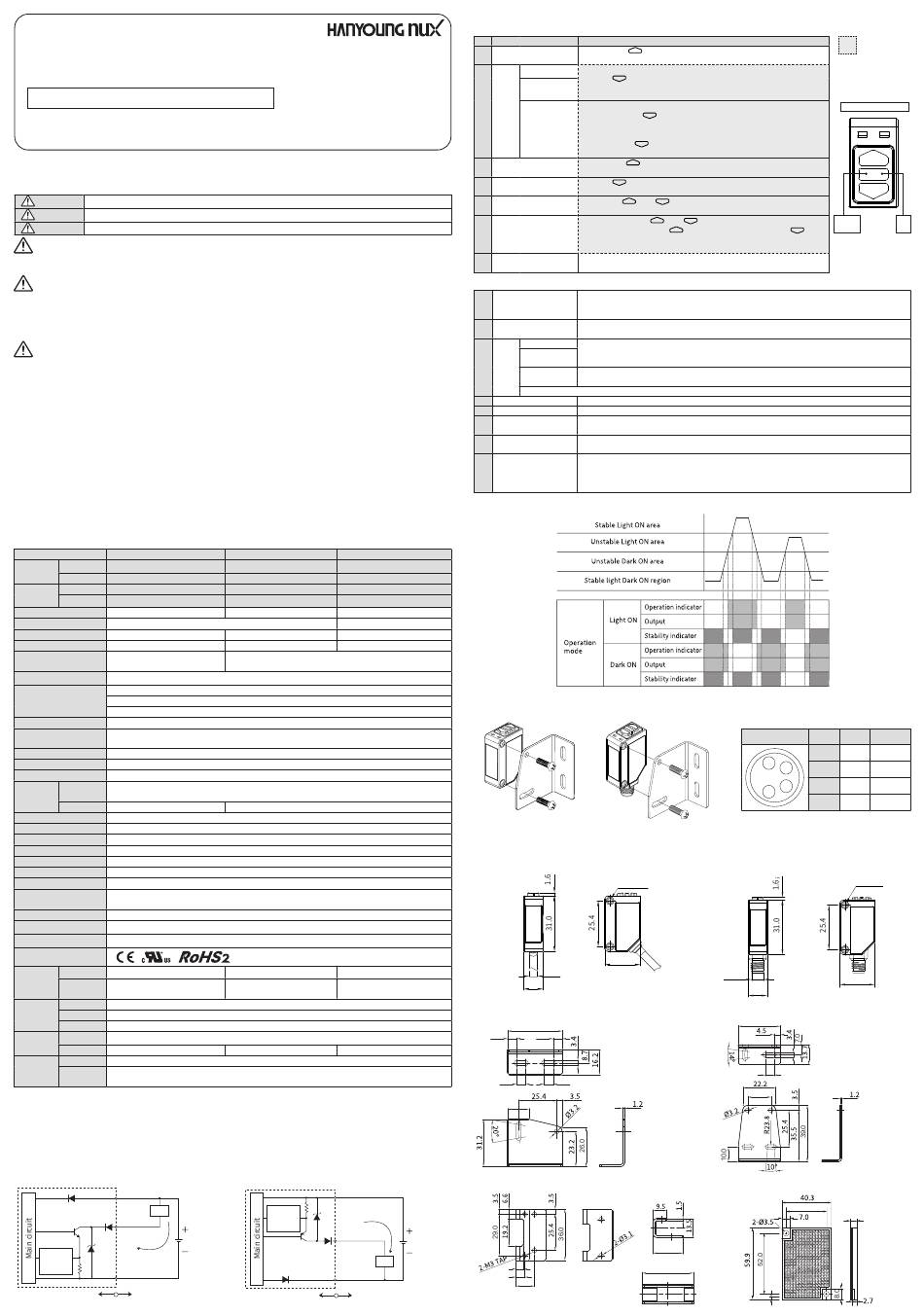

HANYOUNG NUX PQ Series Instruction Manual

PQ series
Built-in Amplifier Photo Sensor
INSTRUCTION MANUAL
Thank you for purchasing Hanyoung Nux products.
Please read the instruction manual
carefully before using this product, and use the product correctly.
Also, please keep this instruction manual where you can see it any time.

▍ Safety information

Please read the safety information carefully before use, and use the product correctly.
The alerts declared in the manual are classified into Danger, Warning and Caution according to their importance
DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury
WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury
CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in minor injury or property damage
DANGER
• The input/output terminals are subject to electric shock risk.
Never let the input/output terminals come in contact with your body or conductive substances.
WARNING
• This product is not for outdoor use (it may shorten the product lifetime and cause electric shock)
• Do not use this product in places with flammable or explosive gases
(it does not have an explosion-proof structure, so there are fire or explosion risks)
• Do not use the product in places where vibrations or shocks exceed the reference values
(it has a double insulation structure, but the components may be damaged)
CAUTION
• Applicable Pollution degree 3 of intended environment.
• Never use it on AC power.
• Be careful of wiring. It may cause explosion, fire, or machine breakdown.
• Do not use the product in a state where the product body or
cable is crashed.
• Do not disassemble, repair or modify the product.
• When the lens of the photo sensor is contaminated by foreign
substances, use a dry piece of cloth and wipe off the
substance lightly. Never use thinner or organic solvents.
• Separate high voltage cable and power line from the sensor wire.
Be cautious since using the same pipe during wiring could cause
malfunction.
• If the cable needs to be extended, use over 0.3 ㎟ and be
cautious because of a possible sudden voltage drop.
• When using the sensor under lights with high frequency, such as
fluorescent lamps or mercury lamps, block it with a light
shading plate and avoid the lens from facing the light directly.
• If multiple through-beam type photoelectric sensors are installed

▍ Specification

Sensing mode Through-beam
NPN PQ-T30N
Cable type
PNP PQ-T30P
NPN PQ-T30NC
Connector
type
PNP PQ-T30PC
Sensing distance 30 m
Hysteresis distance
Detecting object Ø12 mm or more (Opaque)
Light source (wavelength) Infrared LED (855 nm)
Emitter: max. 15 mA,
Current consumption
Receiver: max. 20 mA
Power voltage
Control output
Operation mode
Control output indicator light : Red LED, Stability indicator light : Green LED
Indicator light
(However, the red LED of the through-type emitter is a power indicator)
Auto tuning
AGC After 20 seconds of unstable light entering on button locked state to stable light entering state.
Sensitivity adjustment B1 increases the sensitivity and B2 decreases the sensitivity
Power reverse connection protection, Output short-circuit over-current protection,
Common
Protection
Output reverse connection protection, Output short-circuit alarm
circuit
Individual -
Response time
Insulation Resistance
Noise immunity Square wave noise by noise simulator (pulse width 1㎲) ±240 V
Dielectric strength
Vibration resistance 10-55Hz, sweep: 1.5mm, X·Y·Z 2 in each direction for 2 hours
Shock resistance
Ambient illumination Sunlight : max. 11,000 lx / Incandescent: max 3,000 lx
Ambient
temperature range During storage : -40 ～ +70℃ (Without condensation or icing)
Ambient humidity
Pollution degree
Protection
Certification
Cable type 100 g (160 g)
Weight
Connector
(Packing)
20 g (80 g)
type
Case
Texture Display
Lens
Common

Accessory

Individual -
Cable type Number of wires - 3P, Outer diameter - 4 Ø, Length - 2 m (however, the emiiter of through-beam type has 2P)
Connection
Connector
method
type
▪ Mutual interference prevention function
▪ Resistant to noise by adopting digital signal processing
▪ M.S.R. that receives only the light reflected from the mirror
▪ Easy setting by using buttons

▍ Output circuit

NPN TYPE
NPN TYPE
※ Diffuse-reflective, retro-reflective, receiver of through-beam types only (however, the emiiter of through-beam type has 12 - 24 V d.c. power input only.)
■ NPN TYPE
Brown (BRN)+V
Load
Black
(BLK)OUT
100 mA Max.
Overcurrent
protection
36.0
circuit
6.0 6.0
Blue (BLU) 0 V
Internal circuit External connection example
6.0 6.0
HANYOUNGNUX CO., LTD
28, Gilpa-ro 71beon-gil,
Michuhol-gu, Incheon, Korea
TEL : +82-32-876-4697
http://www.hanyoungnux.com
close together, malfunction may happen due to the
mutual interference.
• Using inductive load (relay, coil) for the output can cause an
instantaneous increase in load by more than two times and damage
the TR of the output. Therefore, please set half of the maximum load.
• There is an over-current protecting circuit within the output side
that breaks the output when the current is higher than the rated
load current. Therefore, please set within 70% of the maximum load.
• Do not use the product in places with heavy dust or debris that
can contaminate the lenses and consequently cause malfunctions.
• The contents of this manual may be changed without prior notification
• Any use of the product other than those specified by the
manufacturer may result in personal injury or property damage.
• When using the Switching Power Supply as power source,
ground the Frame Ground (F.G.) terminal and be sure to connect
the noise-cancelling condenser between OV and F.G. terminals
• The power supply should be insulated and
limited voltage/current or Class 2, SELV power.
Retroreflective (M.S.R.)
PQ-M4N
PQ-M4P
PQ-M4NC
PQ-M4PC
0.1 ~ 4 m
- 20% or less of detection distance
Ø75 mm more (Opaque) White paper (100 x 100 mm)
Red LED (660 nm) Infrared LED (855 nm)
Max. 30 mA
12 - 24 V d.c. Class 2 ±10 % (Ripple max. 10 %)
• NPN or PNP open collector output
• Load current - max. 100 mA (26.4 V d.c. standard
• Residual voltage - NPN: max. 1.5 V, PNP: max. 1.5 V
Light ON / Dark ON button switch type
See How to set sensitivity and operation mode → Section ③.
Mutual interference prevention function
Max. 1 ms
More than 20 MΩ (500 V d.c. mega)
1,000 V a.c. (50/60 Hz for 1 minute)
500 m/s2, X·Y·Z each direction 3 times
operating temperature : -20 ～ +55 ℃
35 ～ 85 % RH (Without condensation or icing)
3 rating
IP67 (IEC standard)
(The connector type is currently undergoing CE and UL certification)
55 g (115 g)
10 g (70 g)
NYLON
PC
PMMA
Instructions manual, bracket A, bolt (M3 X 12 mm)
Mirror (HY-M5)
M8 Connector Wiring (M8 relay cable sold separately)
▪ IP67 (IEC standard) protection structure with excellent
water resistance
▪ Realization of long-distance detection by adopting
high-performance lens
▪ Easy to install with screw fixing method
NPN TYPE
NPN TYPE
■ PNP TYPE
Brown (BRN)+V
100 mA Max.
Overcurrent
protection
Black
circuit
(BLK)OUT
12 - 24
V d.c.
29.0
Blue (BLU) 0 V
Internal circuit External connection example
6.0

▍ How to set sensitivity and operation mode

NO Function
① Button lock & unlock
Through-beam
Retroreflective
(M.S.R.)
Auto
③
tuning
Diffuse-
reflective
MK2201KE231115
④ Increase sensitivity
⑤ Decrease sensitivity
⑥ Operation mode change
⑦ Factory reset
⑧ AGC
■ Indicator light state
① Button lock
② Button unlock
Through-beam Within 3 seconds (Green blinking) → After 3 seconds (Red ON) →
Retroreflective
(M.S.R.)
Auto
③
tuning
Diffuse-
reflective
※ If auto-tuning is attempted while the light from the emitter does not enter the receiver, the red blinks (Error displayed for 2 seconds)
④ Increase sensitivity
⑤ Decrease sensitivity
⑥ Operation mode change
⑦ Factory reset
Save previous
Etc
execution value

▍ Motion chart

Diffuse-reflective
PQ-R1N
PQ-R1P
PQ-R1NC
PQ-R1PC
1 m

▍ How to install

■ Cable type
Bracket A
• M3 X12mm The tightening torque should be 0.5 N˙m or less.
▍ Dimensions
■ Cable type
55 g (100 g)
10.8
10.8
10 g (55 g)
▍ Accessory
■ Bracket A
36.0
6.0 36.0 6.0
6.0
6.0 6.0 6.0
-
6.0 6.0
6.0
6.0
14.0
14.0
14.0
14.0
■ Bracket C (sold separately)
12 - 24
V d.c.
Load
5.0
6.0
13.0
Information
Press the B1 ( ) button for more than 3 seconds to change
(lock or unlock).
If the B2 ( ) button is pressed for more than 3 seconds in the presence
of a detection object, the sensitivity is automatically set.
1) In the presence of a detection object (stable light incident)
2) Release the B2 ( ) button after pressing it for more than 3 seconds.
3) Check the green + red LED cross blinking
(try again if either side is not blinking)
4) Press the B2 ( ) button once after removing the detected object
(0.5 seconds)
Press the B1 ( ) button for less than 3 seconds to increase the fine
sensitivity (1 STEP)
If the B2 ( ) button is pressed for less than 3 seconds, the fine sensitivity
decreases (1STEP)
Press the B1( ) +B2 ( ) buttons simultaneously for 5 seconds or longer
to change the operation mode (Light ON↔Dark ON)
After pressing the B1( ) +B2 ( ) buttons together for more than
5 seconds, release only B1 ( ) After 5 seconds, release the B2 (
button to reset. (Dark ON, sensitivity maximum, button unlock changes,
and diffuse reflection type becomes Light ON.)
Unstable light If it lasts more than 20 seconds, it is adjusted to stable light
incident state.
Within 3 seconds (green blinking) →
After 3 seconds (red ON), release the B1 button, green + red blinking (2 seconds)
※ Setting value cannot be changed when button locking or unlocking is operated
Within 3 seconds (Green + Red blinks) →
After 3 seconds (Red ON), release the B1 button, Green + Red blinks (2 seconds)
When the B2 button is released, green + red blinks alternately (5 seconds) →
green blinks (2 seconds)
If you press the B2 button once when there is green + red blinking (0.5 seconds),
green blinks 6 times.
Within 3 seconds (green blinking)
Within 3 seconds (green blinking)
Within 5 sec ( Green + Red OFF) → After 5 sec (Green + Red ON) → Release B1 + B2 button to blink
green (2 sec)
Within 5 sec (Green+Red OFF) → After 5 sec (Green+Red ON) → Release B1 button to blink green + Red
ON (5 sec) → After 5 seconds (green ON) → B2 button is released, green blinks (2 seconds)
① ~ ⑦ Saved after a certain period of time after performing the operation (no arbitrary operation),
blinking green (1 time)
After saving the operation value, even if the power is turned off and on,
the previous operation value is saved (automatically saved even in case of power failure)
브라켓 B
M3 X 12mm
체결 토크는
0.5N·m 이하로
하십시오.
■ Connector type
Bracket A
■ Connector type
2-M3 TAP
2-M3 TAP
20.0
20.0
Ø4
Ø4
■ Bracket B (sold separately)
36.0
36.0
6.0
6.0
6.0 6.0
6.0
6.0
■ Mirror HY-M5
21.0
36.0
Operation in button
unlocked state
detection surface
B1
B2
GREEN RED
LED LED
)
2-M3 TAP
6.8 20
10.8
Connector type pin Color Function
① Brown +V
1
2
② - -
4 ③ Blue 0 V
3
④ Black OUT
• Connector pin ④ is N.C (not connected) for
the emiiter of through-beam type.
[unit : mm]
2-M3 TAP
�-M� TAP
Ø6.8
∅�.�
20.0
��.�
10.8
��.�
29.0
29.0
29.0
29.0
6.0 6.0
6.0
6.0
16.0
16.0
16.0
16.0
34.0
7.5
1.6
GRE
스위치
GREEN
스위치 �
