SERVICE MANUAL
SERVICE MANUAL
Master instructions
Master instruction

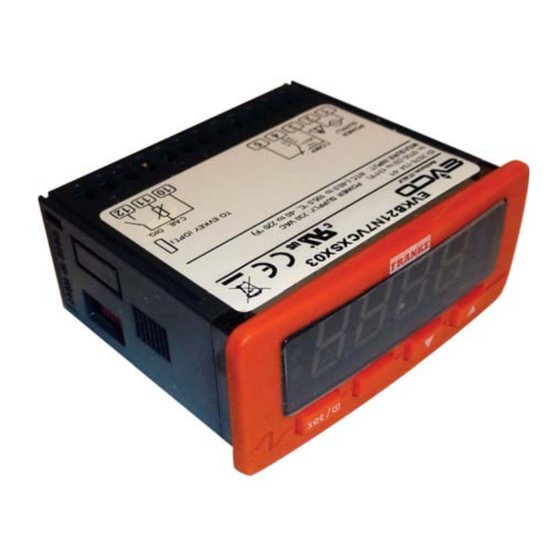

TEMPERATURE CONTROLLER EVCO
Item no.:
470.778
#EVKB21N7VCXSX
Operating ................................................................................................................................. 3
Screen messages ......................................................................................................................4
Error messages and error correction ......................................................................................... 5
List of parameters ..................................................................................................................... 6
Resistance table (Pt 1000) ........................................................................................................ 10
1532675
#EVKB33N7VXXSX
en
Advertisement
Related Manuals for Franke EVCO EVKB21N7VCXSX
Summary of Contents for Franke EVCO EVKB21N7VCXSX
-
Page 1: Table Of Contents
SERVICE MANUAL SERVICE MANUAL Master instruction Master instructions TEMPERATURE CONTROLLER EVCO Item no.: 470.778 1532675 #EVKB21N7VCXSX #EVKB33N7VXXSX Operating ..........................3 Screen messages ........................4 Error messages and error correction ..................5 List of parameters ........................6 Resistance table (Pt 1000) ......................10... - Page 2 You have decided to purchase a product from Franke Foodservice Systems – a great choice! We would like to thank you for your trust and assure you that we will continue to do everything in our power to be an excellent partner.
-
Page 3: Operating
Operating Start/stop/confirm button Increase value Decrease value The temperature controller shows the current temperature (actual value) in display mode. If no button is pressed for 20 seconds during setup (setup mode), the temperature controller returns to display mode. Turning on/off - Press and hold for 4 seconds. -
Page 4: Screen Messages
Configuring the setup parameters The setup parameters should only be changed under unfavorable operating conditions. The set- tings may only be configured as expressly instructed by Franke Foodservice Systems. - Briefly press : SEt will appear. - Press until PA appears on the display. -
Page 5: Error Messages And Error Correction
Error messages and error correction Error mes- Problem Remedy sage Lower temperature alarm - Check actual temperature (at sensor 1) - Look at parameters A1 and A3 - Check actual temperature Lower temperature alarm (at sensor 2)* - Look at parameters A5 and A7 - Check actual temperature Upper temperature alarm - Look at parameters A5, A6 and A5... -
Page 6: List Of Parameters
List of parameters Temperature controller Evco Status: 07/2013... - Page 7 Temperature controller Evco Status: 07/2013...
- Page 8 Temperature controller Evco Status: 07/2013...
- Page 9 Temperature controller Evco Status: 07/2013...
-
Page 10: Resistance Table (Pt 1000)
Resistance table (Pt 1000) °C -200 185.201 189.522 193.840 198.154 202.465 206.772 211.076 215.376 219.672 223.965 -190 228.255 232.541 236.824 241.103 245.379 249.651 253.920 258.186 262.449 266.708 -180 270.964 275.217 279.467 283.713 287.956 292.197 296.434 300.667 304.898 309.126 -170 313.350 317.572 321.791 326.006... - Page 11 Temperature controller Evco Status: 07/2013...
