CEN-TECH 193175542717 Owner's Manual & Safety Instructions

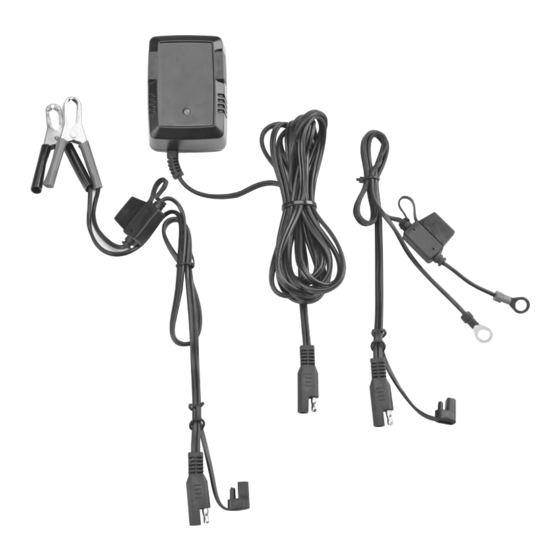

Deluxe battery maintainer & float charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the back
of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep
this manual and the receipt in a safe and dry place for future reference.
DELUXE
BATTERY MAINTAINER & FLOAT CHARGER
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2023 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product
described herein. Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this
product. Failure to do so can result in
serious injury. SAVE THIS MANUAL.
23l
193175542717

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 193175542717 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CEN-TECH 193175542717

Summary of Contents for CEN-TECH 193175542717

  • Page 1 DELUXE BATTERY MAINTAINER & FLOAT CHARGER Visit our website at: http://www.harborfreight.com 193175542717 Email our technical support at: productsupport@harborfreight.com When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-888-866-5797 as soon as possible.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION 1. Do not expose charger to rain or snow. 10. PERSONAL PRECAUTIONS 2. Use of an attachment not recommended a. Consider having someone close or sold by the battery charger enough by to come to your aid when manufacturer may result in a risk of fire, you work near a lead-acid battery.

  • Page 3: Dc Connection Precautions

    11. PREPARING TO CHARGE c. Check polarity of battery connectors. POSITIVE (POS, P, +) battery a. If necessary to remove battery from connector usually has larger diameter vehicle to charge, always remove than NEGATIVE (NEG, N, –) post. grounded terminal from battery first. Make sure all accessories in the vehicle d.
  • Page 4 18. Disconnect and cap the Quick-Connector 26. Do not leave charger or battery unchecked before connecting its cables to a for extended periods of time to reduce risk. battery, or performing any inspection, 27. Before moving charger, disconnect maintenance, or cleaning procedures. power supply and battery, then 19.

  • Page 5: Specifications

    Specifications Input 120VAC, 60Hz, 0.25A Rated Output 12VDC / 0.75A Maximum Output 13.2 VDC Battery Capacity 5 – 125 Ah Cable Length 12 ft. Fuse 7.5A Blade-type Operation Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product.

  • Page 6: Led Functions

    Connection A SPARK NEAR BATTERY MAY CAUSE BATTERY EXPLOSION. TO REDUCE RISK OF A SPARK NEAR BATTERY follow these instructions exactly. TO PREVENT SERIOUS INJURY: Wear ANSI-approved splash-resistant safety goggles and heavy-duty rubber work gloves whenever connecting, disconnecting, or working near battery. Battery acid can cause permanent blindness.

  • Page 7: Maintenance Instructions

    Note: If product has no serial number, record Note: Some parts are listed for illustration month and year of purchase instead. purposes only, and are not available individually as replacement parts. Specify UPC 193175542717 when ordering parts. 62813 For technical questions, please call 1-888-866-5797. Page 7...

  • Page 8: Please Read The Following Carefully

    PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
