Wolf SRT304 Installation Instructions Manual

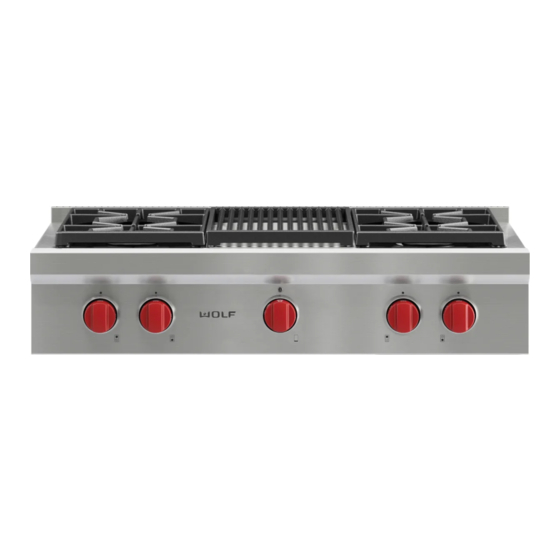

30", 36", 48" sealed burner rangetops
Hide thumbs Also See for SRT304:

Advertisement

Quick Links

Download this manual See also: Use and Care Manual, User Manual
S
B
R
E A L E D
U R N E R
A N G E T O P S
I
I
NSTALLATION
NSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRT304 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wolf SRT304

Summary of Contents for Wolf SRT304

  • Page 1 E A L E D U R N E R A N G E T O P S NSTALLATION NSTRUCTIONS...
  • Page 2 ® WOLF is a registered trademark of Wolf Appliance Company, LLC As you follow these instructions, you will notice WARNING and CAUTION symbols. This blocked information is important for the safe and efficient installation of Wolf equip- ment. There are two types of potential hazards that may occur during installation.
  • Page 3 Refer to the illustration below. Model Number Serial Number C O N TA C T I N F O R M A T I O N Wolf Customer Service: 800-332-9513 Website: wolfappliance.com...

  • Page 4: Important Note

    A ventilation hood is recommended for use with the Wolf sealed burner rangetop. WHAT TO DO IF YOU SMELL GAS: Do not try to light any appliance.
  • Page 5 O P T I O N S IMPORTANT NOTE: It is recommended that you operate the Wolf sealed burner rangetop with a Pro ventilation hood. Contact your Wolf dealer for details. Pro Wall Hood – 22" (559), 24" (610) or 27"...
  • Page 6 M I N I M U M C L E A R A N C E S IMPORTANT NOTE: Caution must be used in planning the proper installation of the Wolf sealed burner rangetop to avoid fire or damage to adjacent cabinetry or kitchen equipment.
  • Page 7 I N S TA L L AT I O N I N S T R U C T I O N S 3 0 " ( 7 6 2 ) S E A L E D B U R N E R R A N G E T O P COOKING SURFACE "...
  • Page 8 W O L F S E A L E D B U R N E R R A N G E TO P 3 6 " ( 9 1 4 ) S E A L E D B U R N E R R A N G E T O P O V E R A L L D I M E N S I O N S Overall Width "...
  • Page 9 I N S TA L L AT I O N I N S T R U C T I O N S 4 8 " ( 1 2 1 9 ) S E A L E D B U R N E R R A N G E T O P COOKING SURFACE OVERALL...

  • Page 10: Explosion Hazard

    Natural gas and LP gas installations from 8,000' (2438 m) to 11,000' (3353 m) need the high altitude conver- sion kit. Contact your Wolf dealer for details. R E Q U I R E M E N T S...
  • Page 11 I N S TA L L AT I O N I N S T R U C T I O N S G A S S U P P LY R E Q U I R E M E N T S Before connecting the gas supply, make sure all valves are in a closed position.
  • Page 12 W O L F S E A L E D B U R N E R R A N G E TO P G A S S U P P LY G A S M A N I F O L D P R E S S U R E For Natural Gas: Standard orifices are set for 5"...

  • Page 13: Electrical Shock Hazard

    Do not use an adapter. Failure to follow these instructions can result in electric shock, fire or death. The Wolf sealed burner rangetop requires a 110/120 V AC electrical supply to operate the electronic ignition system. The 6' (1.8 m)
  • Page 14 Check that the shut-off valve is in the ON position. Check operation again; if the burners do not light properly at this point, contact a Wolf authorized service center. IMPORTANT NOTE: Initial lighting of the surface burners may take slightly longer, as air in the system must be purged before gas can be supplied to the burner.
  • Page 15 Neither this book nor any information or images contained herein may be copied or used in whole or in part without the express written permission of Wolf Appliance Company, LLC, an affiliate of Sub-Zero Freezer Company, Inc. ©Wolf Appliance Company, LLC all rights reserved.
  • Page 16 W O L F A P P L I A N C E C O M PA N Y, L L C P. O. B OX 4 4 8 4 8 M A D I S O N , W I 5 3 7 4 4 8 0 0 - 3 3 2 - 9 5 1 3 W O L FA P P L I A N C E .

This manual is also suitable for:

Srt366
