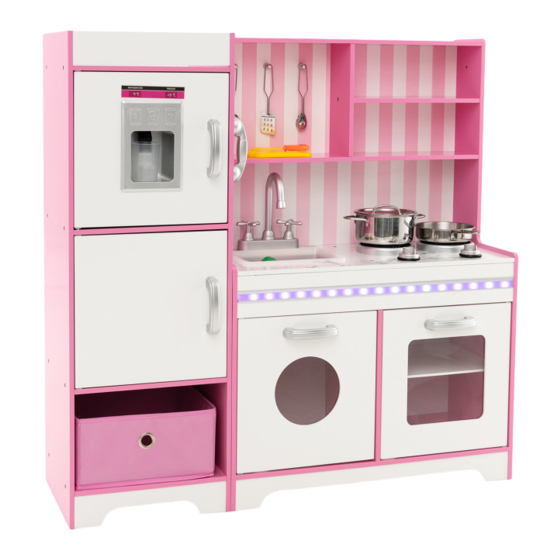

Toy Kitchen with Light
Cuisine Jouets avec Lumière
TP10131PI
USA office: Fontana
AUS office: Truganina
GBR office: Ipswich
FRA office: Saint Vigor d'Ymonville
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Advertisement
Related Manuals for Costway TP10131PI
Summary of Contents for Costway TP10131PI
- Page 1 Toy Kitchen with Light Cuisine Jouets avec Lumière TP10131PI USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Avant de Commencer Please read all instructions carefully and keep it for future reference. Veuillez lire attentivement toutes les instructions et les conserver pour la référence ultérieure. General Security Warning Avertissement de Sécurité Générale Caution: Children should use this product under the parental supervision. Attention : Les enfants doivent utiliser ce produit sous la surveillance de leurs parents. - Page 3 1 x1 2 x1 3 x1 20 x1 21 x1 22 x1 23 x1 4 x1 24 x1 26 x1 5 x1 6 x1 7 x1 25 x1 8 x1 9 x1 10 x1 11 x1 27 x1 28 x1 12 x1 13 x1 14 x1...
- Page 4 A x40 B x10 C x12 D x4 E x32 F x4 G x2 H x22 I x4 J x8 K x2 L x4 M x4 N x4 O x1 Use E screw to lock J(door pin) on No.4,5 and 24 panel. P x4 Q x2 Use C screw to lock M(handle) on No.4,5 and 24 panel.
- Page 5 Use B screw to lock O(tap) on No.9 panel. Use C screw to lock K(button) on No.9 panel. Use B screw to lock burner on No.9 panel. Utiliser la vis B pour verrouiller O (robinet) sur le panneau N° 9. Utiliser la vis C pour verrouiller K (bouton) sur le panneau N°...
- Page 6 Use A screw to lock No.2 Insert No.4 and 5 panel in panel on No.1 panel. No.2 panel via door pin. Utiliser la vis A pour verrouiller le Insérer les panneaux N° 4 panneau N° 2 sur le panneau N° 1. et 5 dans le panneau N°...
- Page 7 Put No.7 and 8 panel in backside groove. Placer les panneaux N° 7 et 8 dans la rainure arrière. Insert H(wooden dowels) in No.13 panel leftside, connect it to No.12 panel. Insert H (wooden dowels) in No.12 panel downside, connect it to No.10 panel, then use A screw to lock No.12 panel on No.10 panel.
- Page 8 Insert H(wooden dowels) in No.10,13 Insert H(wooden dowels) in No.10,11 and 14 panel rightside, connect it to and 14 panel leftside, connect it to No.1 panel, then use A screw to lock No.26 panel, then use A screw to lock them on No.1 panel.
- Page 9 Attention: How to use the electronic accessory? Here, No. 6 and 26 panel have a switch with Put No.24 panel in No.19 each other and the buyer must panel via door pin. connect them together to make it work. Placer le panneau N° 24 dans le Attention : Comment utiliser panneau N°...
- Page 10 Put No.25 panel in No.20 Insert H(wooden dowels) in panel via door pin. No.22 and 23 panel rightside, connect it to No.27 panel, then insert No.28 panel in backside groove. Placer le panneau N° 25 dans le Insérer H (chevilles en bois) dans panneau N°...
- Page 11 Finished the fridge assembly. Assemblage du réfrigérateur terminé. If buyer want to play it together, please joint them together. Put Q(female) in No.29 panel,then use Q(male) to screw it firmly. Attention: When you screw it, you must use something stick on one side, then you can easily screw it.
- Page 12 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
