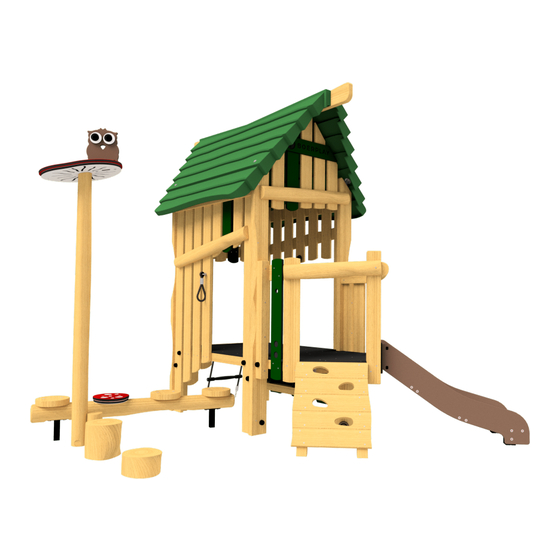

Climbing route Porcini
PSTE711.4-616

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSTE711.4-616 and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY PSTE711.4-616

Summary of Contents for BOERPLAY PSTE711.4-616

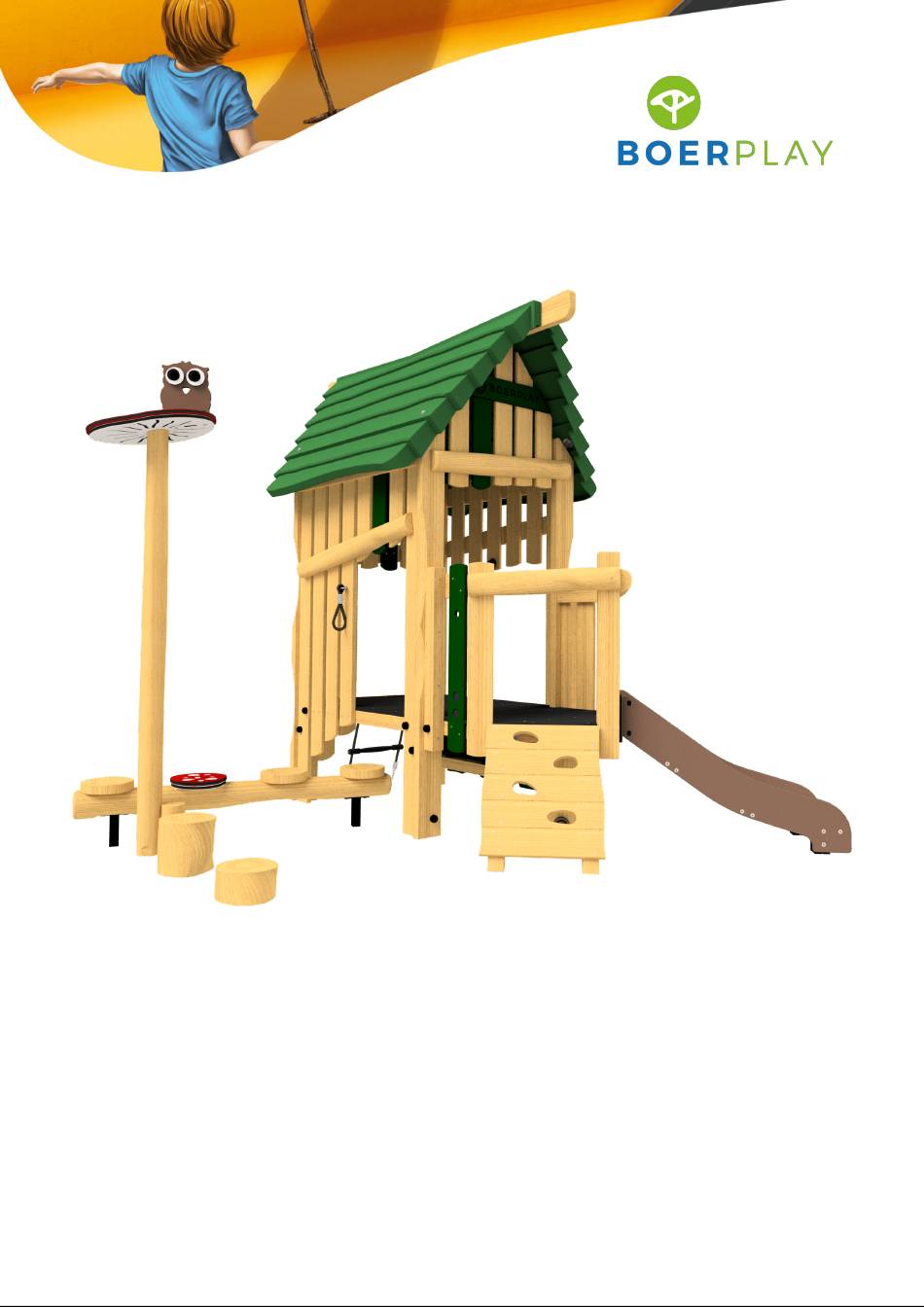

  • Page 1 Climbing route Porcini PSTE711.4-616...

  • Page 2: Installation Instructions

    Il est conseillé de ne pas orienter de Si le sol ne contribue pas à la stabilité de l’équipement à l’équipement avec toboggans vers le sud. placer, versez 50L de béton par poteau. © Copyright BOERplay 1-11-2023 Revision: PST 711 4-616...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 3,28 m 2,69 m 2,23 m 0,59 m 0,30 m 0,22 m 0,12 m 0,00 m © Copyright BOERplay 1-11-2023 Revision: PST 711 4-616...
  • Page 4 Zone libre d’obstacles 6,07 m 2,87 m 1,50 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles © Copyright BOERplay 1-11-2023 Revision: PST 711 4-616...
  • Page 5 1,59 m 0,00 m Detail (7x) Detail (1x) Detail (1x) Detail (1x) 0,35m 0,9m 0,6m 0,5m 0,2m 0,5m 0,25m 0,7m 0,7m 0,7m 0,7m Detail (1x) Detail (1x) 0,6m 0,5m 0,9m 0,2m 0,7m 0,7m © Copyright BOERplay 1-11-2023 Revision: PST 711 4-616...

  • Page 6: Assembly Manual

    - assembly manual - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD.PST.005.023 MOD.PST.005.024 MOD.PST.767.x MOD.PST.768.x MOD.PST.777.x MOD.PST.778.x MOD.PST.780.x MOD.PST.781.x MOD.PST.785 MOD.PST.786.x MOD.PST.787 © Copyright BOERplay 1-11-2023 Revision: PST 711 4-616...
  • Page 7 Benodigde gereedschappen Benötigtes Werkzeug Herramientas requeridas Outils nécessaires TX-25 TX-30 No. 17 (2x) No. 19 (2x) TX-30 No. 8 No. 10 Ø5 mm Ø8 mm Ø30 mm Ø13x400 mm © Copyright BOERplay 1-11-2023 Revision: PST 711 4-616...

  • Page 8: Order Of Assembly

    Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage MOD.PST.767.616 MOD.PST.768.062 589 mm 179 mm 149 mm 0 mm MOD.PST.785 1120 mm 790 mm 700 mm 0 mm © Copyright BOERplay 1-11-2023 Revision: PST 711 4-616...
  • Page 9 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage MOD.PST.777.062 MOD.PST.780.090 MOD.PST.781.032 © Copyright BOERplay 1-11-2023 Revision: PST 711 4-616...
  • Page 10 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage MOD.PST.786.032 MOD.PST.005.024 MOD.PST.005.023 MOD.PST.787 MOD.PST.778.082 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com © Copyright BOERplay 1-11-2023 Revision: PST 711 4-616...
  • Page 11 LOGBOOK Type indication Adventure Play Little Explorer Article number PSTE711.4-616 Product Name Climbing route Porcini Maximum fall height 0,6 m Construction year 2023 Certificate 071060 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen...
  • Page 12 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 13: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 14 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 15 Certificaat nr. 071060TG Pagina 1 van 2 Certificaat van goedkeuring op basis van een keuring van het typekenmerkend monster Warenwetbesluit attractie- en speeltoestellen 2023 Afgegeven door TÜV NORD Nederland B.V. (aangewezen bij besluit van de Minister van Volksgezondheid, Welzijn en Sport, Staatscourant jaargang 2022, nr.
  • Page 16 Certificaat nr. 071060TG Pagina 2 van 2 Dossier nr. 071060TG Uniek registratie nr. n.v.t. Warenwetbesluit attractie- en speeltoestellen 2023 Certificaat van goedkeuring op basis van een keuring van het typekenmerkend monster, afgegeven door TÜV NORD Nederland B.V. (aangewezen bij besluit van de Minister van Volksgezondheid, Welzijn en Sport, Staatscourant jaargang 2022, nr. 7583) Afbeeldingen / aanzichten van het toestel: In typenummer PST.711.4-x →...
  • Page 17 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 5 x 70 - RVS A2-70 Schroef Assy Plank 120x20 Lengte = 500 Paal 20-25 Lengte =800 Benaming MOD PST 005 023 Stapstam ø 0,2 m Title Tekening Opmerking MV+0,2 m Drawing Comment Datum Samenstelling module Assembly module 26-6-2018...
  • Page 18 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 5 x 70 - RVS A2-70 Schroef Assy Plank 120x20 Lengte = 500 Paal 20-25 Lengte =900 Benaming MOD PST 005 024 Stapstam ø 0,2 m Title Tekening Opmerking MV+0,3 m Drawing Comment Datum Samenstelling module Assembly module 26-6-2018...
  • Page 19 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module OHO.PST.591 OHO.PST.913 POL.PST.003.xxx SHO.PST.260.xxx SHO.PST.261.xxx SHO.PST.263.xxx SHO.PST.264 1 x BEV.PST.027.xxx SMD.PST.710 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 20 / 12 SHO.PST.263.062 SHO.PST.261.062 SMD.PST.710 Detail B (2x) Detail A (2x) KST.DOP.010.060 KST.DOP.010.060 KST.DON.010.060 KST.DON.010.060 BSR.030.010.002 BSR.030.010.002 BSR.021.010.070 BSR.021.010.050 70 mm 50 mm BSR.021.010.050 BSR.021.010.070 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 SHO.PST.261.xxx SHO.PST.263.xxx SMD.PST.710 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 21 / 12 SHO.PST.264 SHO.PST.260.062 Detail B (2x) Detail C (2x) KST.DOP.010.060 BSR.024.010.070 70 mm KST.DON.010.060 BSR.030.010.002 BSR.021.010.050 50 mm BSR.021.010.050 BSR.024.010.070 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 SHO.PST.260.xxx SHO.PST.264 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 22 / 12 ✔ Detail D (20x) Predrill NL: Voorboren Ø4 x 70mm DE: Vorbohren ES: Pretaladrar FR: Pré-percer 100 mm ✔ BSR.002.006.100 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 23 / 12 E (3x) Detail E (7x) Detail F (2x) BSR.002.005.050 BSR.002.005.070 50 mm 70 mm E (4x) BSR.002.005.050 BSR.002.005.070 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 24 / 12 Detail G (2x) BSR.011.010.020 BSR.030.010.002 OME.MNP.209.905 BSR.026.010.035 BSR.011.010.020 BSR.026.010.035 BSR.030.010.002 OME.MNP.209.905 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 25 / 12 OHO.PST.591 6 mm 500 mm 500 mm 6 mm Detail H (2x) BSR.030.010.002 Ø8 x 25mm BSR.022.010.040 Predrill NL: Voorboren DE: Vorbohren ES: Pretaladrar FR: Pré-percer BSR.022.010.040 BSR.030.010.002 OHO.PST.591 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 26 / 12 Detail I (2x) POL.PST.003.616 POL.PST.003.616 Detail J (4x) BSR.023.010.040 BSR.035.010.030 BSR.023.010.040 BSR.035.010.030 POL.PST.003.xxx © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 27 / 12 Detail K (6x) KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 KST.DON.010.060 BSR.030.010.002 KST.DOP.010.060 BSR.021.010.080 BSR.010.010.010 BSR.021.010.080 80 mm BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 28 / 12 KST.DON.010.060 Detail L (1x) BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 SNT.PST.010.xxx Detail M (1x) KST.DOP.010.060 BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 SNT.PST.009.xxx BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 SNT.PST.009.xxx SNT.PST.010.xxx © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 29 Detail N (1x) KST.DOP.010.060 KST.DON.010.060 BSR.030.010.002 BSR.030.010.002 KST.DOP.010.060 BSR.021.010.070 SNT.PST.011.xxx 70 mm KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 35 mm Ø Pre-drill Voorboren Vorbohren Pretaladrar Pré-percer BSR.010.010.010 BSR.021.010.070 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 SNT.PST.011.xxx © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 30 Predrill NL: Voorboren 1260 mm Ø4 x 70mm DE: Vorbohren ES: Pretaladrar FR: Pré-percer 1005 mm 100 mm 745 mm 490 mm 430 mm 876 mm 0 mm BSR.002.005.100 OHO.PST.913 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 31 / 12 Detail O (2x) KST.DON.010.060 BSR.030.010.002 100 mm BSR.021.010.100 KST.DOP.010.060 MOD.PST.777.x BSR.021.010.100 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
  • Page 32 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD PST 768 062 © Copyright BOERplay 2-6-2023 Revision: B...
  • Page 33 Detail A (4x) 70 mm BSR.002.005.070 SMD.PST.792.062 Detail B (4x) 100 mm BSR.002.006.100 B (2x) B (2x) 25 mm 25 mm BSR.002.005.070 BSR.002.006.100 SMD.PST.792.x MOD PST 768 062 © Copyright BOERplay 2-6-2023 Revision: B...
  • Page 34 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD PST 777 062 © Copyright BOERplay 5-6-2023 Revision: B...
  • Page 35 50 mm BSR.002.005.050 Detail C (4x) 160 mm OPE.PST.151.062 OHO.PST.877 OHO.PST.870 BSR.002.006.160 Detail D (2x) 100 mm OHO.PST.410.007 OHO.PST.876 BSR.002.006.100 BSR.002.005.050 BSR.002.005.070 BSR.002.005.100 BSR.002.006.160 OHO.PST.410.007 OHO.PST.870 OHO.PST.876 OHO.PST.877 OPE.PST.151.xxx SMD.PST.785 MOD PST 777 062 © Copyright BOERplay 5-6-2023 Revision: B...
  • Page 36 Detail D (3x) 100 mm OPE.PST.152.062 BSR.002.006.100 Detail B (2x) 50 mm BSR.002.005.050 OHO.PST.873 BOER PLAY maaiveld Mahfeld ground level sol naturel OPE.PST.153.082 BSR.002.005.050 BSR.002.006.100 OHO.PST.873 OPE.PST.152.xxx OPE.PST.153.xxx MOD PST 777 062 © Copyright BOERplay 5-6-2023 Revision: B...
  • Page 37 Detail A (8x) 70 mm BSR.002.005.070 Detail E (2x) 80 mm BSV.022.010.080 BSV.035.010.030 MOD.PST.767.x OHO.PST.211.090 A (4x) BSR.002.005.070 BSV.022.010.080 BSV.035.010.030 OHO.PST.211.090 MOD PST 777 062 © Copyright BOERplay 5-6-2023 Revision: B...
  • Page 38 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD PST 778 082 © Copyright BOERplay 26-4-2023 Revision: A...
  • Page 39 OPE.PST.158.082 OPE.PST.150.082 SME.PST.140.320 35 mm Detail A (10x) BSR.024.010.035 BSR.011.010.020 BSR.011.010.020 KST.DOP.006.030 BSR.030.010.002 BSR.024.010.035 BSR.030.010.002 KST.DOP.006.030 OPE.PST.150.xxx OPE.PST.158.xxx SME.PST.140.320 MOD PST 778 082 © Copyright BOERplay 26-4-2023 Revision: A...
  • Page 40 OPE.PST.149.082 Detail B (4x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.PST.149.xxx MOD PST 778 082 © Copyright BOERplay 26-4-2023 Revision: A...
  • Page 41 Detail C (4x) 100 mm BSR.024.010.100 BSR.030.010.002 BSR.011.010.020 KST.DOP.006.030 ORE.PST.001 ORE.PST.001 Detail D (2x) 40 mm ø3mm x 30 BSR.002.005.040 BSR.002.005.040 BSR.011.010.020 BSR.024.010.100 BSR.030.010.002 KST.DOP.006.030 OME.UKP.615.VZP OME.UKP.615.VZP ORE.PST.001 MOD PST 778 082 © Copyright BOERplay 26-4-2023 Revision: A...
  • Page 42 530 mm 360 mm OPE.PST.174.082 Detail E (4x) BSR.002.005.035 35 mm Detail F (2x) 130 mm BSR.030.010.002 KST.DON.010.060 BSR.021.010.130 KST.DON.010.060 KST.DOP.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.002.005.035 BSR.010.010.010 BSR.021.010.130 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 OPE.PST.174.xxx MOD PST 778 082 © Copyright BOERplay 26-4-2023 Revision: A...
  • Page 43 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD PST 780 090 © Copyright BOERplay 14-4-2023 Revision: A...
  • Page 44 Detail A (2x) BSR.030.010.002 KST.DON.010.060 BSR.010.010.010 KST.DOP.010.060 SNT.PST.039.090 40 mm Detail B (2x) BSV.020.006.040 BSV.035.006.020 BSV.035.006.020 BSV.010.006.006 OHO.PST.211.050 BSR.010.010.010 BSR.030.010.002 BSV.010.006.006 BSV.020.006.040 BSV.035.006.020 KST.DON.010.060 KST.DOP.010.060 OHO.PST.211.050 SNT.PST.039.xxx MOD PST 780 090 © Copyright BOERplay 14-4-2023 Revision: A...
  • Page 45 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 13-4-2023 Revision: MOD PST 781 032...
  • Page 46 OPE.PST.127.032 OPE.PST.126.006 OPE.PST.128.006 BSR.053.005.035 SMD.PST.767.032 A (8x) SHO.PST.273 OHO.PST.824.001 65 mm Detail A (8x) BSR.024.010.065 KST.DOP.006.030 BSR.024.010.065 OHO.PST.824.001 SHO.PST.273 SMD.PST.767.x KST.DOP.006.030 © Copyright BOERplay 13-4-2023 Revision: MOD PST 781 032...
  • Page 47 100 mm 100 mm BSR.022.010.100 BSR.022.010.100 SME.PST.141.372 SME.PST.141.372 BSR.022.010.100 SME.PST.141.372 © Copyright BOERplay 13-4-2023 Revision: PST 781 032...
  • Page 48 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD PST 785 © Copyright BOERplay 4-5-2023 Revision:...
  • Page 49 1200 mm 1120 mm OHO.PST.907 790 mm 700 mm Detail A (4x) 40 mm ø3mm x 30 BSR.002.005.040 OME.UKP.615.VZP 0 mm 0 mm OHO.PST.907 OME.UKP.615.VZP BSR.002.005.050 MOD PST 785 © Copyright BOERplay 4-5-2023 Revision:...
  • Page 50 Detail B (4x) KST.DON.010.060 120 mm BSR.030.010.002 BSR.021.010.120 BSR.010.010.010 KST.DOP.010.060 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 Detail C (4x) KST.DON.010.060 140 mm BSR.030.010.002 BSR.021.010.140 BSR.010.010.010 BSR.010.010.010 BSR.021.010.120 KST.DOP.010.060 BSR.021.010.140 BSR.030.010.002 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 KST.DON.010.060 KST.DOP.010.060 MOD PST 785 © Copyright BOERplay 4-5-2023 Revision:...
  • Page 51 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD PST 786 032 © Copyright BOERplay 11-5-2023 Revision:...
  • Page 52 Bevel the top Bovenkant afschuinen Detail A (3x) 100 mm BSR.002.006.100 SMD.PST.779.032 SHO.PST.102.001 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol BSR.002.006.100 SHO.PST.102.001 SMD.PST.779.x MOD PST 786 032 © Copyright BOERplay 11-5-2023 Revision:...
  • Page 53 Detail B (6x) 70 mm BSR.002.005.070 OHO.PST.210.050 OHO.PST.210.050 B (6x) OHO.PST.210.050 BSR.002.005.070 OHO.PST.210.050 MOD PST 786 032 © Copyright BOERplay 11-5-2023 Revision:...
  • Page 54 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 5-6-2023 Revision: MOD PST 787...
  • Page 55 BSR.002.005.050 50 mm Detail B (2x) Ø BSR.030.010.002 Pre-drill Voorboren Vorbohren Pretaladrar Pré-percer OME.VRB.830.304 OME.VRB.831.304 BSR.022.010.050 50 mm 75 mm 330 mm 75 mm 242 mm BSR.002.005.050 BSR.022.010.050 BSR.030.010.002 BSR.036.005.015 OME.VRB.830.304 OME.VRB.831.304 © Copyright BOERplay 5-6-2023 Revision: MOD PST 787...
  • Page 56 SHO.PST.278 B (2x) Detail B (2x) BSR.030.010.002 BSR.022.010.050 50 mm BSR.022.010.050 BSR.030.010.002 SHO.PST.278 © Copyright BOERplay 5-6-2023 Revision: MOD PST 787...
