BOERPLAY PSTE711.5-616 Installation Instructions Manual

Hide thumbs

page of 64

/ 64
Bookmarks

Quick Links

Download this manual

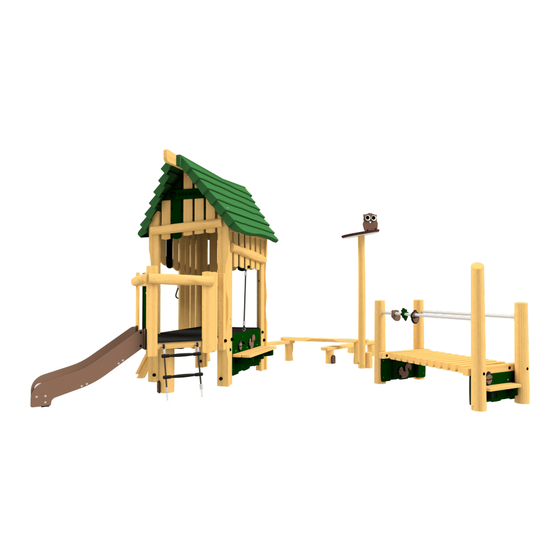

Kletterroute Zunderschwamm

PSTE711.5-616

Need help?

Do you have a question about the PSTE711.5-616 and is the answer not in the manual?

Questions and answers

Summary of Contents for BOERPLAY PSTE711.5-616

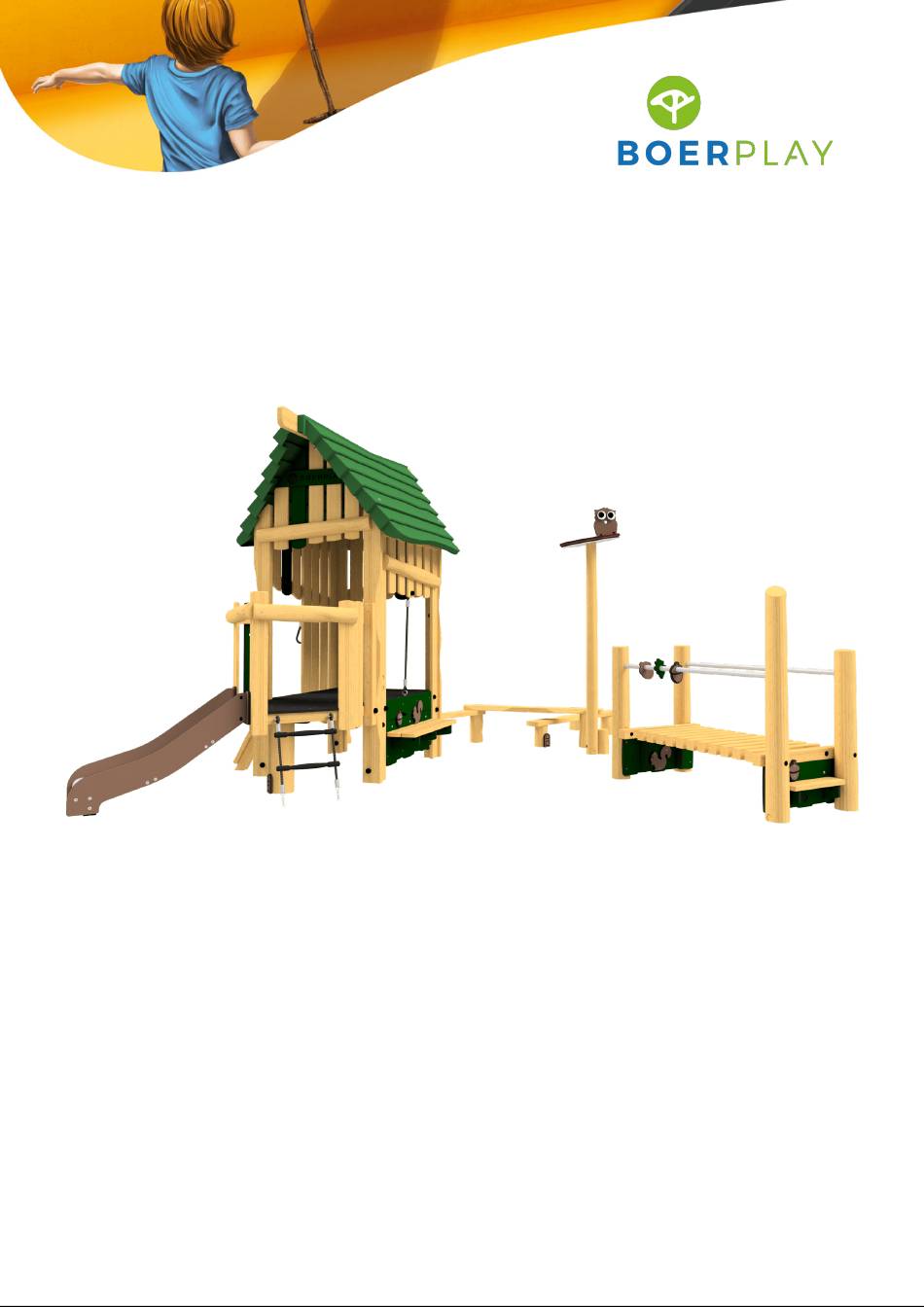

Page 1 Kletterroute Zunderschwamm PSTE711.5-616...
Page 2: Installation Instructions
Il est conseillé de ne pas orienter de Si le sol ne contribue pas à la stabilité de l’équipement à l’équipement avec toboggans vers le sud. placer, versez 50L de béton par poteau. © Copyright BOERplay 6-6-2023 Revision: PST 711 5-616...
Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 4,92 m 3,29 m 3,01 m 1,89 m 0,34 m 0,00 m 2,69 m 2,23 m 1,38 m 0,59 m 0,00 m © Copyright BOERplay 6-6-2023 Revision: PST 711 5-616...
Page 4 Zona libre de obstáculos Zone libre d’obstacles 8,05 m 2,87 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles © Copyright BOERplay 6-6-2023 Revision: PST 711 5-616...
Page 5 0,00 m 0,00 m Detail (2x) Detail (1x) Detail (1x) 0,35m 2,5m 1,7m 1,19m 0,8m 0,7m 0,7m 0,7m Detail (1x) Detail (1x) Detail (1x) 0,5m 0,5m 0,6m 0,2m 0,25m 0,5m 0,7m 0,7m 0,7m © Copyright BOERplay 6-6-2023 Revision: PST 711 5-616...
Page 6: Assembly Manual
- assembly manual - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD.PST.005.023 MOD.PST.005.024 MOD.PST.767.x MOD.PST.768.x MOD.PST.769.x MOD.PST.775.x MOD.PST.777.x MOD.PST.778.x MOD.PST.780.x MOD.PST.785 MOD.PST.786.x MOD.PST.787 MOD.PST.788.x © Copyright BOERplay 6-6-2023 Revision: PST 711 5-616...
Page 7 Benodigde gereedschappen Benötigtes Werkzeug Herramientas requeridas Outils nécessaires TX-25 TX-30 No. 17 (2x) No. 19 (2x) TX-30 No. 8 No. 10 Ø5 mm Ø8 mm Ø30 mm Ø13x400 mm © Copyright BOERplay 6-6-2023 Revision: PST 711 5-616...
Page 8: Order Of Assembly
Montagereihenfolge Orden de esemblado / 10 Ordre de montage MOD.PST.767.616 / 10 MOD.PST.768.062 589 mm 179 mm 149 mm 0 mm / 10 MOD.PST.785 1120 mm 790 mm 700 mm 0 mm © Copyright BOERplay 6-6-2023 Revision: PST 711 5-616...
Page 9 Montagevolgorde Montagereihenfolge / 10 Orden de esemblado Ordre de montage MOD.PST.777.062 / 10 MOD.PST.787 / 10 MOD.PST.778.082 MOD.PST.780.090 © Copyright BOERplay 6-6-2023 Revision: PST 711 5-616...
Page 10 Montagevolgorde Montagereihenfolge / 10 Orden de esemblado Ordre de montage MOD.PST.788.082 / 10 MOD.PST.786.032 MOD.PST.769.032 MOD.PST.005.023 © Copyright BOERplay 6-6-2023 Revision: PST 711 5-616...
Page 11 Montagevolgorde Montagereihenfolge / 10 Orden de esemblado Ordre de montage MOD.PST.775.062 / 10 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com © Copyright BOERplay 6-6-2023 Revision: PST 711 5-616...
Page 12 LOGBUCH Art der Anzeige Adventure Play Little Explorer Artikelnummer PSTE711.5-616 Gerätename Kletterroute Zunderschwamm Maximale Fallhöhe 0,6 m Baujahr 2023 Zertifikat 071061 Kontrollstelle TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Name des Herstellers Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Tel.: +31 (0)183 40 23 66...
Page 13 LOGBUCH Inspektion und Wartung Datum Zeit Name der Name des Zu ersetzende Inspektion Inspektion Defekte gefunden Exekutivinspektion Wartungsarbeiters Teile Wartung Wartung Unfälle Maßnahmen Alter des Mögliche Ursache für Unfalldatum Aufgetreten Verletzung Genommen nach Opfers Verletzungen den Unfall...
Page 14 Inspektions-und Wartungsintervalle Monaten Nr. Inspektion Wartung zwischen Inspektionen Stellen Sie die Geräte Stabilität sicher, Verbindungen und fehlende Teile. Überprüfen Montieren Sie fehlende Teile, sichere die Sie Bolzen, Schrauben und Muttern für Gelenke und ersetze korrodierte Teile. Abwesenheit, Korrosion und Verschleiß. Tauschen Sie verschlissene Teile und / Überprüfen Sie Aufhängung für Verschleiß.
Page 15 6. Überprüfen Sie das Gelände regelmäßig für Artikel, die dort nicht hingehören, gefährlich sind oder falsch verwendet werden. Beispiele dafür sind giftige Pflanzen, Glasscherben, usw. 7. Denken Sie daran, dass schlechte Wartung führt zu gefährlichen Situationen und schnellere Verarmung der Spielplatz.
Page 16 Certificaat nr. 071061TG Pagina 1 van 2 Certificaat van goedkeuring op basis van een keuring van het typekenmerkend monster Warenwetbesluit attractie- en speeltoestellen 2023 Afgegeven door TÜV NORD Nederland B.V. (aangewezen bij besluit van de Minister van Volksgezondheid, Welzijn en Sport, Staatscourant jaargang 2022, nr.
Page 17 Certificaat nr. 071061TG Pagina 2 van 2 Dossier nr. 071061TG Uniek registratie nr. n.v.t. Warenwetbesluit attractie- en speeltoestellen 2023 Certificaat van goedkeuring op basis van een keuring van het typekenmerkend monster, afgegeven door TÜV NORD Nederland B.V. (aangewezen bij besluit van de Minister van Volksgezondheid, Welzijn en Sport, Staatscourant jaargang 2022, nr. 7583) Afbeeldingen / aanzichten van het toestel: In typenummer PST.711.5-x →...
Page 18 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 5 x 70 - RVS A2-70 Schroef Assy Plank 120x20 Lengte = 500 Paal 20-25 Lengte =800 Benaming MOD PST 005 023 Stapstam ø 0,2 m Title Tekening Opmerking MV+0,2 m Drawing Comment Datum Samenstelling module Assembly module 26-6-2018...
Page 19 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 5 x 70 - RVS A2-70 Schroef Assy Plank 120x20 Lengte = 500 Paal 20-25 Lengte =900 Benaming MOD PST 005 024 Stapstam ø 0,2 m Title Tekening Opmerking MV+0,3 m Drawing Comment Datum Samenstelling module Assembly module 26-6-2018...
Page 20 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module OHO.PST.591 OHO.PST.913 POL.PST.003.xxx SHO.PST.260.xxx SHO.PST.261.xxx SHO.PST.263.xxx SHO.PST.264 1 x BEV.PST.027.xxx SMD.PST.710 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
Page 21 / 12 SHO.PST.263.062 SHO.PST.261.062 SMD.PST.710 Detail B (2x) Detail A (2x) KST.DOP.010.060 KST.DOP.010.060 KST.DON.010.060 KST.DON.010.060 BSR.030.010.002 BSR.030.010.002 BSR.021.010.070 BSR.021.010.050 70 mm 50 mm BSR.021.010.050 BSR.021.010.070 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 SHO.PST.261.xxx SHO.PST.263.xxx SMD.PST.710 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
Page 22 / 12 SHO.PST.264 SHO.PST.260.062 Detail B (2x) Detail C (2x) KST.DOP.010.060 BSR.024.010.070 70 mm KST.DON.010.060 BSR.030.010.002 BSR.021.010.050 50 mm BSR.021.010.050 BSR.024.010.070 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 SHO.PST.260.xxx SHO.PST.264 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
Page 25 / 12 Detail G (2x) BSR.011.010.020 BSR.030.010.002 OME.MNP.209.905 BSR.026.010.035 BSR.011.010.020 BSR.026.010.035 BSR.030.010.002 OME.MNP.209.905 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
Page 26 / 12 OHO.PST.591 6 mm 500 mm 500 mm 6 mm Detail H (2x) BSR.030.010.002 Ø8 x 25mm BSR.022.010.040 Predrill NL: Voorboren DE: Vorbohren ES: Pretaladrar FR: Pré-percer BSR.022.010.040 BSR.030.010.002 OHO.PST.591 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
Page 27 / 12 Detail I (2x) POL.PST.003.616 POL.PST.003.616 Detail J (4x) BSR.023.010.040 BSR.035.010.030 BSR.023.010.040 BSR.035.010.030 POL.PST.003.xxx © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
Page 28 / 12 Detail K (6x) KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 KST.DON.010.060 BSR.030.010.002 KST.DOP.010.060 BSR.021.010.080 BSR.010.010.010 BSR.021.010.080 80 mm BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
Page 29 / 12 KST.DON.010.060 Detail L (1x) BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 SNT.PST.010.xxx Detail M (1x) KST.DOP.010.060 BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 SNT.PST.009.xxx BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 SNT.PST.009.xxx SNT.PST.010.xxx © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
Page 30 Detail N (1x) KST.DOP.010.060 KST.DON.010.060 BSR.030.010.002 BSR.030.010.002 KST.DOP.010.060 BSR.021.010.070 SNT.PST.011.xxx 70 mm KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 35 mm Ø Pre-drill Voorboren Vorbohren Pretaladrar Pré-percer BSR.010.010.010 BSR.021.010.070 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 SNT.PST.011.xxx © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
Page 31 Predrill NL: Voorboren 1260 mm Ø4 x 70mm DE: Vorbohren ES: Pretaladrar FR: Pré-percer 1005 mm 100 mm 745 mm 490 mm 430 mm 876 mm 0 mm BSR.002.005.100 OHO.PST.913 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
Page 32 / 12 Detail O (2x) KST.DON.010.060 BSR.030.010.002 100 mm BSR.021.010.100 KST.DOP.010.060 MOD.PST.777.x BSR.021.010.100 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 © Copyright BOERplay 5-6-2023 Revision: A MOD PST 767 616...
Page 34 Detail A (4x) 70 mm BSR.002.005.070 SMD.PST.792.062 Detail B (4x) 100 mm BSR.002.006.100 B (2x) B (2x) 25 mm 25 mm BSR.002.005.070 BSR.002.006.100 SMD.PST.792.x MOD PST 768 062 © Copyright BOERplay 2-6-2023 Revision: B...
Page 36 50 mm BSR.002.005.050 Detail C (4x) 160 mm OPE.PST.151.062 OHO.PST.877 OHO.PST.870 BSR.002.006.160 Detail D (2x) 100 mm OHO.PST.410.007 OHO.PST.876 BSR.002.006.100 BSR.002.005.050 BSR.002.005.070 BSR.002.005.100 BSR.002.006.160 OHO.PST.410.007 OHO.PST.870 OHO.PST.876 OHO.PST.877 OPE.PST.151.xxx SMD.PST.785 MOD PST 777 062 © Copyright BOERplay 5-6-2023 Revision: B...
Page 37 Detail D (3x) 100 mm OPE.PST.152.062 BSR.002.006.100 Detail B (2x) 50 mm BSR.002.005.050 OHO.PST.873 BOER PLAY maaiveld Mahfeld ground level sol naturel OPE.PST.153.082 BSR.002.005.050 BSR.002.006.100 OHO.PST.873 OPE.PST.152.xxx OPE.PST.153.xxx MOD PST 777 062 © Copyright BOERplay 5-6-2023 Revision: B...
Page 38 Detail A (8x) 70 mm BSR.002.005.070 Detail E (2x) 80 mm BSV.022.010.080 BSV.035.010.030 MOD.PST.767.x OHO.PST.211.090 A (4x) BSR.002.005.070 BSV.022.010.080 BSV.035.010.030 OHO.PST.211.090 MOD PST 777 062 © Copyright BOERplay 5-6-2023 Revision: B...
Page 40 OPE.PST.158.082 OPE.PST.150.082 SME.PST.140.320 35 mm Detail A (10x) BSR.024.010.035 BSR.011.010.020 BSR.011.010.020 KST.DOP.006.030 BSR.030.010.002 BSR.024.010.035 BSR.030.010.002 KST.DOP.006.030 OPE.PST.150.xxx OPE.PST.158.xxx SME.PST.140.320 MOD PST 778 082 © Copyright BOERplay 26-4-2023 Revision: A...
Page 41 OPE.PST.149.082 Detail B (4x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.PST.149.xxx MOD PST 778 082 © Copyright BOERplay 26-4-2023 Revision: A...
Page 42 Detail C (4x) 100 mm BSR.024.010.100 BSR.030.010.002 BSR.011.010.020 KST.DOP.006.030 ORE.PST.001 ORE.PST.001 Detail D (2x) 40 mm ø3mm x 30 BSR.002.005.040 BSR.002.005.040 BSR.011.010.020 BSR.024.010.100 BSR.030.010.002 KST.DOP.006.030 OME.UKP.615.VZP OME.UKP.615.VZP ORE.PST.001 MOD PST 778 082 © Copyright BOERplay 26-4-2023 Revision: A...
Page 43 530 mm 360 mm OPE.PST.174.082 Detail E (4x) BSR.002.005.035 35 mm Detail F (2x) 130 mm BSR.030.010.002 KST.DON.010.060 BSR.021.010.130 KST.DON.010.060 KST.DOP.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.002.005.035 BSR.010.010.010 BSR.021.010.130 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 OPE.PST.174.xxx MOD PST 778 082 © Copyright BOERplay 26-4-2023 Revision: A...
Page 45 Detail A (2x) BSR.030.010.002 KST.DON.010.060 BSR.010.010.010 KST.DOP.010.060 SNT.PST.039.090 40 mm Detail B (2x) BSV.020.006.040 BSV.035.006.020 BSV.035.006.020 BSV.010.006.006 OHO.PST.211.050 BSR.010.010.010 BSR.030.010.002 BSV.010.006.006 BSV.020.006.040 BSV.035.006.020 KST.DON.010.060 KST.DOP.010.060 OHO.PST.211.050 SNT.PST.039.xxx MOD PST 780 090 © Copyright BOERplay 14-4-2023 Revision: A...
Page 49 1200 mm 1120 mm OHO.PST.907 790 mm 700 mm Detail A (4x) 40 mm ø3mm x 30 BSR.002.005.040 OME.UKP.615.VZP 0 mm 0 mm OHO.PST.907 OME.UKP.615.VZP BSR.002.005.050 MOD PST 785 © Copyright BOERplay 4-5-2023 Revision:...
Page 50 Detail B (4x) KST.DON.010.060 120 mm BSR.030.010.002 BSR.021.010.120 BSR.010.010.010 KST.DOP.010.060 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 Detail C (4x) KST.DON.010.060 140 mm BSR.030.010.002 BSR.021.010.140 BSR.010.010.010 BSR.010.010.010 BSR.021.010.120 KST.DOP.010.060 BSR.021.010.140 BSR.030.010.002 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 KST.DON.010.060 KST.DOP.010.060 MOD PST 785 © Copyright BOERplay 4-5-2023 Revision:...
Page 52 Bevel the top Bovenkant afschuinen Detail A (3x) 100 mm BSR.002.006.100 SMD.PST.779.032 SHO.PST.102.001 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol BSR.002.006.100 SHO.PST.102.001 SMD.PST.779.x MOD PST 786 032 © Copyright BOERplay 11-5-2023 Revision:...
Page 55 BSR.002.005.050 50 mm Detail B (2x) Ø BSR.030.010.002 Pre-drill Voorboren Vorbohren Pretaladrar Pré-percer OME.VRB.830.304 OME.VRB.831.304 BSR.022.010.050 50 mm 75 mm 330 mm 75 mm 242 mm BSR.002.005.050 BSR.022.010.050 BSR.030.010.002 BSR.036.005.015 OME.VRB.830.304 OME.VRB.831.304 © Copyright BOERplay 5-6-2023 Revision: MOD PST 787...
Page 58 OPE.PST.129.032 OPE.PST.126.006 OPE.PST.130.006 BSR.053.005.035 100 mm SMD.PST.768.032 BSR.002.006.100 SMD.PST.768.x BSR.002.006.100 © Copyright BOERplay 13-4-2023 Revision: A MOD PST 769 032...
Page 60 ≤ 40 mm openings >25 ≤ 40 mm > 25mm OHO.PST.862 OHO.PST.307.078 KET.006.002.116 BSR.002.005.050 BSR.030.012.003 BSR.010.012.012 KST.DOP.010.060 BSR.002.005.050 BSR.010.012.012 SME.PST.088.070 BSR.030.012.003 KST.RNG.005.008 BSR.031.006.000 BSR.031.006.000 KET.006.002.116 KST.DOP.010.060 KST.RNG.005.008 OHO.PST.307.078 OHO.PST.862 SME.PST.088.070 MOD PST 775 062 © Copyright BOERplay 17-11-2023 Revision: A...
Page 61 < 30 mm 1,08 m > 25mm 0,70 m 0,00 m BSR.070.012.260 BSR.030.012.003 BSR.010.012.012 KST.DOP.010.060 BSR.010.012.012 KST.DOP.010.060 OHO.PST.866 BSR.010.012.012 OHO.PST.898 BSR.030.012.003 BSR.070.012.260 KST.DOP.010.060 OHO.PST.865 KST.RNG.005.008 OHO.PST.865 OHO.PST.865 OHO.PST.866 OHO.PST.898 MOD PST 775 062 © Copyright BOERplay 17-11-2023 Revision: A...
Page 62 OHO.PST.211.160 OHO.PST.211.080 OHO.PST.211.160 BSV.022.010.080 BSV.035.010.030 OHO.PST.211.080 BSV.022.010.080 BSV.035.010.030 OHO.PST.211.080 OHO.PST.211.160 MOD PST 775 062 © Copyright BOERplay 17-11-2023 Revision: A...
Page 64 0,70 m 50 mm BSR.002.005.050 BSR.036.005.015 BSR.002.005.050 0,00 m BSR.036.005.015 SME.PST.139.320 Detail B (2x) KST.DOP.010.060 110 mm BSR.021.010.110 BSR.030.010.002 BSR.002.005.050 BSR.021.010.110 BSR.030.010.002 BSR.036.005.015 OPE.PST.154.082 KST.DOP.010.060 OPE.PST.159.062 OPE.PST.154.xxx OPE.PST.159.xxx OPE.PST.154.082 SME.PST.139.320 MOD PST 775 062 © Copyright BOERplay 17-11-2023 Revision: A...
