Summary of Contents for Hisense HV643D90

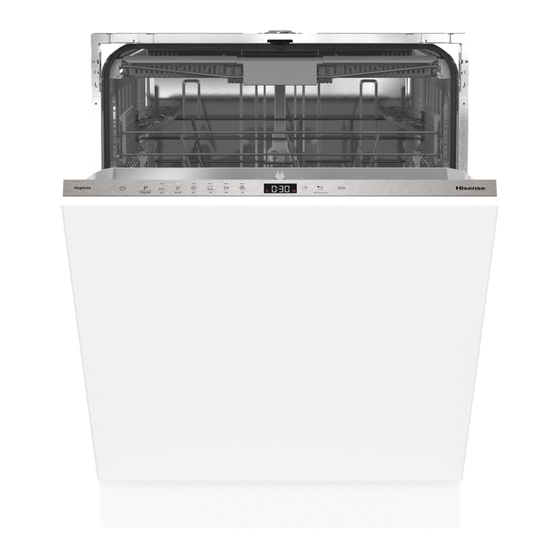

- Page 1 HV643D90 HV643D90UK...
-
Page 2: Table Of Contents
Contents Your dishwasher ........................Safety instructions ........................Installation ..........................Overflow guard function ......................Winter storage/transport ......................Packaging ..........................Disposal ............................ Before washing for the first time ................... Water hardness ......................... Basic settings ........................... Top up with rinse aid ........................ Top up with salt ........................Greener dishwashing ...................... - Page 3 Installation ..........................Safety instructions ........................Setup ............................Drainage connection ......................... Connection to water supply ...................... Electrical connection ......................... Service ............................. Technical data and energy labelling ..................Technical data ........................... Information for consumers ......................Information for test institute ......................
-
Page 4: Your Dishwasher
Your dishwasher Install the dishwasher, see the chapter Installation. Then open the door and press The first time the dishwasher is switched on, it is important that you choose the right settings to ensure good dishwashing results. See the chapter Before washing for the first time. On/Off Start/Stop Select program... -
Page 5: Safety Instructions
Safety instructions • Read the operating instructions and keep them in a safe place! • Number of standard place settings: 16 • Never use the dishwasher for any purpose other than that specified in these operating instructions. • Do not load the dishwasher door or dishwasher baskets with anything other than dishes. -
Page 6: Installation
• Children must be watched. Do not allow children to use or play with the dishwasher. Be especially vigilant when the door is open. Some detergent may remain inside! After adding detergent, always start the dishwasher immediately. WARNING! Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets. -
Page 7: Before Washing For The First Time
Before washing for the first time Water hardness In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dishes and the dishwasher. Checking water hardness Water hardness is specified using German degrees of water hardness (°dH), French degrees of water hardness (°fH), English degrees of water hardness (°eH) or millimoles per litre (mmol/l). -
Page 8: Basic Settings
Basic settings The first time the dishwasher is switched on, it is important that you choose the right settings to ensure good dishwashing results. See the chapter Settings. Set up: • Rinse aid • Water hardness • Top up with rinse aid Drying is faster and a better result is achieved if you use rinse aid. -
Page 9: Greener Dishwashing
Greener dishwashing Save energy and water When using a dishwasher in a residential setting, less energy and water are generally used compared to washing the dishes by hand. Do not rinse under running water Do not rinse the dishes under running water as this will lead to increased energy and water consumption. Simply scrape off large food particles before loading the dishwasher. -
Page 10: Loading The Dishwasher
Loading the dishwasher Fragile dishes Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand high heat, others can be damaged by dishwasher detergent. Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic. -
Page 11: Upper Basket
Upper basket Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right. 2 positions Knife stand Raising and lowering the upper basket... -
Page 12: Lower Basket
Lower basket Place plates, side plates, serving dishes and pots in the lower basket. Cutlery can be placed in the cutlery holder. Fit the cutlery holder to achieve maximum loading capacity. (Found inside the enclosed plastic bag.) Adjustable plate supports The adjustable plate supports can be folded down to make it easier to load pots and bowls. -
Page 13: Using The Dishwasher
Using the dishwasher Add detergent Follow the instructions on the detergent packaging. This dishwasher is fitted with a water softener, so use detergent and rinse aid doses suitable for soft water. Too much detergent can result in less effective dishwashing and also entails greater environmental impact. -
Page 14: On/Off
On/Off Start/Stop Select program Display NOTE! The control panel only reacts to use when the door is open. On/Off Open the door and press . Also turn on the water tap if it is turned off. Select program Select a program to suit the type of dishes and how dirty they are. Eco 55° is always pre-selected. Press one or more times until the desired program is activated, which is indicated by an indicator light. -
Page 15: Select Option
Glass 40° A gentle dishwashing program with a low temperature for washing fragile items made of crystal/glass. Remember to use a small amount of detergent and to place items so that they do not touch each other during the wash. See also Fragile dishes in the chapter Loading the dishwasher. Porcelain that has just been used without dried leftovers can also be washed using this program. -
Page 16: If You Want To Load More Dishes
Stopping or changing a program Open the door. If you want to interrupt or change the program after starting the dishwasher, press and hold for fi ve seconds. Top up with new detergent if the lid of the detergent dispenser has opened. Then select a new program, press and close the door. -
Page 18: Settings
Settings 1. Press 2. To open the dishwasher's settings menu, press and hold until SEt is shown on the display. 3. Press to step through the settings menu. 4. Press to step through the alternatives. 5. Confirm the selected setting by pressing 6. - Page 19 Settings Alternatives Pre-selected at factory: 00 Auto Dry 00 (Off) The dishwasher door opens automatically, which shortens 01 (On) the program time and improves the drying results. Wait until the dishwasher indicates that the program has ended and the dishes have cooled before unloading the dish- washer.
-
Page 20: Care And Cleaning
Care and cleaning Top up with rinse aid When the rinse aid needs topping up, the above symbol lights on the display. Press the elliptical protrusion above the lid while pulling upwards to open the lid 1. Open the rinse aid compartment lid. 2. -
Page 21: Clean Filter
Clean filter The filter traps larger food particles, which cannot get past the drainage pump. Empty the filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used. 1. Turn the locking ring anticlockwise and lift the filter straight up. 2. -
Page 22: Clean The Outside Of The Dishwasher
Upper spray arm • Pull out the upper basket. • Unscrew the spray arm bearings anticlockwise to remove the spray arm from the upper basket. Lower spray arm • Pull the lower spray arm straight up to release it. Clean the outside of the dishwasher Door and door seal Open the door. -
Page 23: Remove Blockages
Remove blockages Unblocking the drainage pump If the dishwasher still contains water after the program has finished, something may be blocking the drainage pump, which results in the Water outlet fault error message. 1. Turn off the machine using and remove the plug from the wall socket. 2. -
Page 24: Troubleshooting
Troubleshooting Error messages Action Water outlet fault See Water remains in the dishwasher in the table Problem below. If the problem persists, contact your nearest service centre. Water inlet fault Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked. - Page 25 Problem Possible causes Action The dishwasher does not start. has not been pressed. Press . The display starts counting down. The door is not properly closed. Check. You have opened the dishwash- Close the door and wait. After er to add more dishes while a a while, the dishwasher contin- program is in progress.
- Page 26 Problem Possible causes Action Dishes loaded incorrectly. Do not cover porcelain with large bowls or the like. Avoid placing very tall glasses in the corners of the baskets. See the chapter Loading the dishwash- Glasses and cups have toppled Place dishes to sit steady. over during the program.
- Page 27 Problem Possible causes Action The dishes have a sticky Rinse aid dosage setting too Reduce the dosage. See the white/blue film. high. chapter Settings. If you have very soft water, you may want to dilute the rinse aid 50:50 with water.
- Page 28 Problem Possible causes Action Grease deposits in the dish- Low temperature programs Select a program with a high washer. have been selected for a pro- temperature to dissolve grease longed period. on very dirty dishes, such as In- tensive 70°. Or run a self-clean- ing program.
-
Page 29: Installation
Installation It is important that you read through and follow the instructions and directions below. Conduct installation and connection in accordance with the separate installation instructions. [mm] 1152 Remove the plastic strips if the recess dimension is 596-598 mm. Exercise caution! The edges may be sharp. Wear protective gloves! Cover door length. -
Page 30: Drainage Connection
• If the dishwasher is built-in the surrounding furnishings must be resistant to any condensation from the dishwasher. • Mount the protective film beneath the worktop and up around the edge. The function of the protective film is to protect the worktop from moisture. (The protective film is in the enclosed plastic bag.) •... - Page 31 The electric wall socket must be placed outside of the installation area to be easily accessible after installing the dishwasher. Do not use an extension cord!
-
Page 32: Service
Read the chapter Troubleshooting before contacting the service centre. If you have encountered a problem that you cannot resolve, please contact your nearest service centre for professional help, see www.hisense.com. Our website also has information about spare part availability and what you can repair yourself. -
Page 33: Technical Data And Energy Labelling
In accordance with the EN 60436 standard. Information for consumers Information about your product can be found at global.hisense.com, where you will also find a link to the European Product Database for Energy Labelling, EPREL. Or else visit https://eprel.ec.europa.eu directly. Follow the instructions to search by model name. - Page 34 2. Lower baskets: Number Item Dinner plate Dessert plate Melamine bowl Soup plate Small pot Oven pot Oval platter Melamine dessert plate Dessert spoons Gravy ladle Saucer 3. Top cutlery tray Number Item Tea spoons Dessert spoons Soup spoons Forks Knives Serving fork...
- Page 35 We reserve the right to make changes. 12147372-A...
