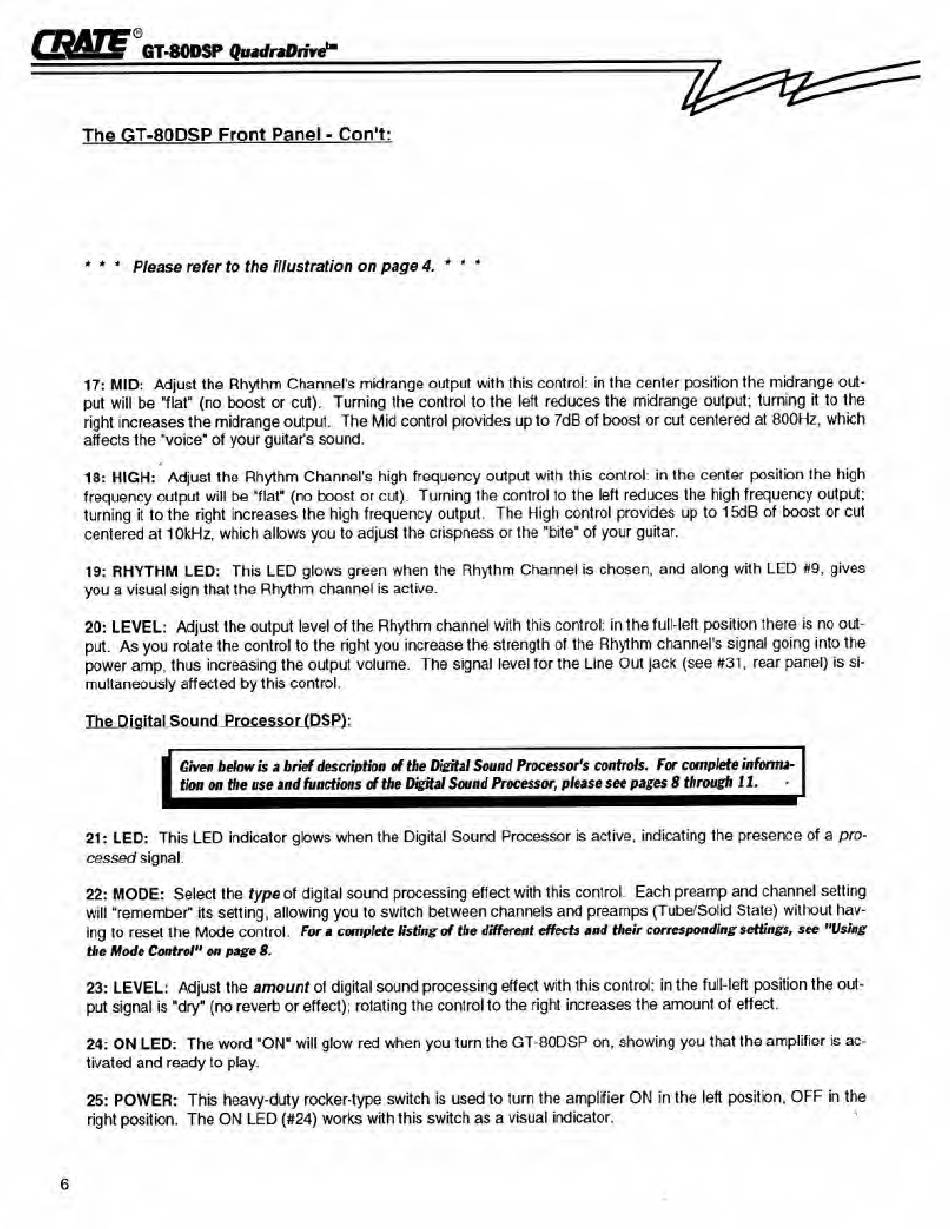

Crate QuadraDrive GT-80DSP Owner's Manual page 6

CRAJ1E GT-80DSP QuadraDrive'"
The GT-80DSP Front Panel - Con't:
* * * Please refer to the illustration on page 4. * ' *
17: MID: Adjust the Rhythm Channel's midrange output with this control: in the center position the midrange out¬
put will be 'flat" (no boost or cut). Turning the control to the left reduces the midrange output; turning it to the
right increases the midrange outpul. The Mid control provides up to 7dB of boost or cut centered at 800Hz. which
affects the 'voice' of your guitar's sound.
18: HIGH: Adjust the Rhythm Channel's high frequency output with this control: in the center position the high
frequency output v/ill be "flat" (no boost or cut). Turning the control to the left reduces the high frequency output:
turning it to the right increases the high frequency output. The High control provides up to 15dB of boost or cut
centered at 10kHz, which albws you to adjust the crispness or the 'bite' of your guitar.
19: RHYTHM LED: This LED glows green when the Rhythm Channel is chosen, and along v/ith LCD #9, gives
you a visual sign that the Rhythm channel is active.
20: LEVEL: Adjust the output level of the Rhythm channel with this control: in the full-left position there is no out¬
put. As you rolate the control to the right you increase the strength of the Rhylhm channel's signal going into the
power amp. thus increasing the output vetume. The signal level tor the Line Out jack (see #31. rear panel) is si¬
multaneously affected by this control.
Ibe Digital Sound Processor (DSP):
I
Gtvea below is a brief description of the Digital Sound Processor's controls. For complete informa-
|| tion on the use and functions of the Digital Sound Processor, please see pages 8 through 11.
21: LED: This LED indicator glows when the Digital Sound Processor is active, indicating the presence of a pro¬
cessed signal
22: MODE: Select the type of digital sound processing effect with this control. Each preamp and channel setting
will 'remember' its setting, allowing you to switch between channels and preamps (Tube'Sotid State) williout hav¬
ing to reset the Mode control. Fora complete listing of the different effects and their corresponding settings, see "Usiag
the Mode Control" on page 8.
23: LEVEL: Adjust the amount of digital sound processing effect with this control: in the full-left position the out¬
put signal is "dry' (no revert or effect); rolating the control to the right increases the amount ot ettect.
24: ON LED: The word 'ON" will glow red when you turn tho GT GODSP on. showing you that the amplifier is ac¬
tivated and ready to play.
25: POWER: This heavy-duty rocker-type switch is used to turn the amplifier ON in the left position. OFF in the
right position. The ON LED (#24) works with this switch as a visual indicator.
6
