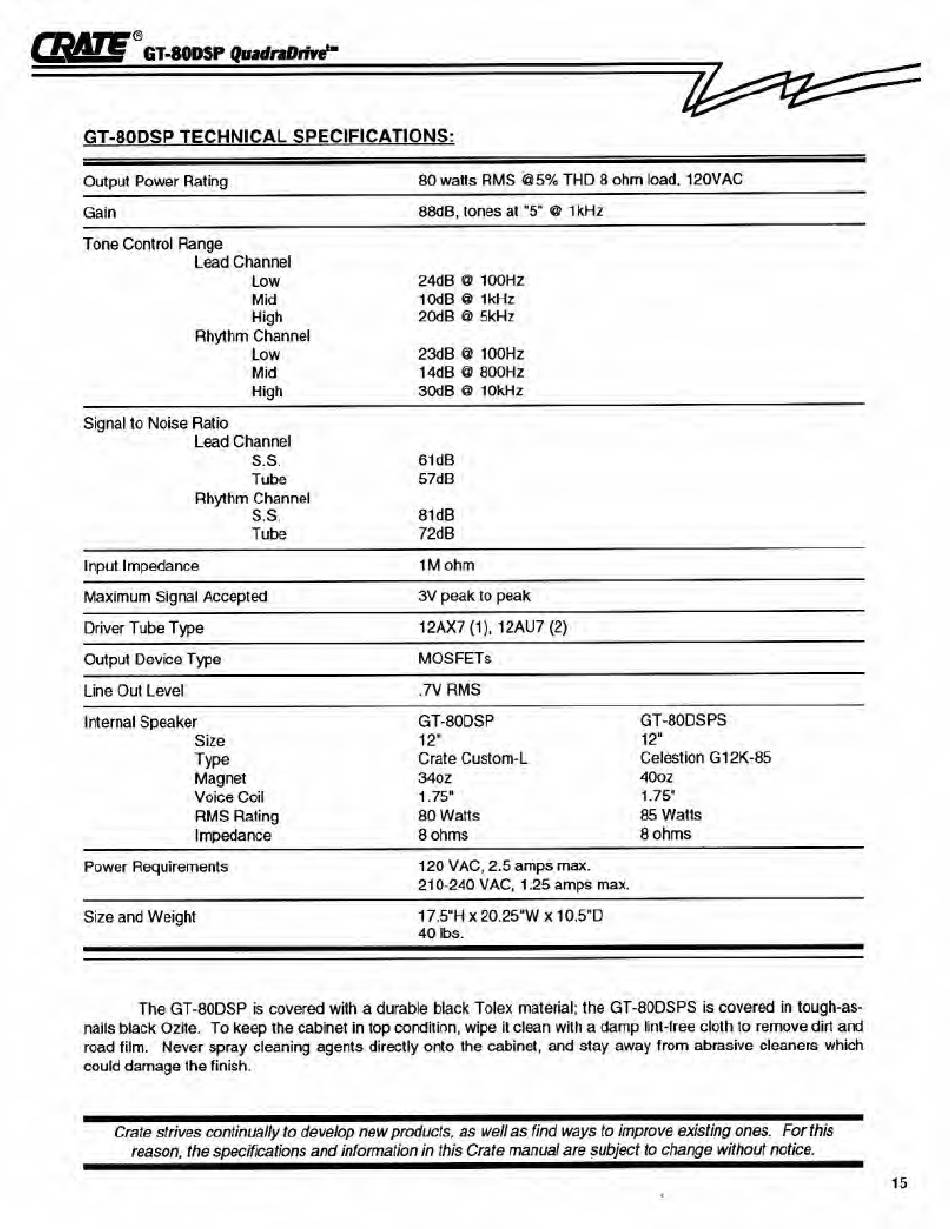

Crate QuadraDrive GT-80DSP Owner's Manual page 15

QuadraDrive'"
Output Power Rating
80 watts RMS @5% THD 8 ohm toad. 120VAC
Gain
88dB, tones at "5' © 1kHz
Tone Control Range
Lead Channel
Low
Mid
High
Rhythm Channel
Low
Mid
High
24dB © 100Hz
10dB 0 Ikllz
20dB © 5kHz
23dB © 100Hz
14dB © 800Hz
30dB 0 10kHz
Signal to Noise Ratio
Lead Channel
S.S.
Tube
Rhythm Channel
S.S.
Tube
61 dB
57dB
81dB
72dB
Input Impedance 1M ohm
Maximum Signal Accepted
rTriwnr Ti iKn "T~\ A
3V peak to peak
12AX7 (1). 12AU7 (2)
MOSFETs
L/river i udg i ype
Output Dovico Typo
Line Out Level
.7V RMS
Internal Speaker
Size
Type
Magnet
Voice Coil
RMS Rating
Impedance
GT-80DSP
12*
Crate Custom-L
340Z
1.75"
80 Watts
8 ohms
GT-80DSPS
12"
Celestion G12K-85
40OZ
1.75-
85 Watts
8 ohms
Power Requirements
120 VAC, 2.5 amps max.
210-240 VAC, 1.25 amps max.
Size and Weight
17.5"Hx20.25-W xl0.5"D
40 lbs.
The GT-80DSP is covered with a durable black Tolex material; the GT-80DSPS is covered in tough-as-
nails black Ozile. To keep the cabinet in top condition, wipe it clean with a damp lint-tree cloth to remove dirt and
road film. Never spray cleaning agents directly onto the cabinet, and stay away from abrasive cleaners which
could damage the finish.
Crate strives continually to develop
new
products, as well as find
ways
to improve existing ones. For this
reason, the specifications and information in this Crate manual are subject to change without notice.
15
