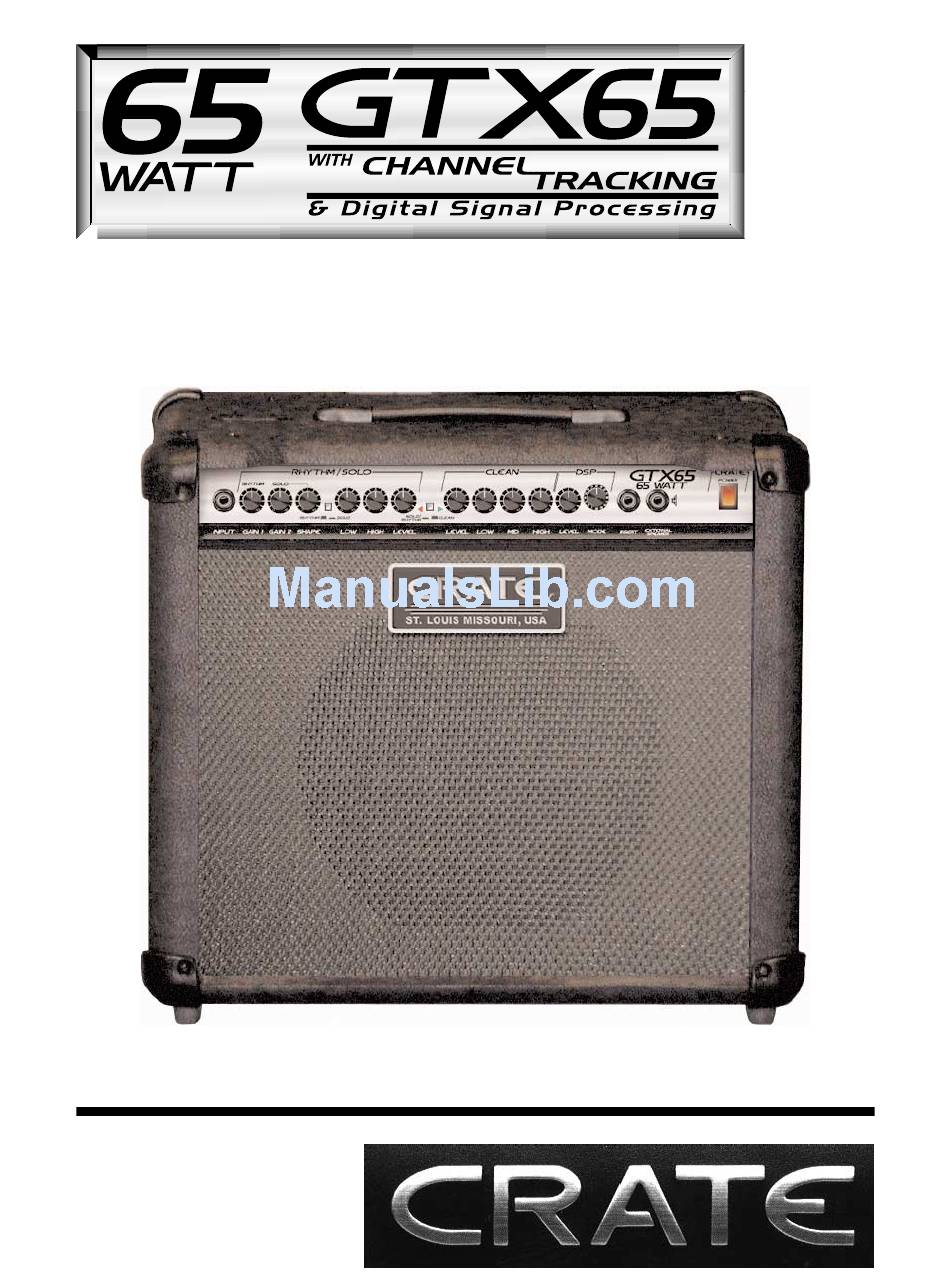

- Page 1 Owner’s Manual...
-
Page 2: Table Of Contents
& Congratulations! You are now the proud owner of the Crate GTX65 amplifier. This rugged amplifier combines out- standing features with serious clean and distorted sounds. An easy to operate DSP section lets you dial in a variety of digital effects including reverbs, delays, octave and wah-wahs – with a separate level control. -
Page 3: The Digital Signal Processor
Channel Tracking: Your Crate GTX65 gives you the power of Channel Tracking! Once you select a DSP setting for each channel, Channel Tracking recalls those DSP settings automatically – without changing the DSP controls! For example: •... -
Page 4: The Front Panel
GTX65 Guitar Amplifier with hannel racking & The Front Panel: 1: INPUT: Use this 1/4” jack to connect your guitar to the amplifier by means of a shielded instrument cable. RHYTHM/SOLO CHANNEL: A high gain channel giving you sounds from a slight edge to serious overdrive. - Page 5 If the fuse opens, replace it ONLY with the same size and type. If fuses continue to fail, check the AC source – if the source is okay, contact your Crate dealer for service information.
-
Page 6: Suggested Settings
GTX65 Guitar Amplifier with hannel racking & Suggested Settings: "Sweet 'n Clean" "Just a 'Lil Nasty" "Pol "Octave Down 'n Dirty" "Wah Full H "Mean & Obscene" IN IN... -
Page 7: System Block Diagram
GTX65 Guitar Amplifier with hannel racking & System Block Diagram: CLEAN CHANNEL CHANNEL BUFFER INPUT SELECT LEVEL MID HIGH FLEX WAVE STAGE RHYTHM/SOLO CHANNEL SHAPE ACTIVE GAIN 2 HIGH LEVEL GAIN 1 SHAPE INSERT LEVEL POWER SPEAKER MODE DAMPING EXT. - Page 8 17-1/2” H x 20” W x 11” D, 34 lbs. The GTX65 is covered with a durable charcoal gray Tolex material: wipe it clean with a lint-free cloth. Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish.
