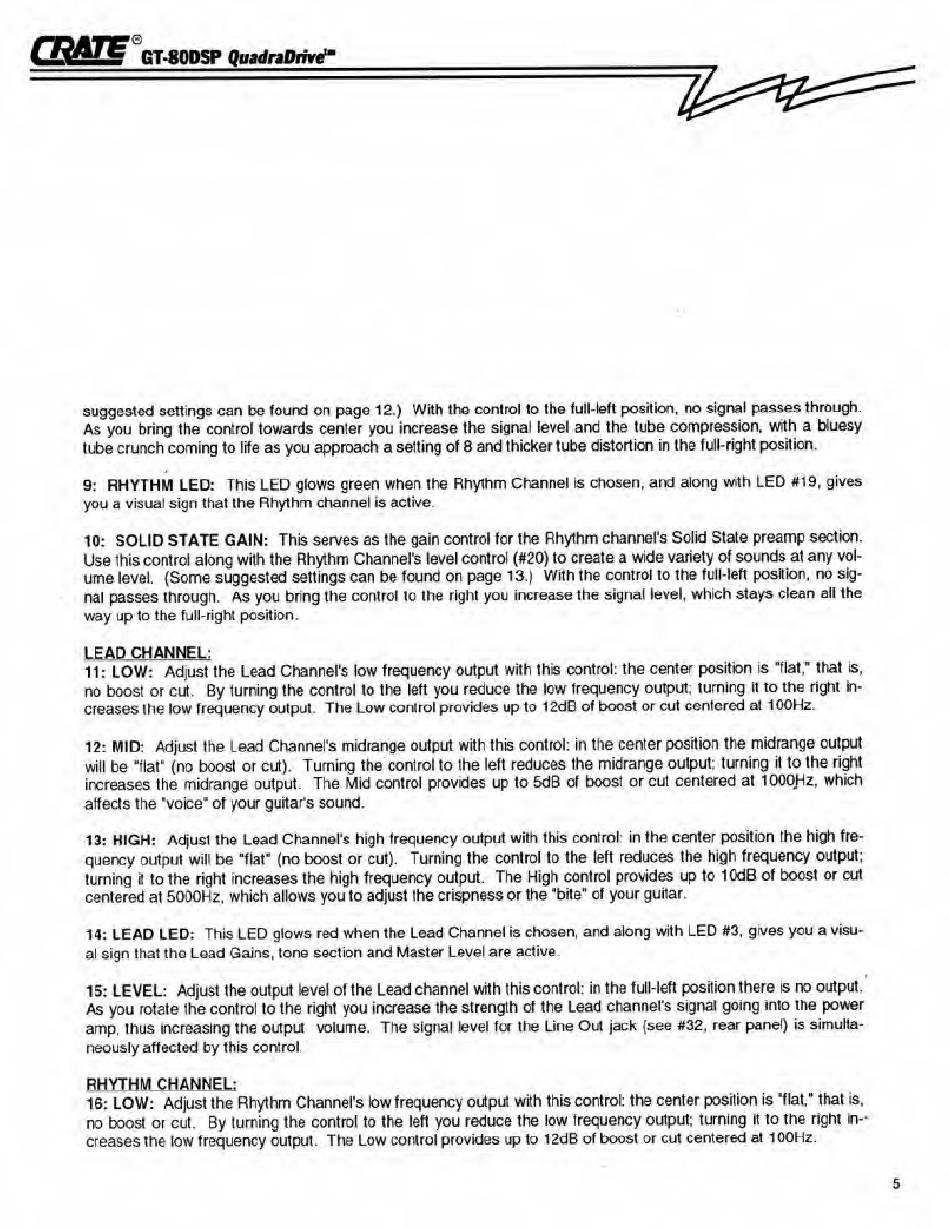

suggested settings can be found on page 12.) With tho control to the full-left position, no signal passes through
As you bring the control towards center you increase the signal level and the tube compression, with a bluesy
tube crunch coming to life as you approach a setting of 8 and thicker tube distortion in the full-right position.
9: RHYTHM LED: This LED glows green when the Rhylhm Channel is chosen. and along wth LED #19, gives
you a visual sign that the Rhythm channel is active.
10: SOLID STATE GAIN: This serves as the gain control for the Rhythm channel's Solid State preamp section.
Use this control along with the Rhythm Channel's level control (#20) to create a wide variety of sounds at any vol¬
ume level. (Some suggested settings can be found on page 13.) With the control to the full-left position, no sig¬
nal passes through. As you bring the control to the right you increase the signal level, which stays clean all the
way up to the full-right position.
LEAP_CHANNEL;
11: LOW: Adjust the Lead Channel's low frequency output with this control: the center position is "flat: that is.
no boost or cut. By turning the control to the left you reduce the low trequency output; turning it to the right in¬
creases the low trequency output. The Low control provides up to 12dG of boost or cut centered at 100Hz.
12: MID: Adjust the Lead Channel's midrange output with this control: in the center position the midrange output
will be "flat" (no boost or cut). Turning the control to the left reduces the midrange output; turning it to the right
increases the midrange output. The Mid control provides up to 5dB of boost or cut centered at 1000Hz, which
atfects the 'voice- ot your guitar's sound.
13: HIGH: Adjust the Lead Channel's high frequency output with this control in the center position the high fre¬
quency output will be "flat" (no boost or cut). Turning the control to the left reduces the high frequency output;
turning it to the right increases the high frequency output. The High control provides up to ICdB of boost or cut
centered at 5000Hz, which allows you to adjust the crispness or the "bite" of your guitar.
14: LEAD LED: This LED glows red when the Lead Channel is chosen, and along with LED #3, gives you a visu¬
al sign that tho Load Gains, tone section and Master Level are active
15: LEVEL:
Adjust the output level of the Lead channel with this control: in the full-left position there is no output.
As you rotate the control to the right you increase the strength of the Lead channel's signal going into the power
amp, thus increasing the output volume. The signal level to* the Line Out jack (see #32. rear panel) is simulta¬
neously affected by this control
RHYTHM CHANNEL;
16: LOW: Adjust the Rhythm Channel's low frequency output with this control: the center position is 'flat." that is.
no boost or cut. By turning the control to the left you reduce the low frequency output; turning it to the right
m--
creases the low trequency output. The Low control provides up to 12dB of boost or cut centered at 100Hz.
