User Manual

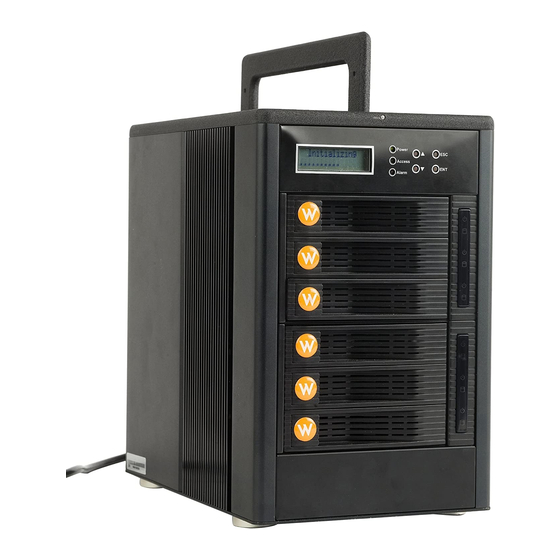

(Models RTX400-UR, RTX400H-UR, RTX600-UR, RTX600H-UR, RTX800-UR)
Thank you for purchasing WiebeTech's RTX-UR, a high-performance RAID subsystem with the ultimate
in data-protection capabilities! This Quick Start Guide covers the essentials for getting your product up-
and-running quickly. For more comprehensive technical information, see the full User's Manual.
capability (up to 8 Terabytes)
State-of-the-art RAID controller allows volumes larger than 2TB, using RAID levels 0, 1+0, 3, 5, 6
•
or JBOD
RTX400-UR can be expanded to have 8 hard drives in its RAID when connected to a separate 4-
•
bay JBOD enclosure using the Infiniband expansion port.
Sturdy aluminum case provides excellent heat dissipation and rugged durability
•
Heavy-duty handle allows for easy transport
•
Table of Contents
Pre-installation steps
Hard Drive Installation
Setting up your RTX
Accessing the configuration GUI
RAID selection
RAID configuration
Connecting the RTX to your computer
Working with Volumes over 2TB in size
Warnings and Notices
Usage with Macintosh Computers
Usage with Windows Computers
FAQ
Technical Specifications
R T X 4 0 0 - U R & R T X 6 0 0 - U R U s e r ' s M a n u a l
RTX-UR™
Quick Start Guide
Revised July 29, 2008
Features
TrayFree™ technology! RTX-UR
•
doesn't force you to install your hard
drives into trays. Simply slip in a
SATA drive and shut the door.
All-metal construction. RTX
•
Hardened units now have all-metal
bays that feature 2 LEDs for power
and access
Ultra fast Ultra320 SCSI connection
•
Its attractive design takes up little
•
desktop space, occupying a tiny
footprint for so much storage
2
4
5
5
7
8
9
10
10
11
11
12
13
- 1 -
Advertisement
Related Manuals for WiebeTech RTX400-UR
Summary of Contents for WiebeTech RTX400-UR
- Page 1 State-of-the-art RAID controller allows volumes larger than 2TB, using RAID levels 0, 1+0, 3, 5, 6 • or JBOD RTX400-UR can be expanded to have 8 hard drives in its RAID when connected to a separate 4- • bay JBOD enclosure using the Infiniband expansion port.
- Page 2 WiebeTech LLC Pre-Installation Steps Check the accessories with your RTX-UR. Please contact WiebeTech if any parts are missing or damaged. The box should contain the following items: RTX400-UR, RTX400H-UR & RTX600H-UR Accessories SCSI Cable RS-232 Configuration Cable Power Cable Packet of Keys Manual and Warranty Info Take a moment to familiarize yourself with the parts of the RTX-UR.
- Page 3 WiebeTech LLC Hardened Bay Key lock Ejection handle Access LED Power LED Standard Bay Key lock Ejection handle Access LED Power LED Basic Bay Ejection handle (Optional) Install a SCSI host bus adapter (HBA) into an empty expansion slot inside your computer.
-
Page 4: Hard Drive Installation
WiebeTech LLC Hard Drive Installation If you purchased your RTX with pre-configured drives, you may skip to the next section. Install a SATA (Serial-ATA) hard drive into each bay. With TrayFree™ technology, this process couldn’t be easier! Simply pull the ejection handle to open the bay door, slide in your SATA drive, and shut the door behind it. -
Page 5: Connect The Rtx To Your Network Or Computer For Configuration
WiebeTech LLC Configuring Your RTX To create a new RAID and data volume, follow the steps below. If you purchased your RTX pre- configured, you may skip to the last step (connecting the RTX to your computer). Connect the RTX to Your Network or Computer for configuration. -
Page 6: If You Are Connected Directly To A Computer
WiebeTech LLC Scroll up or down to find Static. Press ENT. Change the IP address to closely match what your computer is using. For example, if your computer's IP address is 192.168.000.009 you could change the RTX's IP to 192.168.000.007. Everything but the last set of three digits must be the same! When changing the IP address you'll notice that a box flashes over the digit to be changed. - Page 7 WiebeTech LLC Consider your RAID type. unit.) A RAID (Redundant Array of Independent Disks) is an array of multiple hard drives that are combined in a way that provides faster performance and/or data safety. Your RTX unit is capable of creating and managing several different varieties of RAID.
- Page 8 Use the default settings on the next screen. You’ll need to confirm your selections. * With the RTX400-UR, the number of drives contained in the RAID group can be as high as eight using the Infiniband expansion port on the rear of the unit. This port allows you to connect another 4-bay JBOD eSATA enclosure (e.g.
- Page 9 WiebeTech LLC Connect the RTX to your computer for data access. First, make sure your computer is turned off. Plugging a SCSI cable into a live host could cause damage to the host. Besides, since SCSI is not hot-swappable your computer would not see the RTX until it is restarted.
- Page 10 WiebeTech LLC Working with Volumes over 2TB (2,000GB) in size Although the RTX can create volumes larger than 2TB, operating systems cannot usually access such volumes. This is because most systems support only 32-bit LBA (Logical Block Addressing). Newer operating systems (Windows Server 2003, Vista, Mac OS 10.5.x) should be able to use 2TB+ volumes without difficulty.
- Page 11 WiebeTech LLC • Before starting any type of hardware installation, please ensure that all power switches have been turned off and all power cords have been disconnected to prevent personal injury and damage to the hardware. • To avoid overheating, RTX should be operated in a well-ventilated area and in such a way that sufficient airflow is maintained across the controller chips.
- Page 12 WiebeTech LLC Frequently Asked Questions (FAQ) I’ve formatted the RTX’s drive, and my disk utility reports that a volume was successfully created, but I can’t find the volume or access it. Try restarting your computer. Sometimes this is a necessary step before a new volume will become usable.
-
Page 13: Technical Specifications
Dimensions: Warranty: RTX and TrayFree are trademarks of WiebeTech LLC. Other marks are the property of their respective owners. © 2008 WiebeTech LLC. All rights reserved. FCC Compliance Statement: “This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”...
