• Each SATA hard drive has its own data channel for maximum speed.
• Bays are lockable for added security.
• Its attractive design takes up little desktop space, occupying a tiny footprint for so much storage
capability (up to 2 Terabytes).
• Sturdy aluminum case provides excellent heat dissipation and rugged durability.
Table of Contents
Before Installation
Contents of the box
Identifying the parts of the product
Hardware Setup
Installing hard drives
Connecting to a computer
Usage with Macs
Usage with Windows computers
Warnings and Notices
Technical Specifications
R T X 2 0 0 H - S J U s e r M a n u a l

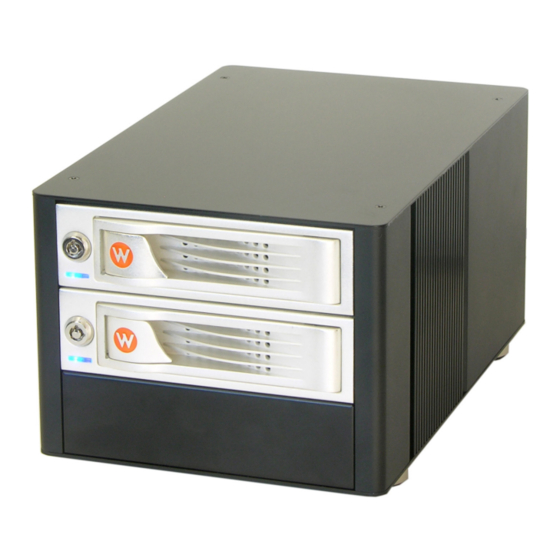

RTX200H-SJ
USER'S MANUAL
Revised January 24, 2008
Features
• TrayFree™ technology! RTX200H-SJ can be used without the
use of trays. Simply slip in a SATA drive and shut the door.
• All-metal bays make a fully hardened enclosure.
metal bays also have 2 LEDs for power and access.
• Connects to your computer through a fast eSATA connection.
• Built-in shock absorption helps protect your hard drives. The
specially-designed SATA drive interface is built to withstand
thousands of drive insertions.
2
2
2
3
3
3
4
4
4
5
These new
- 1 -
Advertisement
Table of Contents
Related Manuals for WiebeTech RTX200H-SJ
Summary of Contents for WiebeTech RTX200H-SJ
- Page 1 USER’S MANUAL Revised January 24, 2008 Features • TrayFree™ technology! RTX200H-SJ can be used without the use of trays. Simply slip in a SATA drive and shut the door. • All-metal bays make a fully hardened enclosure. metal bays also have 2 LEDs for power and access.
-
Page 2: Before Installation
The box should contain the following items: RTX200H-SJ enclosure eSATA cables Power cord Packet of keys Manual and Warranty information Familiarize yourself with the parts of your RTX200H-SJ. This knowledge will be useful during hardware setup. Hardened Bay Key lock Ejection handle Access LED... -
Page 3: Hardware Setup
Insert the other ends into eSATA ports on the computer. Your RTX200H-SJ is now ready to use! Turn on the power switch on the back of the unit. If your drives are already formatted, you can begin using them right away. New hard drives will need to be formatted before they can be used. -
Page 4: Usage With Macintosh Computers
Ejecting Volumes You will not be able to eject the RTX200H-SJ like you can with devices that connect via FireWire or USB. Make sure no applications are accessing data from the drives before powering off the unit. Turning off the RTX200H-SJ during hard drive access could result in data loss. -
Page 5: Technical Specifications
90 days of free phone support (1-866-744-8722). After 90 days, email support is available at support@wiebetech.com. RTX and TrayFree are trademarks of WiebeTech LLC. Other marks are the property of their respective owners. © 2008 WiebeTech LLC. All rights reserved.
