Adjustment Procedures 81~83 - Alpine IVA-M700R Service Manual

IVA-M700R

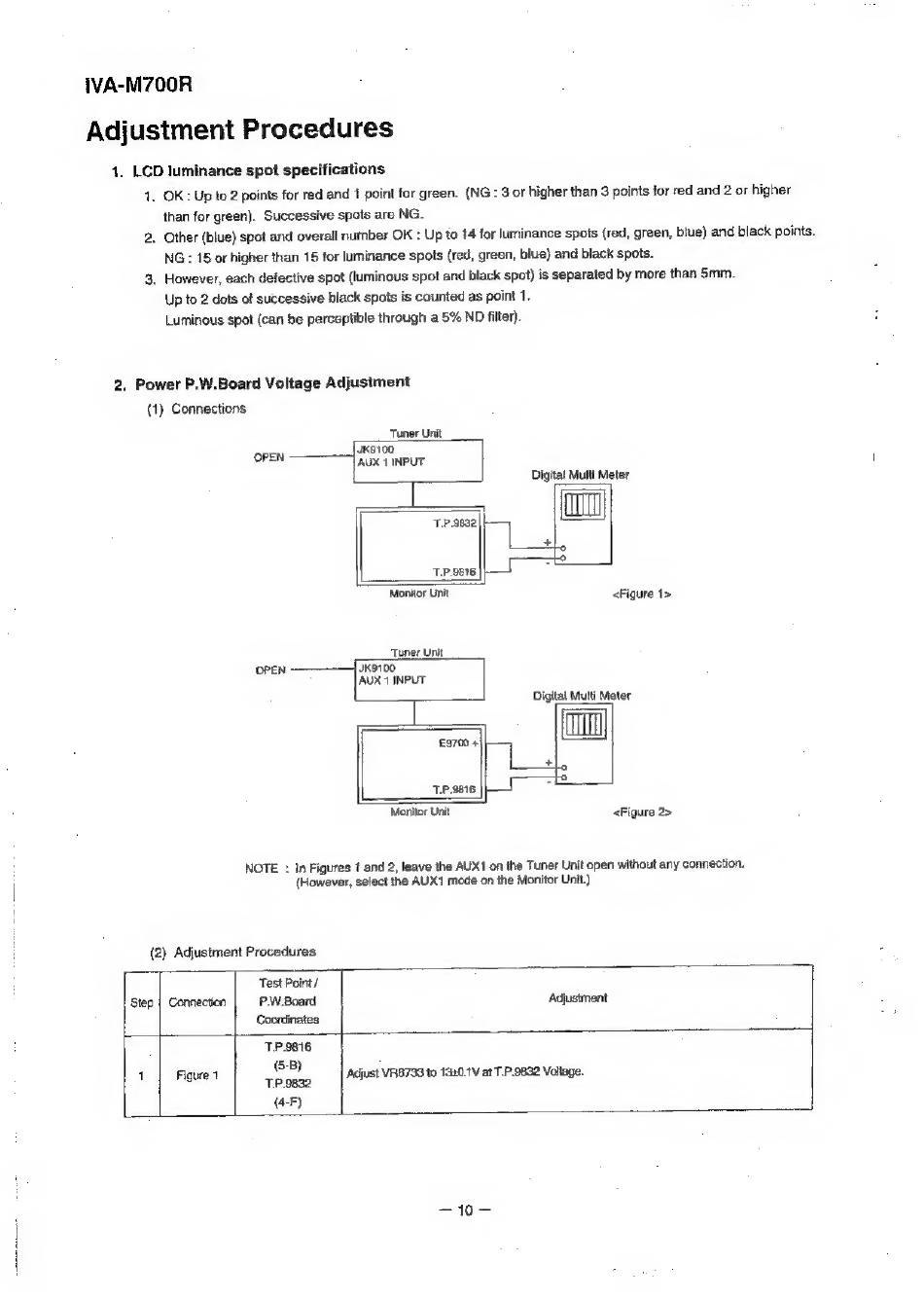

Adjustment Procedures
4. LCD luminance spot specifications
2. Power P.W.Board Voltage Adjustment
(1} Connections
Tuner Unit
'JK9100,
OFEN 'AUX 1 INPUT
Digital Multi Meter
T.P.9832 om
ge
[3
rpssre ||!
Monitor Unit <Figure 1>
Tuner Unit
OPEN KE100
AUX 1 INPUT
= : Digital Mutti Meter
£9700 +
leat
Monitor Unit <Figure 2>
NOTE : in Figures ( and 2, leave the AUX1 on the Tuner Unit open without any connection.
(However, select the AUX1 mode on the Monitor Unit.)
(2) Adjustment Procedures
Test Point/
Step | Connection P.W.Board Adjustment
Coordinates
T.P.9816
8)
T.P.9832
(4-F)
1 | Figure 1 Adjust VR8733 to 1320.1V at T.P.9832 Voltage.
—10—
