in the tray. RackFire also features individual power supplies, so that the failure of either RAID will
not affect the function of the other RAID.
System administrators and users can configure RackFire as a Hardware 0 + Software 1 RAID for
•
highest performance and on-the-fly data redundancy. RackFire is based on the latest generation
of FireWire 800 bridges, the Oxford Semiconductor OXUF912, and each tray's performance
easily exceeds 70MB/s.
Windows, Linux and Macintosh users will all find
•
RackFire perfect for their environments. Those who use
Apple's Xserve will find it a perfect companion. Because
of its extremely high performance, it is also a valuable
tool.
Installation Instructions
1.
Check the accessories with your RackFire. Please contact WiebeTech if any parts are missing or
damaged. The box should contain the following items:
R a c k F i r e U s e r M a n u a l
RackFire™
USER'S MANUAL
Revised May 2, 2007
Accessories
Rack Fire Trays
FireWire 800-800 cables
Rack mount brackets and ears
AC cables
Features

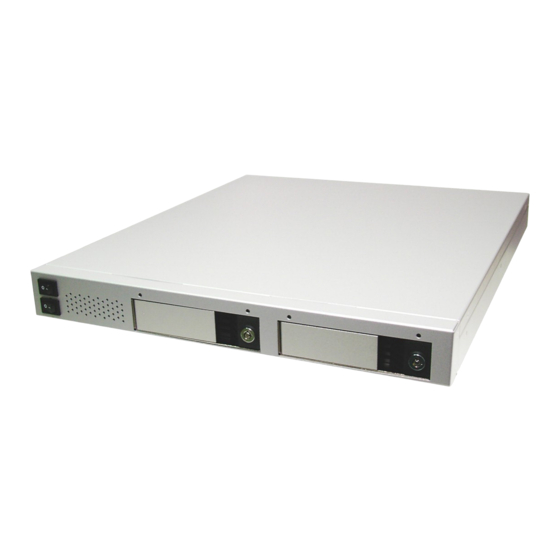

With RackFire, not only can you pack
•
2 Terabytes of storage in a slim 1U
rack mount enclosure, you can
access the four drives through two
removable trays. And, most
importantly, each tray is a hardware-
based FireWire RAID!
Each tray is a RAID 0 for on-the-fly
•
data striping between the two drives
Quantity
2
2
2
2
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF and is the answer not in the manual?

Questions and answers

Related Manuals for WiebeTech RF

Summary of Contents for WiebeTech RF

  • Page 1 Installation Instructions Check the accessories with your RackFire. Please contact WiebeTech if any parts are missing or damaged. The box should contain the following items: R a c k F i r e U s e r M a n u a l RackFire™...
  • Page 2 WiebeTech LLC Take a moment to familiarize yourself with the parts of the RackFire. This will help you to better understand the remaining instructions. Front view Rear view Setting up the RackFire To begin using the RackFire, simply install drives into the Trays and inset them. Attach the FireWire cables from the host computer to the RackFire.

  • Page 3: Usage With Macintosh Computers

    WiebeTech LLC 2) Insert the Trays into the RackFire. Using the keys provided, lock the Trays into position. 3) Connect both power cords included with the RackFire into the outlet. 4) Connect the FireWire 800 cables into the 800 ports on the RackFire and into a computer.

  • Page 4: Warnings And Notices

    WiebeTech LLC type. If you wish to format FAT-32 for cross-platform compatibility, you will need to use a third-party utility to do so. Windows XP will not create FAT-32 volumes larger than 32GB. After the volume is formatted, an icon representing the drive volume will appear in My Computer. You can now use the volume just like an internal hard drive.

  • Page 5: Technical Specifications

    Dimensions: Warranty: RackFire is a trademark of WiebeTech LLC. Other marks are the property of their respective owners. © 2005 WiebeTech LLC. All rights reserved. FCC Compliance Statement: “This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”...
