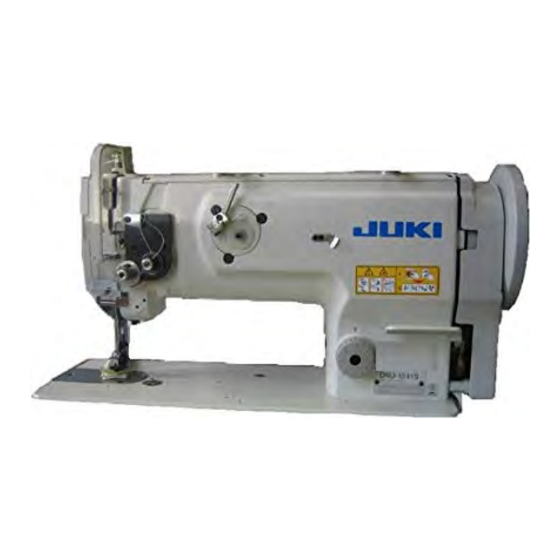

JUKI DNU-1541s Manual
Hide thumbs
Also See for DNU-1541s:
- Handbook (257 pages) ,
- Instruction manual (94 pages) ,
- Engineer's manual (58 pages)
Related Manuals for JUKI DNU-1541s
Summary of Contents for JUKI DNU-1541s
- Page 1 D D N N U U - - 1 1 5 5 4 4 1 1 s s NEW OWNER CHEAT SHEETS Compiled by Anne Benvenuto | Updated Feb 2020...
- Page 2 D D N N U U - - 1 1 5 5 4 4 1 1 s s LUBRICATION Use a lily-white oil. It doesn’t have to be the Juki brand. The 1541 (unlike the 1181) does not have a bottom-feeding oil pan with wick.
- Page 3 LUBRICATION [PGS 11-13] Note: Page# are From the manual...
- Page 4 LUBRICATION [PGS 11-13] Hook – Pg 13...
- Page 5 N N E E E E D D L L E E A A T T T T A A C C H H M M E E N N T T Top of industrial needle is rounded, so you need to be sure to put the needle in correct facing position with .
- Page 6 DNU-1541s THREADING...
- Page 7 T T H H R R E E A A D D I I N N G G Juki 1541 Instruction Book [Pg 20]...
- Page 9 T T h h r r e e a a d d i i n n g g J J u u k k i i 1 1 5 5 4 4 1 1 1. Thru flat-topped upper thread guide plate You can use one hole or two for least tension or all four for greater tension...
- Page 10 T T h h r r e e a a d d i i n n g g J J u u k k i i 1 1 5 5 4 4 1 1 2 – thru top bottom holes 3 –...
- Page 11 T T h h r r e e a a d d i i n n g g J J u u k k i i 1 1 5 5 4 4 1 1 Close Up Of Tension Knob With Wire...
- Page 12 Threading Juki 1541 5 – up thru metal loop...
- Page 13 Threading Juki 1541 6 - Thru eye of take-up lever...
- Page 14 Threading Juki 1541 Down thru next metal loop...
- Page 15 Threading Juki 1541 Straight down thru next rectangular metal hole Tweezers can help grab from bottom to pull thru...
- Page 16 Threading Juki 1541 Bring down and behind the flat Draw down thru open rectangular hole . . .
- Page 17 Close Up of Left Lower Threading...
- Page 18 Threading Juki 1541 Thru hole on needle bar...
- Page 19 Threading Juki 1541 Raise needle, then thread thru needle from left to right Once threaded, drop the needle. Then pull up bobbin thread.
-
Page 20: Bobbin Threading
DNU-1541s BOBBIN THREADING... - Page 21 B B o o b b b b i i n n T T h h r r e e a a d d i i n n g g https://www.youtube.com/watch?v=hU9HVgHAX6k&t=260s BOBBIN THREAD DIRECTION Thread runs counter-clockwise to insert INSERT BOBBIN CASE Bobbin handle is a 4 o’clock when.
- Page 22 DNU-1541s TENSION Tension can be adjusted from the top tension knobs, and additionally on the bottom from the bobbin case screw. Adjusting the tension knob: Left = Loosen and Right = Tightens NOTE I put on a small Label next to the main tension...
- Page 23 B B O O B B B B I I N N T T e e n n s s i i o o n n Juki Instruction Manual – Page 20 I purchased a second bobbin case, which I...
