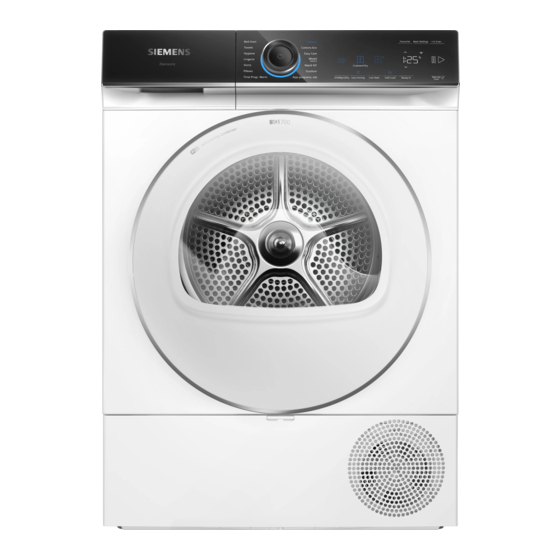

- Page 1 WQ45B2B9IL Tumble dryer EN User manual and installation instructions Register your appliance on My Siemens and discover exclusive services and offers. Siemens Home Appliances...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Dryness level...... 27 1.1 General information.... 4 8.1 Changing the dryness level.. 27 1.2 Intended use...... 4 8.2 Adjusting the dryness level .. 27 1.3 Restriction on user group.. 4 9 Programmes ...... 28 1.4 Safe installation ...... - Page 3 20 Customer Service.... 52 14.2 Setting up Home Connect.. 37 20.1 Product number (E-Nr.), 14.3 Home Connect menu .... 37 production number (FD) 14.4 Activating Wi-Fi on the ap- and consecutive numbering pliance ........ 37 (Z-Nr.) ........ 52 14.5 Deactivating Wi-Fi on the appliance .......
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Connect the appliance to a power supply with alternating cur- ▶ rent only via a properly installed socket with earthing. The protective conductor system of the domestic electrical in- ▶... - Page 6 en Safety If the power cord is too short and a longer one is not available, ▶ please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. Do not lift the appliance on your own.
-
Page 7: Safe Use
Safety en CAUTION ‒ Risk of cutting! Touching sharp edges on the appliance may lead to cuts. Do not touch the sharp edges on the appliance. ▶ Wear protective gloves when installing and transporting the ap- ▶ pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. - Page 8 en Safety WARNING ‒ Risk of explosion! If there is coal dust or flour in the air around the appliance, this may cause an explosion. Keep the area around the appliance clean during operation. ▶ WARNING ‒ Risk of poisoning! Condensation water from this appliance is not suitable for drinking and may be contaminated with fluff.
-
Page 9: Safe Cleaning And Maintenance
Safety en Rinse the laundry thoroughly with warm water and detergent be- ▶ fore drying it in the machine. Do not use the appliance if industrial chemicals have been used ▶ to clean the laundry beforehand. WARNING ‒ Risk of fire! If drying is interrupted early, the laundry is not cooled sufficiently and may ignite. - Page 10 en Safety An ingress of moisture can cause an electric shock. Do not use steam- or high-pressure cleaners, hoses or sprays ▶ to clean the appliance. WARNING ‒ Risk of injury! The use of non-original spare parts and non-original accessories is dangerous. Only use the manufacturer's original spare parts and original ac- ▶...
-
Page 11: Preventing Material Damage
Preventing material damage en Clean the appliance with nothing ▶ Preventing material damage 2 Preventing material but water and a soft, damp cloth. Remove all detergent residue, damage ▶ spray residue or other residues im- mediately if they come into contact Preventing material damage ATTENTION! with the appliance. -
Page 12: Energy Saving Mode
en Installation and connection → "Disposing of packaging", After drying, clean the fluff filter Page 11 → Page 33. Check the appliance for visible a If the fluff filter is dirty, this reduces damage. the air flow in the appliance, ex- Open the door. tends the programme duration and increases energy consumption. -
Page 13: Requirements For The Install- Ation Location
Installation and connection en 4.3 Requirements for the in- Installation loca- Requirements tion stallation location In a washer-dryer Only use the ori- ATTENTION! stack ginal connection If the appliance is tilted at an angle set from the greater than 40°, residual water may dryer manufac- leak out of the appliance and cause turer when set-... - Page 14 en Installation and connection container. Use the water outlet hose Pull out the condensation hose to drain away excess condensation from the connecting piece. directly into the waste water system. Notes Operate this appliance using the ¡ water outlet hose provided. → "Connecting the water drain hose", Page 14 If you connect the water outlet...
- Page 15 Installation and connection en Push the water drain hose as far Insert the stopper into the recess as it will go into the connecting in the top. piece. Insert the condensation container Empty the condensation container → Page 36. → Page 35. Connect the appliance to the water outlet.
-
Page 16: Aligning The Appliance
en Installation and connection 4.5 Aligning the appliance Note: You can use the Y-distrib- In order to reduce vibrations and utor → Page 31 noises, align the appliance correctly. to connect the To align the appliance, turn the ap- ▶ water drain hose pliance feet. Check that the appli- of an additional ance is level using a spirit level. - Page 17 Installation and connection en Screw the door hinge and the door Removing the door hook onto the opposite sides. Requirement: The appliance is dis- connected from the mains. Open the door. Unscrew the door. When you do this, ensure that the door seal is not trapped or dam- aged.
- Page 18 en Installation and connection Remove the colour door handle in- Remove the door lock. dicator and swap it with the cover on the opposite side. Insert the door lock on the oppos- ite side. Select the position of the door handle indicator based on the appliance's installation location: –...
-
Page 19: Connecting The Appliance To The Electricity Supply
Installation and connection en Screw on the door. 4.7 Connecting the appliance to the electricity supply Insert the mains plug of the appli- ance's power cable in a socket nearby. The connection details of the appli- ance can be found under Tech- nical data → Page 54. -
Page 20: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. -
Page 21: Control Panel
Familiarising yourself with your appliance en 5.2 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. Changing a setting value Programmes → Page 28 If you activate certain settings, the Programme selector display shows selection buttons and → Page 32... -
Page 22: Display
en Display Display 6 Display The display shows the current settings, options or relevant information. Display Example: Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. Recommendation for the maximum load capacity for the selected program in kg. Program end time → "Buttons", Page 26 Save a programme. - Page 23 Display en Display Description Gentle drying is activated for delicate fabrics. → "Buttons", Page 26 Half load is activated. → "Buttons", Page 26 You can remove or add laundry, and interrupt the current programme. → "Adding laundry", Page 33 Empty and insert the condensation container. → "Emptying the condensation container", Page 35 Clean the fluff filter.
-
Page 24: Buttons
en Buttons Buttons 7 Buttons Below is an overview of the buttons and their setting options. Buttons Button Selection Description Start Start, cancel or pause ¡ the programme. Cancel ¡ is displayed, you Pause ¡ can pause the pro- gramme. is displayed, you can start the pro- gramme. -
Page 25: Dryness Level
Buttons en Button Selection Description Favourite Saving Press the button for ap- ¡ prox. 3 seconds to save Setting ¡ your customised pro- gram settings. → "Saving the pro- gramme settings", Page 32 If you briefly press the button, you can set cus- tomised program set- tings for your program. - Page 26 en Buttons Button Selection Description Low Heat Activate Activate or deactivate ¡ gentle drying. Deactivate ¡ The temperature is re- duced for delicate fab- rics, e.g. polyacrylic or elastane. The programme duration is extended. Ready In Up to 24 hours Set the programme end time.
-
Page 27: Changing The Dryness Level
Dryness level en Dryness level 8 Dryness level Each automatic programme has a specified dryness level. The dryness level Dryness level defines how dry or damp your laundry is after the programme ends. Dryness level Laundry Drying result Multi-layered, thick laundry The laundry is dry. that does not dry readily. -
Page 28: Programmes
en Programmes Programmes 9 Programmes You can dry your fabrics using either an automatic programme or a timed pro- Programmes gramme. 9.1 Automatic programmes Automatic programmes are pro- Tips grammes in which humidity sensors Select the dryness level according ¡ measure the residual moisture in the to the type of fabric or the desired laundry during the drying cycle. -
Page 29: Timed Programmes
Programmes en Programme Description Max. load (kg) Pillows Dry pillows stuffed with down or synthetic One pillow fibres. Note: Once the programme has ended, shake the pillows to distribute the stuffing and eliminate any pockets of moisture. Shirts Suitable for shirts and blouses made of cotton, linen, synthetics or blended fab- rics. - Page 30 en Programmes Programme Description Max. load (kg) Time Progr. Warm Dry all types of fabric except for wool and silk. Suitable for pre-dried or slightly damp laundry and for drying off multi-layered, thick laundry. App programs Select additional programmes directly via –...
-
Page 31: Accessories
Accessories en Accessories 10 Accessories Use original accessories. These have Accessories been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 52. Order number Connection kit To save space, stack the WZ27510 appliance on a suitable washing machine of the same width and depth and that is from the... -
Page 32: Laundry
en Laundry The switch-on process takes a few Laundry 11 Laundry seconds. Note: The lighting for the drum goes Laundry out automatically. 11.1 Preparing the laundry 12.2 Setting a programme ATTENTION! Objects remaining in the laundry may damage the laundry and the drum. Turn the programme selector and Remove all items from any pock- set the required programme. -
Page 33: Loading Laundry
Basic operation en Press and hold Favourite for ap- The cooling process starts auto- ▶ prox. 3 seconds. matically after approximately 30 seconds and cools down the laun- Press Favourite to call up the dry while the drum is rotating. If saved programme. - Page 34 en Basic operation Disconnect the two-part fluff filter. Requirements The display shows the following ¡ after drying: "End" or the display shows the following ¡ during operation: Open the door. Remove the fluff from the door. Open the two fluff filters. Remove the two-part fluff filter.
-
Page 35: Condensation Container
Basic operation en Clean the two fluff filters thoroughly 12.12 Condensation con- under warm, running water and tainer then dry them off. Condensation that forms in the appli- ance as it dries the laundry is collec- ted by default in the condensation container. -
Page 36: Childproof Lock
en Childproof lock Empty the condensation container. Childproof lock 13 Childproof lock Secure your appliance against being Childproof lock operated unintentionally using the controls. 13.1 Activating the childproof lock Press and hold 3 sec. for ap- ▶ prox. 3 seconds. The display shows The control elements are locked. -
Page 37: Home Connect
Home Connect en The Home Connect app guides you Follow the instructions in the through the entire login process. Fol- Home Connect app. low the instructions in the Home Con- nect app to configure the settings. 14.3 Home Connect menu Tips The Home Connect menu contains Please consult the documents sup- ¡... -
Page 38: Network Settings
en Home Connect Activating remote start 14.5 Deactivating Wi-Fi on the appliance Requirements The appliance is connected to your ¡ Requirements home WiFi network. The Home Connect menu is called ¡ The appliance is connected to the ¡ Home Connect app. → "Calling up the Home Connect A programme is selected. -
Page 39: Remote Diagnostics
Home Connect en If the appliance finds a suitable appliance will transmit the following programme, the display for the types of data to the Home Connect programme lights up and the pro- server (initial registration): gramme information is displayed. Unique appliance identification ¡ If the appliance does not find a (consisting of appliance codes as suitable programme, a signal... -
Page 40: Overview Of The Basic Settings
en Basic settings Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. Basic settings 15.1 Overview of the basic settings Posi- Basic setting Selection Description tion End signal 0 (off) Set the volume of the signal at the 1 (quiet) end of the programme. -
Page 41: Changing The Basic Set- Tings
Appliance care en Preparing the condensation 15.2 Changing the basic set- container for the appliance care tings programme To call up the basic settings, If you are draining the condensation press Basic Settings . water from the appliance using the drain hose, prepare the condensation Select the required basic setting. -
Page 42: Running The Basic Appli- Ance Care Programme
en Appliance care The switch-on process takes a few The appliance care programme seconds. starts and a signal tone sounds. "End" appears on the display and Press Basic Settings . a signal tone sounds once the ap- Set the programme to position 5. pliance care programme has "CP1"... - Page 43 Appliance care en After around 3 hours, the appli- WARNING ance pauses the appliance care Risk of injury! programme and the remaining pro- The use of non-original spare parts gramme duration flashes on the and non-original accessories is dan- display. gerous. Pull out the condensation con- Only use the manufacturer's ori- ▶...
-
Page 44: Cleaning And Servicing
en Cleaning and servicing Put the appliance into standby ATTENTION! mode. Hard or rough objects may damage the moisture sensor. → "Put the appliance into standby mode", Page 33 Do not use hard or rough objects, ▶ abrasive cleaning products or steel wool for cleaning. Cleaning and servicing 17 Cleaning and servi- Note: If you do not clean the appli-... - Page 45 Cleaning and servicing en Empty the condensation container. → "Emptying the condensation container", Page 35 Remove the filter. Clean the filter under warm, run- ning water or in the dishwasher. Slide in the filter as far as it will go. Insert the condensation container. → "Inserting the condensation con- tainer", Page 36...
-
Page 46: Troubleshooting
en Troubleshooting Troubleshooting 18 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 47 Troubleshooting en Fault Cause and troubleshooting Appliance paused, but Cooling process active. the drum is rotating. Not a fault – no action required. ▶ Home Connect is not Different causes are possible. working properly. Go to www.home-connect.com. ▶ No connection to the Wi-Fi is switched off.
- Page 48 en Troubleshooting Fault Cause and troubleshooting and programme Water drain hose is blocked. terminated. Rinse the water drain hose with tap water. ▶ The filter for the condensation tank is soiled. → "Clean the filter for the condensation tank.", ▶ Page 44. Condensation in the The appliance uses condensation for the automatic condensation tank self-cleaning.
- Page 49 Troubleshooting en Fault Cause and troubleshooting The drying time is too Ensure that the ventilation opening of the appliance ▶ long. is kept clear. Heat exchanger is soiled. Running the basic appliance care programme on ▶ the appliance. → "Appliance care", Page 41 Water is leaking from Appliance is not correctly aligned.
- Page 50 en Troubleshooting Fault Cause and troubleshooting Odours have formed Stubborn dirt in the appliance or an extended appli- in the appliance. ance downtime of more than one month. Run the intensive appliance care programme. ▶ → "Appliance care", Page 41...
-
Page 51: Transportation, Storage And Disposal
Transportation, storage and disposal en Ensure that you do not bend the Transportation, storage and disposal 19 Transportation, stor- water drain hose. age and disposal Empty the condensation container → Page 35. Transportation, storage and disposal Insert the condensation container 19.1 Preparing the appliance → Page 36. for transportation Disconnect the appliance's mains plug from the power supply. - Page 52 en Customer Service Dispose of the appliance in an en- 20.1 Product number (E-Nr.), vironmentally friendly manner. production number (FD) Information about current disposal and consecutive num- methods are available from your bering (Z-Nr.) specialist dealer or local authority. You can find the product number (E- This appliance is la- Nr.), the production number (FD) and belled in accordance...
- Page 53 Consumption values en Consumption values 21 Consumption values The Cottons Eco programme The actual values may deviate from Consumption values (denoted by the arrow symbol) is the indicated values depending on suitable for drying cotton laundry with the type of fabric, composition of a normal dampness level, and is the laundry to be dried, residual moisture most efficient programme for drying...
- Page 54 en Technical data Programme Final Load Spin Initial Pro- Energy mois- (kg) speed mois- gramm con- ture (rpm) ture e dura- sump- level level tion tion (h:min) (kWh/ cycle) Cottons + Iron 12.0 1400 2:05 0.96 Cottons + Iron 12.0 1400 1:22 0.54 Cottons +...
- Page 55 A detailed RED Declaration of Con- EPREL product database. Please formity can be found online at then follow the instructions on siemens-home.bsh-group.com searching for the model. The model among the additional documents on identifier is made up of the charac- the product page for your appliance.
- Page 56 EN Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY siemens-home.bsh-group.com *9001804398* 9001804398 (030818)
