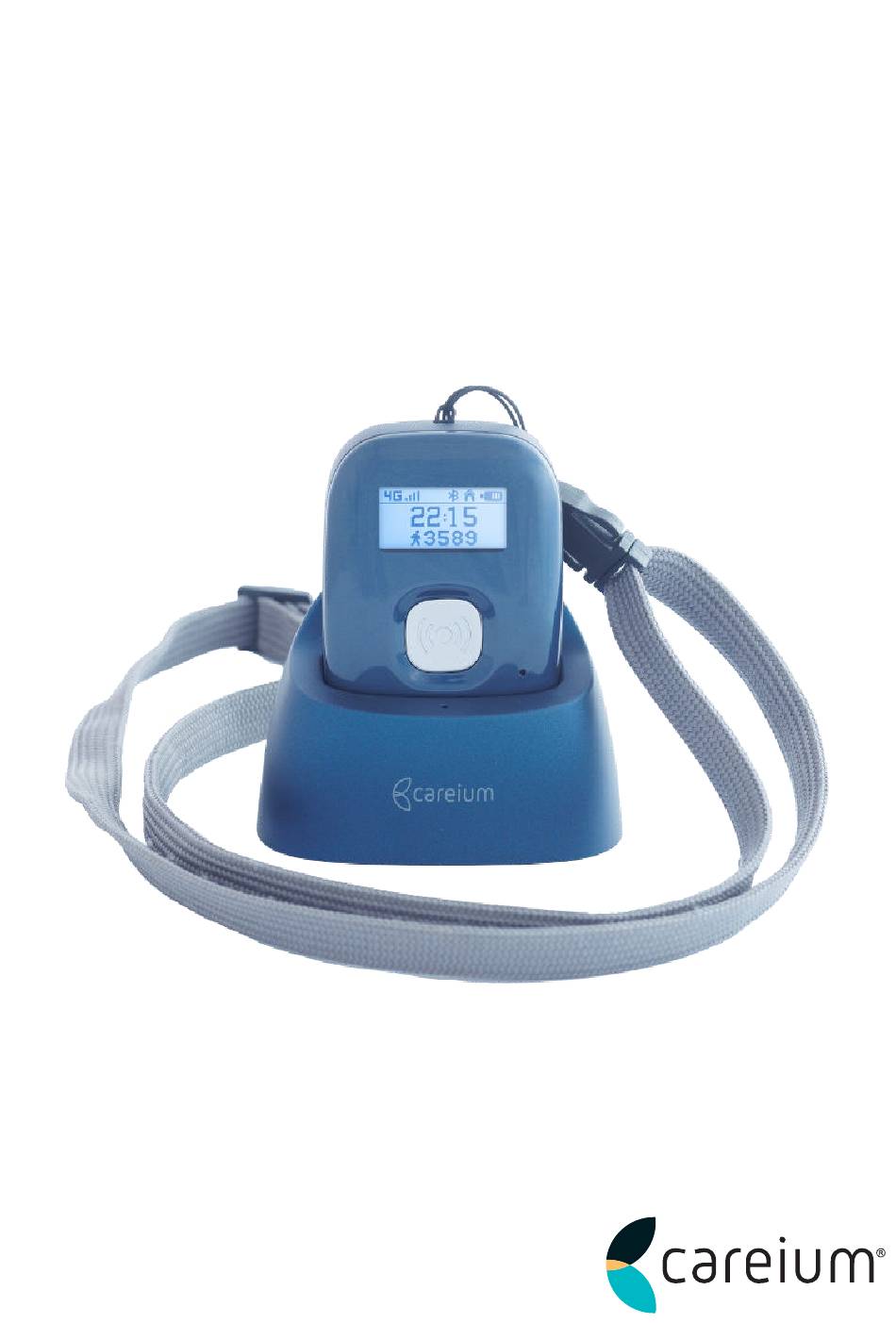

- Page 1 Abby Technical Guide www.careium.co.uk...
-
Page 2: Table Of Contents
5.3 Geo-Fence alarm........................5.4 Technical alarms......................... 6 Positioning............................7 Sending a contact message......................8 Abby and docking station, back, front and side view..............9 Button, display, LED, sound and vibration chart............... 9.1 Display............................9.2 Menu system..........................9.3 Abby, the body worn device Need to be checked.............. -
Page 3: Safety Information
Only use recommended power supply as stated in the section 16.3 Power Supply. The wall socket should be installed near the Careium charger equipment and should be easily accessible. Follow the rules and laws that apply wherever you are, and always turn off the unit whenever its use is prohibited or can cause interference or hazards. -
Page 4: Implanted Medical Devices
The lower the power output of the device, the lower its SAR value. 3. Package content Abby Charging cradle/Beacon Power supply Lanyard... -
Page 5: Description
This alarm is triggered via the SOS button on the front of the device or a remote alarm trigger. Three short presses in a row, or a long 3sec press will activate the alarm on Abby. A single press activates the remote alarm trigger. -
Page 6: Geo-Fence Alarm
5.3 Geo-Fence alarm Two type of Geo-fence alarms can be set in the Abby. Settings is done via i-care® online. The fence shall be defined so that the target, such as a house, lake etc. is in the middle of the fence. -
Page 7: Sending A Contact Message
The message is sent by pressing the side button on the device. A sound and a vibration are played to confirm that the message will be sent. The message will include an updated position. 8. Abby and docking station, back, front and side view. Necklace Green Status light... -
Page 8: Button, Display, Led, Sound And Vibration Chart
9. Button, display, LED, sound and vibration chart 9.1 Display Network type Network signal strength Bluetooth active Home beacon in range Battery status Time Step counter Fall alarm countdown Alarm in progress Alarm countdown No network No SIM Battery low Charging Incoming call Outgoing call... -
Page 9: Abby, The Body Worn Device Need To Be Checked
9.3 Abby, the body worn device 9.4 Abby, docking station Status/Function Green Led Flashing Power connected No power... -
Page 10: Installation
10. Installation When first plugged in or after storage you should let the Abby charge up to 3 hours to reach full battery capacity. Connect the power supply to the wall socket and the power supply lead to the Abby Docking station. -
Page 11: Pairing A Radio Trigger
I10 Smoke Detector I10 Heat Detector I10 CO Detector 14. Maintenance 14.1 Cleaning When cleaning the Abby including accessories and cables use only a slightly damp cloth. Do not use strong detergents or solvents when cleaning. 15. Reinstatement If the... -
Page 12: Technical Data
16. Technical data 16.1 Abby, the body worn device Dimensions: 63 x 44 x 17 mm (L x W x H) Weight: 45 g IP-Class: IP67 Temperature: Operating temperature -10ºC to +40ºC Power consumption (typical): - Off mode: 4.4 µW... -
Page 13: Charging Cradle/Beacon
Dimensions: 58 x 68 x 50 mm (L x W x H) Weight: 38 g Colour: Blue RFID, transmitter: 865-868 MHz USB: Micro USB-C (intended for Careium certified adapters) 16.3 Power supply Model (EU): A31A-050500U-EU1 Model (UK): S003ATB0500055 Input voltage: 100-240V... -
Page 14: Environmental Information
(Batteries) and 2012/19/EU (WEEE). These directives regulate the product liability for battery, electrical and electronic recycling with the purpose of increasing recycling and minimizing waste. The Abby is marked with the “crossed out wheeled bin” logo, which indicates that it should be handed in for recycling. - Page 15 Notes...
-
Page 16: Proper Disposal Of Batteries In This Product
Hereby, Careium declares that the radio equipment Abby is in compliance with Directives: 2014/53/EU and 2011/65/EU including delegated Directive (EU) 2015/863 amending Annex 19. UK Declaration of Conformity Hereby, Careium declares that the radio equipment type Abby is in compliance with the relevant UK legislation. Careium...
