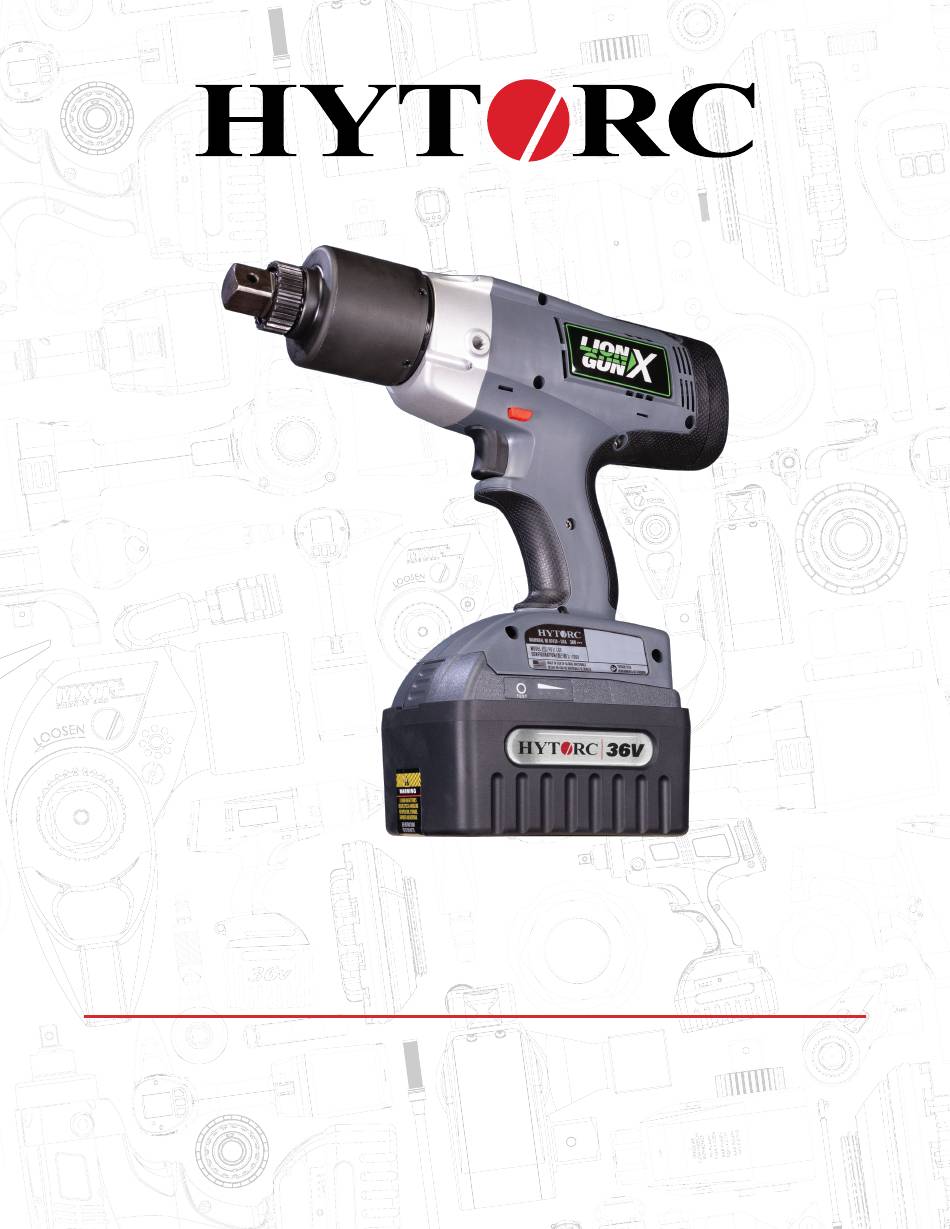

- Page 1 LION GUN® X Electric Torque Tool Basic Operations Manual 333 Route 17 N. 800-FOR-HYTORC hytorc.com Mahwah, NJ 07430 (800-367-4986) 201-512-9500...
-
Page 3: Table Of Contents
Adjust Torque & Angle 8. BOLTING WITH HYTORC ACCESSORIES Increase Torque Install HYTORC Washer Driver Decrease Torque Tighten With The HYTORC Washer Driver Change Torque Units Loosen With The HYTORC Washer Driver Change Drive Direction Install The HYTORC Nut Driver 5. -
Page 4: Tool Description
The LION GUN® X Electric Torque Tool has built-in data recording, a torque capacity of up to 3,000 ft.-lbs. (4067 Nm) and is powered by a 36V high-density battery pack. Users can record jobs via Bluetooth or USB cable. This tool is compatible with conventional sockets with reaction arms, the HYTORC Washer and the HYTORC Nut. CASE CONTENTS •... -
Page 5: Care & Maintenance
Check the certificate or label on the tool for the most recent calibration date. ENVIRONMENTAL CONSIDERATIONS • The LION GUN X Electric Torque Tool is a rugged industrial tool with an electric motor and electronic control. The following environmental considerations will help maintain reliable tool operation. -
Page 6: Prep & Setup
3 . PR E P & S E T U P CHARGE THE BATTERY PACK • The tool comes with the HYTORC Battery Pack Charger (Model: A000791) and one long-life HYTORC 36V battery pack (Model: P003286). • Connect the charging cradle to the power supply and plug the power cord into a grounded outlet. -
Page 7: Operation & Usage
POWER ON & OFF • On: Push any button on the rear control panel. The HYTORC logo is displayed for a few seconds while the unit powers up. When the tool is fully powered up, the Home Screen is displayed. A green light indicates that the tool is on. -
Page 8: Basic Bolting Operations
(C O N T ’ D . ) BASIC BOLTING OPERATIONS HOME SCREEN INCREASE TORQUE • The tool direction is displayed on the • From the Home Screen, push the left Home Screen along with TORQUE, button (↑), to increase torque. ANGLE, RELEASE, FASTENER, and •... -
Page 9: Menu Navigation
• The RELEASE angle is applied after the TORQUE operation (and ANGLE, if set). without loosening the nut. • If an ANGLE DELAY has been set, the release angle will be applied after that specified delay (from 0-3000ms; default = 500ms). LION GUN X Operations Manual... -
Page 10: Menu
M E N U ENTERING CHARACTERS Use the left (↑) and right (↓) buttons to select character, then press the center button to choose it. Press the center button twice when finished. ANGLE ONLY This applies an angle to the bolt after SNUG. It sets an angle for the nut to rotate. •... -
Page 11: Release/Set Release Angle
(This feature is optional.) The LION GUN X’s gear box relaxes automatically to prevent the tool from locking onto the nut, even when release is set to 0°. When an optional RELEASE ANGLE is set for more than 0° the tool will reverse the motor slightly, taking force off the gear box and reaction point to release the tool. -
Page 12: Document Job
(C O N T ’ D . ) DOCUMENT JOB Documents jobs and saves to the tool’s internal memory. That data can later be exported to an app or PC. (While Job Data can be exported from the tool, it cannot be imported into the tool.) Job ID Start Job Doc •... -
Page 13: Templates
Start Multi • From the Templates Menu scroll to Start Multi and press the center button. • Select the template run order from the tool’s current saved template list. Select done when finished. LION GUN X Operations Manual... -
Page 14: Sequence
(C O N T ’ D . ) SEQUENCE Guides users through a bolting project that has multiple fasteners and applications. The tool displays the count of each successful fastener tightening, number of passes performed, and series of items (such as flanges or wheels). Built-in data recording provides complete and detailed documentation of the project. - Page 15 • Retry Bolt - redo the tightening on the same bolt without advancing the counter. • Skip Bolt - continue to the next bolt, while still advancing the sequence counter. • All failed operations, retries, and skips are recorded in the documentation data. LION GUN X Operations Manual...
- Page 16 (C O N T ’ D . ) Pass Complete • At the end of each pass you can: • Confirm and proceed with the sequence by selecting Continue. • Retry the last bolt. • Restart the current pass. • All Retry operations are recorded in the documentation data. Component Done •...
- Page 17 • The counters advance in real time with each successful tightening during the bolting sequence. • Loosening operation or unsuccessful bolting does not advance the sequence bolt counter. LION GUN X Operations Manual...
- Page 18 (C O N T ’ D . ) Failed Operation (Wheel) • In the event of a failed operation, there is the option to either Retry Lug or Skip Lug. • Retry Lug: Redo the tightening on the same lug without advancing the counter. •...
-
Page 19: Settings
• Once complete the user can either Accept, Retry or Cancel entry. Bluetooth • From the Settings Menu scroll to Bluetooth and press the center button. Use the left (↑) and right (↓) buttons to select ON/OFF and press the center button. LION GUN X Operations Manual... - Page 20 (C O N T ’ D . ) Torque Limit • From the Settings Menu scroll to Torque Limit and press the center button. Use the left (↑) and right (↓) buttons to select a value and press the center button. •...
- Page 21 • This safety feature aims to ensure that the operator keeps both hands clear of the reaction arm. • Directional Switch • Use the left (↑) and right (↓) buttons to select Enable/Disable. • This allows the user to disable the physical switch that changes the tool mode from LOOSEN and TORQUE. LION GUN X Operations Manual...
- Page 22 (C O N T ’ D . ) Beeper • From the Settings Menu scroll to Beeper and press the center button. Use the left (↑) and right (↓) buttons and press the center button to select ON/OFF Turn the beeper on or off. •...
- Page 23 • By default menu navigation is set up to scroll from the beginning of the menu (top) to the end (bottom) and then stop. (To reach the beginning, scroll back up.) • When Menu Loop is on it is possible to scroll continuously through the entire menu without stopping. LION GUN X Operations Manual...
-
Page 24: Admin
• Menu Loop ADMIN Access Level • Service User is for HYTORC service personnel only. Cannot be accessed by non-HYTORC users. • Job User has restricted access. This level only allows the user to pull the trigger and is unable to change the torque or angle values. Operator is limited to using what was already set, or templates that were already made. -
Page 25: Service
• From the Admin Menu scroll to Reset Tool and press the center button. Use the left (↑) and right (↓) buttons to select an option and press the center button. • Resets tool to factory settings. SERVICE HYTORC personnel only. Cannot be accessed by regular users. LION GUN X Operations Manual... -
Page 26: Error Messages
(C O N T ’ D . ) ERROR MESSAGES LGX Job Data Status - Error Codes CODE EXPLANATION COMMENT OK Success Completed operation with the target Torque, Angle, or Rotation reached Early Trigger Release Incomplete operation. Target torque or angle not reached Motor failed to spin, typically due to a pre-tightened bolt, or any motor rundown error Motor has stalled condition, including component failure... -
Page 27: Data Fields
Angle Whole number (degree) torque Release Motor release angle Whole number (degree) RH (Right Hand), LH (Left Hand), HWR (HYTORC Washer Right), Fastener Type of fastener HWL (HYTORC Washer Left), HN (HYTORC Nut) Units Measurement Units for the torque ft-lb, Nm or kgf-m... -
Page 28: Conventional Bolting
• Slide socket onto the drive while aligning the pinhole in the socket with the hole in the square drive. • Push the pin through socket and square drive and seat the pin flush against the socket. • Slide O-ring over it to retain the pin in place. • Contact your HYTORC rep for more accessory options. -
Page 29: Conventional Torque Setup
• The screen will show an error message if the attempt was unsuccessful. • During operation, the status light will turn amber. If the operation is successful, the status light will turn green. If unsuccessful, the status light will turn red. • Repeat until finished. LION GUN X Operations Manual... -
Page 30: Conventional Torque Loosening
(C O N T ’ D . ) CONVENTIONAL TORQUE LOOSENING • Push directional switch down on the left side (past the center position) to set the tool to LOOSEN. • When using conventional torque, install a backup wrench to keep the back nut from turning. •... -
Page 31: Bolting With Hytorc Accessories
• Slide the Washer Driver over the square drive and spline while aligning the retainer screw with the spot face (circular indentation) on the spline. • Tighten the retainer screw to secure the driver. (For longer term use HYTORC recommends pinning the drive to the square drive.) •... -
Page 32: Tighten With The Hytorc Washer Driver
• Select the desired TORQUE, ANGLE, and RELEASE. • Set the Fastener type to HY WASHER (RH or LH). • Position the tool over the nut and HYTORC Reaction Washer. • Pull the trigger to apply torque until the tool reaches the desired torque and stops. -
Page 33: Install The Hytorc Nut Driver
• Push directional switch down on the left side (past the center position) to set the tool to LOOSEN. • Position the driver over the HYTORC Nut and hold the trigger until the nut is loose. • During operation, the status light will turn amber. -
Page 34: Changelog
C H A N G E LO G 05/2023 - First edition. 09/13/2023 - Emissions removed from section 2, photography updates, thorough changes to data, diagrams, and screens. Edits to section 5. Per Mike Shannon, PM will open a new request with Marketing for any future changes 09/21/2023 - Added section (Menu Navigation) after page 5. - Page 36 HYTORC WORLD HEADQUARTERS 333 Route 17 North, Mahwah, NJ 07430 • +201-512-9500 • 800-FOR-HYTORC THE HYTORC UNIVERSE IS MADE UP OF OVER 1,000 TRAINED BOLTING SPECIALISTS TO SUPPORT YOUR BOLTING NEEDS IN OVER 100 COUNTRIES. Locate your nearest HYTORC representative: H Y TO R C .CO M/ WO R LD...
