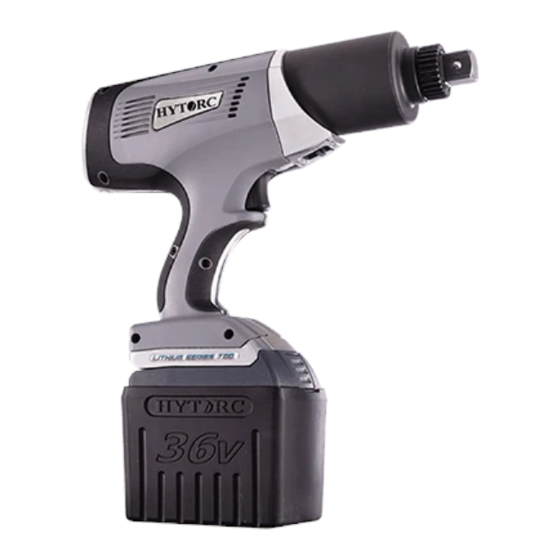

- Page 1 LITHIUM SERIES® II Electric Torque Tool User Interface Guide Preliminary April 2020 Version: 2.0 333 Route 17 N. 800-FOR-HYTORC hytorc.com Mahwah, NJ 07430 (800-367-4986) 201-512-9500...
-
Page 3: Table Of Contents
1. CONTROL PANEL 2. HOME SCREEN 3. MENU STRUCTURE 4. MENU NAVIGATION 5. MAIN MENU 6. BASIC BOLTING 7. ADVANCED BOLTING 8. JOBS 9. PROFILES 10. SETTINGS 11. ADMIN APPENDIX INDEX LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE... -
Page 5: Control Panel
Job IDs and Profiles to the tool and exporting job data from the tool, as well as for firmware upgrade. NOTE: Bluetooth® is a registered trademark of the Bluetooth® Special Interest Group. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE... - Page 6 The exact release value is usually determined by the specific conditions at the job site. FASTENER Displays fastener type including Right Hand (RH), Left Hand (LH), HYTORC Washer RH (HWR), HYTORC Washer LH (HWL) and HYTORC Nut (HN).
- Page 7 Most all major bolting functions follow a similar Home Screen layout and presentation format. The layout of the advanced bolting functions on the Home Screen may look somewhat different depending on the parameters required for the display. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
-
Page 8: Home Screen
3 . M E N U S T R U C T U R E HOME SCREEN This guide provides instructions for operating the tool using the menu system and functions shown on this page. This menu structure allows users to quickly access bolting functions starting with the Home Screen and working through the main menu and sub-menus. - Page 9 Access Level, and to add or change a User ID. SERVICE SUB-MENU The Service sub-menu provides options for HYTORC service personnel to configure, calibrate and troubleshoot the tool. Only the Calibration option is available to customers on the service menu, and only when at the Admin L4 access level.
-
Page 10: Menu Navigation
4 . M E N U N AV I G AT I O N The Main Menu displays primary basic bolting functions and other primary sub-menus. From the home screen, push the center button to display the Main Menu. Push and to scroll and highlight the bolting function or sub-menu desired The green color bar highlights the current selection. - Page 11 MENU ICONS Menu icons are intended to speed user access and aide non-English speaking users to locate menu options. A glossary of menu icons in multiple languages is provided. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
-
Page 12: Main Menu
5 . M A I N M E N U The Main Menu provides all Basic Bolting functions including Torque, Snug, Angle, Release and Fastener. It also provides primary sub-menu options including Advanced Bolting, Jobs, Settings, Admin and Service. Basic Bolting functions of Torque, Snug, Angle, Release and Fastener are displayed at the top of the Main Menu. -
Page 13: Basic Bolting
While adjusting the Torque value, if the user continues to hold the right button after reaching the minimum Torque value the screen changes to the Snug function. The Snug function allows the user to continue to decrease torque but at an accuracy less than the calibrated Torque function. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE... - Page 14 (C O N T ’ D . ) SNUG The Snug function is used to bring two bolting surfaces into alignment and contact. It may also be used to tighten bolts at a lower torque. In structural bolting, the snug operation is applied first to bring surfaces into contact followed by either a calibrated torque or “Turn-of-Nut”...
- Page 15 Just as with Torque, a Release value is required following Angle. During a Torque, Angle and Release operation in the same trigger pull, Angle is always applied after Torque and before Release. The Angle always turns the nut in the same direction as Torque. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 16 (C O N T ’ D . ) RELEASE The Release angle takes the tension off the motor, causing the tool to automatically be released from the bolt following a tightening operation. Release is set at the user’s discretion and may not always be required. Typically the user tests a bolt on a particular job to determine the magnitude of the release angle needed.
- Page 17 For traditional RH or LH fasteners, the tool assumes use of reaction arms and displays a safety message, “Press any button to start operation,” to keep the user’s hands away from any pinch point. For the HYTORC Washer (HWR, HWL) and the HYTORC Nut (HN) a reaction arm is not required and the safety message is not displayed.
- Page 18 • Position Back Wrench - If needed, apply a back wrench to the back nut on the bolt to prevent it from turning during tightening. If using the HYTORC Back Washer a back wrench is unnecessary. • Position Drive/Socket - Place socket over nut until firmly engaged. If using the HYTORC Washer or HYTORC Nut, make sure the driver properly engages the fastener.
- Page 19 • Release Trigger - Release the trigger after the tool has completed all specified operations (Torque, Angle & Release), the tool stops for the last time and the BEEPER sounds (if activated); then remove the tool socket/drive from the nut. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 20 (C O N T ’ D . ) LOOSEN BOLT • Setup Tool - Use the menu to specify the fastener type; e.g. LH, RH, HYTORC Washer. • Set to Loosen - Toggle the direction switch to change from TORQUE to LOOSEN. The tool automatically sets the Loosen Torque to the maximum calibrated value of the tool.
-
Page 21: Advanced Bolting
The Turn Angle function is accessed through the Advanced Bolting menu. The technician simply adjusts the angle value and then returns to the Turn Angle screen. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE... - Page 22 HYTORC Back Washer a back wrench is unnecessary. • Position Drive/Socket - Place socket over nut until firmly engaged. If using the HYTORC Washer or HYTORC Nut, make sure the driver properly engages the fastener. • Position Reaction Arm - Make sure the reaction arm, if used, is firmly abutted against a stationary object (e.g.
- Page 23 • Release Trigger - Release the trigger after the tool has completed all specified operations (Turn Angle & Release), the tool stalls for the last time and the Beeper sounds (if activated); then remove the tool socket/drive from the nut. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 24 When data/documentation is exported the profile type for Torque Check is “TCK” and the data file records a successful torque with the value checked. NOTE: Torque Check is available on the LITHIUM SERIES II Tool 2000, 3000 and 5000 capacity versions.
- Page 25 • Release Trigger - Release the trigger after the tool has completed all specified operations, the tool stalls for the last time and the Beeper sounds (if activated); then remove the tool socket/drive from the nut. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 26 (C O N T ’ D . ) ROTATIONS Rotations allows the user to turn a fastener under resistance through a specific number of rotations; for example to turn a valve 20 revolutions clockwise. The capacity of the rotations feature is 99.9 rotations. The rotations feature allows the user to adjust the resolution to the nearest tenth of a rotation.
-
Page 27: Jobs
Job ID "ADHOC". PROFILES Select submenu to load profiles, create a profile and If a Job ID is currently active, only the import a profile. End Job menu option is available. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE... - Page 28 (C O N T ’ D . ) START JOB The Start Job option allows the user to select a Job ID and begin recording data under that ID. The Job will use whatever Profile has been previously selected. When the user returns to the home screen the Job ID is displayed near the bottom of the screen.
- Page 29 The next screen asks the user to confirm the entry at which point they can accept, retry or cancel out of the job entry activity. If the user confirms they are prompted to create another Job ID, start the Job or go back to the Jobs menu. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 30 Select Import Jobs > USB Cable. When the USB cable is The user can Import Job IDs via Bluetooth using the connected the PC detects the tool as a device on the drive. HYTORC Connect App. Copy the JOBIDS.CSV file from the PC to the tool's drive.
- Page 31 CSV file from the tool to the PC and then press any button to disconnect. A final message is displayed when export is complete. EXPORT JOBS – BLUETOOTH® WIRELESS The user can export data via Bluetooth using the HYTORC Connect App. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 32 (C O N T ’ D . ) JOB DATA FILE FORMAT Job data is saved as a Comma-Separated Value (.CSV) file that can be opened in any standard spreadsheet program. The file will display the column headings shown below, with each row representing a separate trigger pull event. FINAL DATE TIME...
- Page 33 DELETE JOBS The Delete Jobs feature allows the user to delete a single job or all jobs from the tool. Deleted Job data will no longer be accessible, except for diagnostic purposes. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 34 9. PR O FI L E S A Profile is a named, reusable set of tool parameters that may be easily recalled from memory for a particular bolting function or application. Each Profile is assigned a unique a Profile ID (PID) and Profile Type (PTYPE), along with the set of tool parameters required for each specific PTYPE.
- Page 35 Note that the CSV file format does not specify units. The file format assumes the values are created with the working knowledge of the application units set in the tool which can be adjusted in the Settings menu. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 36 PID = SNUG_075, PTYPE = SRF, Snug = 75 ft-lbs, Angle = 0, Release = 0, SNUG_075, SRF, 75, 0, 0, HWR Fastener = HYTORC Washer Right Hand PID = ANGL_120, PTYPE = RAR, Turn Angle = 120 deg, Release = 5 deg,...
- Page 37 Profile ID. Select a Profile Type and enter the appropriate values for that profile. The profile parameters for a Torque profile named PROFILE1 are shown being entered and accepted below. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 38 IMPORT PROFILES – USB CONNECTION Select Import Profile > USB Cable. Once the USB cable is connected, the file PROFILES.CSV can be copied to the "HYTORC" drive on the PC. Press Continue on the tool to complete Import. IMPORT PROFILES – BLUETOOTH WIRELESS The user can Import Profiles via Bluetooth using the HYTORC Connect App.
- Page 39 Profiles may be deleted from the tool by using the Delete Profile option from the Profiles menu. Scroll and select specific profiles to delete from the tool. Scroll and confirm by select Delete to permanently delete the profile from the tool. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 40 Enable/disable the work light. Used to sync tool with HYTORC bolting software. CLOCK The Clock option allows the user to set time and date. First set the time by using the left and right buttons to increase or decrease the highlighted value.
- Page 41 BLUETOOTH The tool can be set to either Bluetooth Classic mode or to Bluetooth Low Energy mode, to pair with the HYTORC Connect App. A black Bluetooth icon on the Home Screen indicates Bluetooth Classic is active. A blue icon indicates Bluetooth Low Energy is active.
- Page 42 (C O N T ’ D . ) ANGLE DELAY BEEPER Time delay between Torque, Angle, and Release in a Allows users to turn the beeper on or off. Scroll and select Torque & Release, Torque & Angle or Angle & Release the setting desired.
- Page 43 WORKLIGHT APP MODE The Worklight is set by default to come on when the trigger When enabled, can be used to sync the tool with HYTORC is pulled and turn off 5 seconds after release. Select "Off" to bolting software.
- Page 44 1 1 . A D M I N The Admin Menu provides options for various administrative functions. NOTE: Not all menu items are available at all access levels. Access Level: Set Tool to desired access level. Tool Info: View information such as firmware version and cycle count.
- Page 45 Flex User options and Shortcut Menu options and to change passwords. Default Password: ADMIN An additional access level is provided primarily for HYTORC authorized service personnel LEVEL 5 for tool setup and maintenance. One Service-level function on the Admin Menu – Tool Service Level Calibration –...
- Page 46 (C O N T ’ D . ) ACCESS LEVEL OPTION/FUNCTIONS The tool can operate at any of five levels, each level having access to different privileges and functions as outlined in the table below. OPTION/FUNCTION MAIN MENU Torque Snug Angle Release Fastener...
-
Page 47: Settings
Shortcut Options Change Password Tool Info Regulatory Info User ID SERVICE Calibrate Tool LEGEND Level has access Function may be made available to the level at the discretion of the Admin LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE... - Page 48 (C O N T ’ D . ) SET ACCESS LEVEL To switch the tool to a lower level select Admin > Access Level. Scroll to the level desired and press the center button to select. The new Access Level is now displayed in the center box at the bottom of the screen.
- Page 49 8 characters. Users can access this function again to clear their User ID. User ID does not appear on the display, but is written into the User ID field of each data record. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 50 (C O N T ’ D . ) L2 FLEX SETUP The L2 Flex Setup menu option allows the Admin to configure bolting options for and make certain functions unavailable to the L2 Flex User. The functions in Blue on the selection menu are available by default. Once the Admin selects an option to remove, the option turns black and will not be available to the Flex user.
- Page 51 10 characters for the custom menu such as “NEW MAIN.” The Admin confirms the new name and moves on to select options that will appear on the custom menu. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 52 (C O N T ’ D . ) Scroll through the options and use the center button to select options to leave off the shortcuts menu. The options selected change color from blue to black. Only the options in blue will appear on the shortcut menu. Once the NEW MENU is accepted it will appear as the primary menu in the place of the main menu.
- Page 53 The Change Passwd option allows an L5 or L4 user to change the password for their level and for each lower access level. Passwords can be up to 8 characters in length with allowable characters: 0 to 9, _, and A to Z. LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
-
Page 54: Appendix
A PPE N D I X ERROR MESSAGES MESSAGE DEFINITION IMPACT ACTION EARLY TRIGGER RELEASE Trigger released before operation None Repeat operation RETRY OPERATION complete LOW BATTERY RE-CHARGE OR Battery is depleted None Re-charge or switch battery CHANGE NOW Tool has exceeded maximum safe OPERATION STOPPED RETRY torque during either an angle or Potential damage to tool... - Page 55 TORQUE CHECK 11, 20-21, 42 TORQUE LIMITS 37, 38, 43 TURN ANGLE 2, 10, 17-19, 42 TURN-OF-NUT SEE TURN ANGLE UNITS 2, 36, 43 USER ID 5, 28, 43, 45 WORKLIGHT LITHIUM SERIES® II ELECTRIC TORQUE TOOL USER INTERFACE GUIDE...
- Page 57 On average, a tool with HY-CARE lasts up to five times longer in service. Never settle for less. *May not be available in all locations. Please contact your local HYTORC representative for more information. VISIT US ONLINE hytorc.com/standard hytorc.com/customer-service-policy...
- Page 58 OUR MISSION IS TO OPTIMIZE SAFETY, QUALITY AND SCHEDULE IN INDUSTRIAL BOLTING THROUGH INNOVATIVE SOLUTIONS AND AN UNYIELDING COMMITMENT TO WORLD CLASS CUSTOMER SERVICE. WITH OVER 50 YEARS OF EXPERIENCE FOCUSED ENTIRELY ON DEVELOPING THE HIGHEST QUALITY INDUSTRIAL BOLTING SYSTEMS, HYTORC IS THE MOST TRUSTED NAME IN THE INDUSTRY.
- Page 60 HYTORC WORLD HEADQUARTERS 333 Route 17 North, Mahwah, NJ 07430 • +201-512-9500 • 800-FOR-HYTORC THE HYTORC UNIVERSE IS MADE UP OF OVER 1,000 TRAINED BOLTING SPECIALISTS TO SUPPORT YOUR BOLTING NEEDS IN OVER 100 COUNTRIES. Locate your nearest HYTORC representative: H Y TO R C .CO M/ WO R LD...
