Page 1

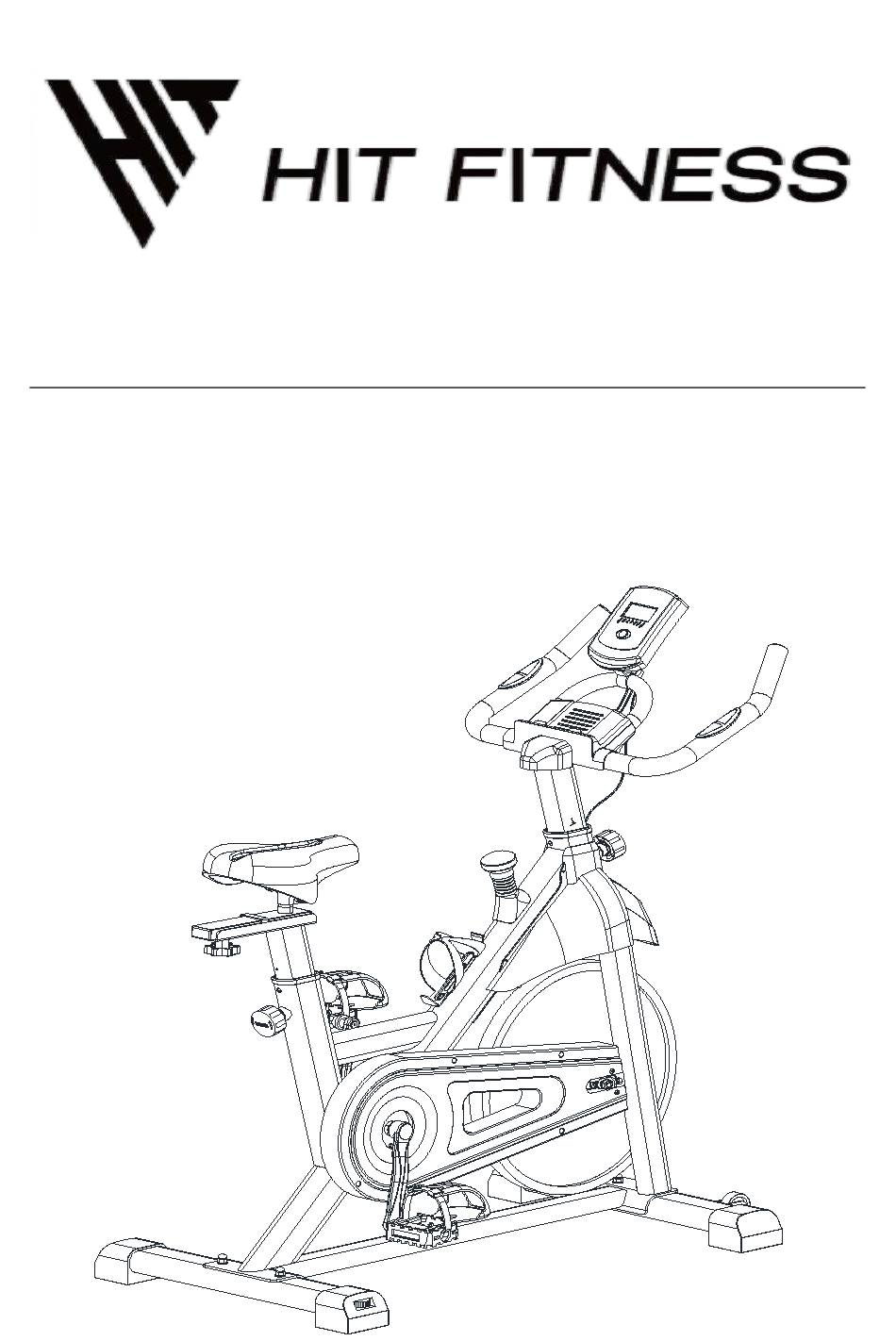

HIT00636 G5 INDOOR CYCLING BIKE USER MANUAL...
Page 2
CAUTION: MAX USER WEIGHT: 120KG BEFORE USING THIS EQUIPMENT, CAREFULLY FOLLOW INSTRUCTIONS AND READ ALL OF THE PRECAUTIONS LISTED, THEN RETAIN THIS USER MANUAL FOR FUTURE REFERENCE. Note: Please read this product manual carefully before installing or using our products...
SAFETY INFORMATION WARNING TO REDUCE THE RISK OF SERIOUS INJURY, READ THE FOLLOWING SAFETY INSTRUCTIONS BEFORE USING THE EQUIPMENT. IMPORTANT: THIS UNIT IS INTENDED FOR HOME USE ONLY 1. It is important to read this entire manual before assembling and using the equipment. Safe and efficient use can only be achieved if the equipment is assembled, maintained and used properly.
PARTS LIST NAME SIZE QTY. NO. NAME SIZE QTY. Main Body Assembly Adjusting nut Front Stabilizer Assembly Carriage Bolts M8X50 Rear Stabilizer Assembly Flat washer Ø8.5 Saddle Post Assembly Cover nut Handle Post Assembly Flat washer Ø10.5 Handle Frame Assembly Button head bolt M8X16 Saddle Adjustment Frame...
Page 6
ASSEMBLY INSTRUCTIONS STEP 1 16# 4psc 17# 4psc 18# 4psc Foot adjusters The Front Stabilizer (2) is fixed on the Main Body (1) with Carriage Bolts (16), Flat washers (17) and cover nuts (18), and fixed with the open wrench (25). Note: the wheels that can be used for transportation on the Front Stabilizer (2) are facing forward, as shown.
Page 7
STEP 2 Install the right pedal (12) with the R mark displayed onto The Main Body (1) and fix it with an open wrench (24). Note: tighten it clockwise. Similarly, Install the left pedal (13) with the L mark displayed onto the Main Body (1) and fix it with an open wrench (24).
Page 8
STEP 3 The Saddle Post (4) is inserted into the Main Body (1), and the Adjusting knob (14) is pulled out so that the Adjusting knob (14) is automatically inserted into the corresponding hole of the Saddle Post (4). Similarly, the Handle Post (5) is inserted into the Main Body (1), and the Adjusting knob (14) is pulled out so that the Adjusting knob (14) is automatically inserted into the corresponding hole of the Handle Post (5).
Page 9
STEP 4 The seat adjustment frame (7) is installed on the seat post (4) and is fixed with a flat washer (19) and an adjusting nut (15). Note: Loosen the adjusting nut (15) to adjust the position of the seat adjusting frame (7) back and forth to the corresponding position.
Page 10
STEP 5 20# 4psc 21# 4psc The handle frame (6) is fixed on the handle post (5) with the spring washer (21) and the round head bolt (20) and tightened with the Allen wrench (25).
Page 11
STEP 6 The Monitor Holder (10) is pulled and fixed on the Handle Frame (6) with the Self tapping screw (24) and tightened with the inner hexagonal wrench (27). The Monitor (9) is mounted on the Monitor Holder (10). Insert the Pulse Wire(22) into the "pulse" hole on the back of the the Monitor (9). Insert the Signal Wire (23) into the "sensor"...
Page 12
STEP 7 Install the Mobile phone holder (11) on the Handle Frame (6). CAUTION: before using, please reconfirm that each part is tight and firm, and the machine is stable.
COMPUTER FUNCTION A, BATTERY INSTALLATION Load two 1.5V AAA battery into the battery box on the back (after both batteries are installed, all values will be "0") B, FUNCTIONALLITY DESCRIPTION 1, automatic scanning (SCAN): open the screen or press the button to enter the SCAN state, all the functions of the TIME-SPD-DIST-CAL-ODO-PUL will be automatically displayed on the main screen.
TRAINING INSTRUCTIONS IN ADDITION TO THE USE OF THIS EQUIPMENT, A REASONABLE DIET SHOULD BE FOLLOWED TO MAINTAIN PHYSICAL FITNESS AND HEALTHY MUSCLES. A, warm-up before training This part of warming up can enhance the body’s blood circulation, and train the muscles, while reducing the risk of cramps and muscle damage during training.
