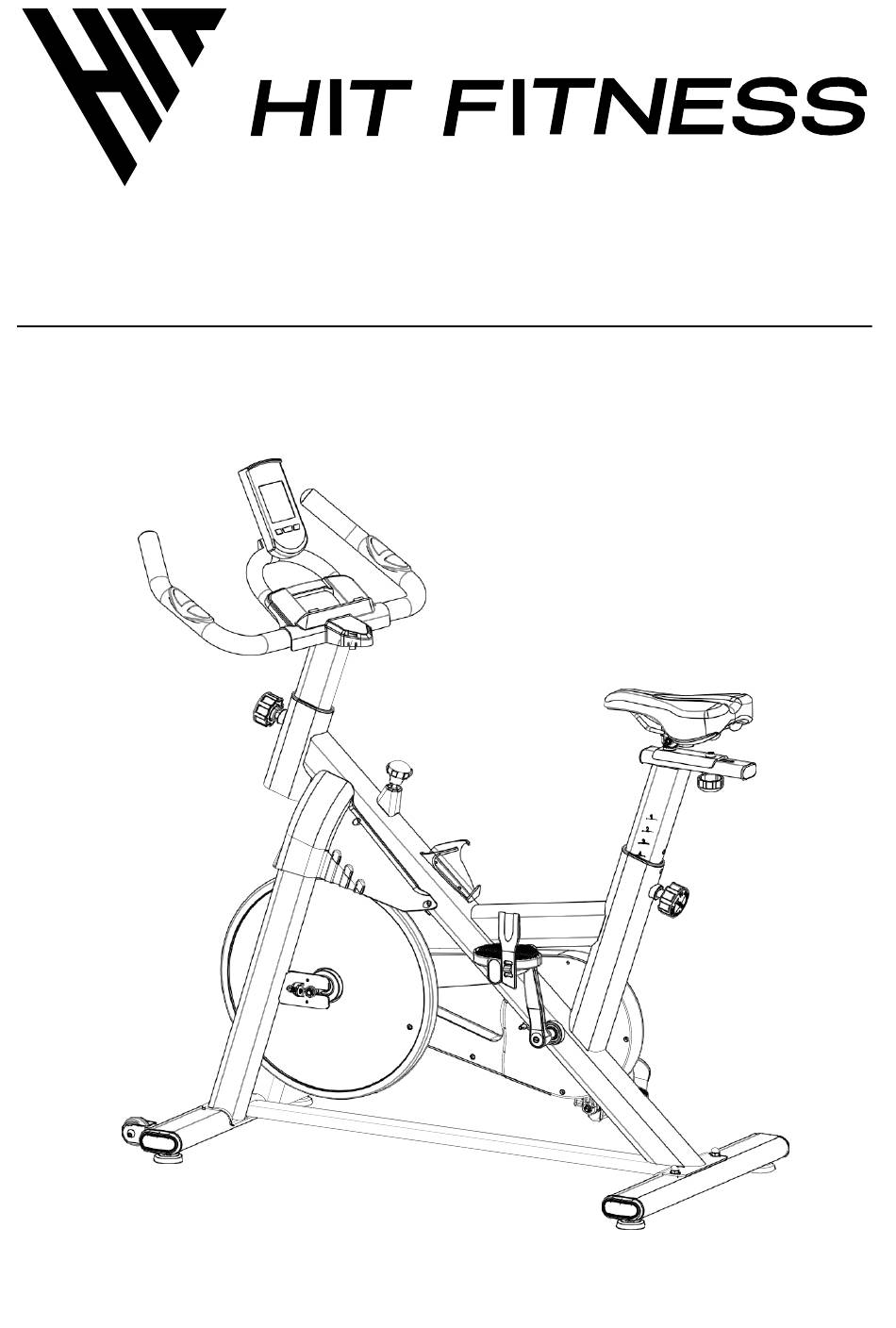

- Page 1 HIT00697 G7 PRO INDOOR CYCLING BIKE USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS Product Brief ......................1 Safety Instructions and Warnings ................5 Installation Instructions ................... 7 Warm-up Suggestions .................... 11 Console Function Instructions ................12 Maintenance ......................13... -
Page 3: Product Brief
1.Product Brief Console Front handlebar Handlebar post Saddle Seat Post Pedal Front stabilizer Rear stabilizer Main Parameters Item Description Item Description Max Load 130kg Product Size 1050*430*1050mm Flywheel 18kg Packing List Item Unit Item Unit Frame Phone Holder Front Stabilizer Front Handlebar Rear Stabilizer Seat Post... - Page 4 Allen Key 5mm Combination Wrench...
- Page 5 PARTS LIST AND TOOLS Item Item Console F-11 External Hexagon Screw Handlebar F-12 Pulley Semi-round tube plug F-13 Left Chain Cover Handlebar cover F-14 Crank Arm(Right) IPAD holder F-15 Pedal(Right) Handlebar Post F-16 Hexagon flange nuts with glue Round Head Internal F-17 Crank cover Hexagon Screw...
- Page 6 Pulley wheel Lock Nut F-10 Axis Bent chain Item Item Bearing Flywheel sleeve Flywheel cover Hex nut Flywheel Allen wrench Flywheel Axle Core Combination wrench...
-
Page 7: Safety Instructions And Warnings
2.Safety Instructions and Warnings To make sure of your safety and avoid injuries, Please read the following instructions carefully before using the bike and also pay attention to the following safety warnings. NOTE：Though the product has been thoroughly considered in terms of safety issues in its design and production, please make sure to follow the instructions below. - Page 8 ◆ If you feel unwell or uncomfortable during use, please stop and consult a physician. ◆ Use qualified sockets to avoid danger. If the plug is not compatible with the socket, please do not touch the plug and ask an electrician to handle it. ◆...
-
Page 9: Installation Instructions
3. Installation Instructions As you assemble it, all screws are simply attached first, and finally tightened after the bike is completely assembled. Step 1. Firstly take out the Front Stabilizer E# and remove the pre-assembled E-1#, E-3#, E-4#. Take out the Rear stabilizer G# and remove the pre-assembled G-1#, G-2#, and G-5#. Install as shown in the figure below: place the front stabilizer, the Rear Stabilizer, and finally use the combination wrench L-2#to secure E-4# and G-1# cap nuts. - Page 10 Step 3. Take out the Seat post D-3# and the Saddle D#from the package, install as shown in the figure below: turn the pull pin knob counterclockwise and put the seat post into the frame and use the pull pin knob to lock it. Use the Combination Wrench L-2# to lock the saddle after adjusting into a proper angle and direction.
- Page 11 Step 5. Take out the Front Handlebar B# and the pre-assembled three combination internal hexagon screws C-1# and install as shown in the figure below: align the front handlebar with the hole of the handlebar post, install the three combination internal hexagon screws, and use the Allen key to secure it.
- Page 12 Please do not lock all screws tightly until you have followed all steps above to assemble the bike. Please inspect carefully before using the bike. You can adjust the height of handlebar and seat with the adjusting knob according to your sitting posture Note: Please don't exceed the STOP mark when adjusting the height of the handlebar post.
-
Page 13: Warm-Up Suggestions
Warm-up Suggestions Warm-up and Stretching WARM-UP The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warming up for two to five minutes before strength training or aerobic exercising can raise your heart rate and warm your working muscles which can also help to avoid injuries. -
Page 14: Console Function Instructions
5.Console Function Instructions FUNCTION BUTTONS MODE a) Press the button to select TIME, DISTANCE, CAL and PULSE to preset. a）To set up the target value of TIME, DISTANCE, CAL and PULSE. b）Hold down the button to speed up the increment. RESET a）Press the button to reset function value when setting . -
Page 15: Maintenance
Maintenance Cleanliness: Comprehensive cleaning will extend the life of the spin bike. Remove dust regularly to keep it clean. Make sure the sports shoes are clean and avoid bringing foreign objects into the spin bike. Maintenance: Replace the defective parts immediately or do not use the spin bike until the defective parts are replaced.
