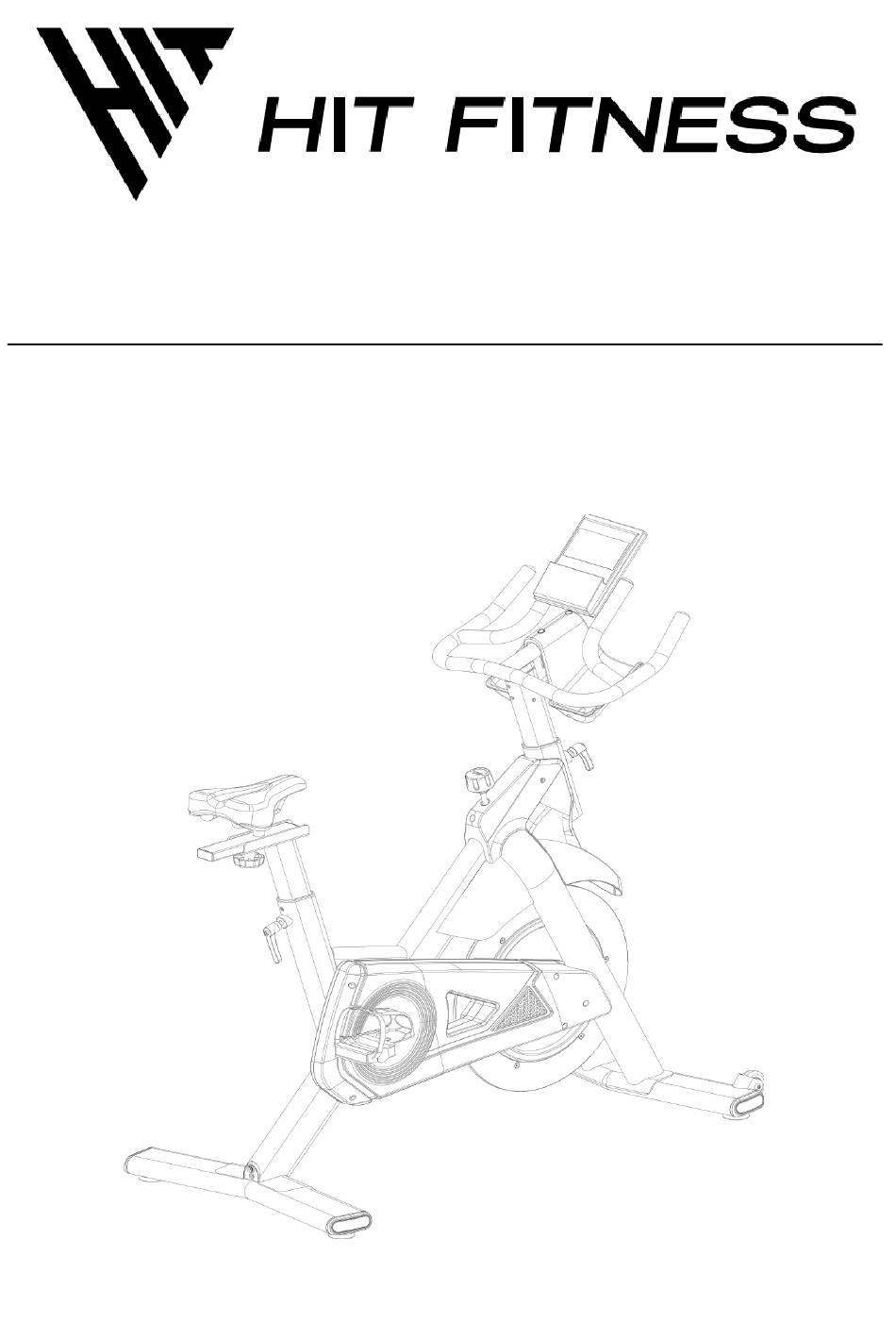

- Page 1 HIT00698 G8 PRO INDOOR CYCLING BIKE USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS 1.Product Brief ……………………………………………………………1 2.Safety Instructions and Warnings ……………………………..………6 3.Installation Instructions ……………………………………………..…8 4.Warm-up Suggestions …………………………………………….…….13 5.Console Function Instructions ………………………………….…..….14 6.Maintenance………………………………………………..……………17... -
Page 3: Product Brief
1. Product Brief Main Parameters Item Description Item Description Power 260W Max load 150kg Product Size Flywheel 20kg 1340*590*1310mm Packing List Item Unit Item Unit Frame Saddle Console Handlebar Post Toolkit Water Bottle Holder Front Stabilizer Water Bottle Holder Cover Rear Stabilizer Handlebar Post Cap Pedals... - Page 4 Exploded Drawing...
- Page 5 PARTS LIST AND TOOLS Item Item Console Adjustment Handle Console Cover Cross Recessed Pan Head Screw Handlebar DC Cover Water Bottle Holder Crank Cover Water Bottle Holder Cover exagon flange nuts with glue Cross Recessed Pan Head Screw Left Crank Arm Handlebar Post C Shaped Buckle Bearing...
- Page 6 Item Item Magnet Holder Set Flywheel Axle Flat washer Flywheel Spacer Spring washer Flywheel Aluminum Rim External Hexagon Screw Socket head cap screws Front stabilizer Sensor cable Stabilizer End cap Connection cable Internal Hexagon Screw Internal Hexagon Screw Transportation wheels Arc Washer Flat washer Flat washer...
-
Page 7: Safety Instructions And Warnings
2. Safety Instructions and Warnings To make sure of your safety and avoid injuries, Please read following instructionscarefully before using the bike and also pay attention to the following safety warnings. NOTE：Though the product has been thoroughly considered in terms of safety issues in its designand production, please make sure to follow the instructions below. - Page 8 ◆ The product is suitable for home use, not for professional training and test, can not be used for medical purposes. ◆ Do not use it when the shell is cracked, broken off (the internal structure is exposed) or the welded part is cracked. ◆...
-
Page 9: Installation Instructions
3. Installation Instructions Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. NOTE：Though the product has been thoroughly considered in terms of safety issues in its design and production, please make sure to follow the instructions below. - Page 10 Step 3. Take out the B-4# Handlebar Post , F-3# Adjustment Handle. Then remove B-5# Handlebar Post Plug. Thread the cable inside the handlebar post and pull it out from the hole. And then pull the plug out of the A notch, and adjust it to a suitable height.
- Page 11 Step 5. Take out the F-23# Right Pedal, F-24# Left Pedal. Do as below: tighten them with L-8# Wrench in the direction of the arrow. Step 6. Take out the B-1# Water Bottle holder and B-2# Water Bottle holder cover, then remove pre-attached 3pcs B-3# Cross Recessed Pan Head Screw M5*14 on the handlebar.
- Page 12 Step 7. Take out the A# Console, A-1# Console cover, then take out the L-5# Cross Recessed Pan M5*20 from the toolkit. Pass the cable through the console cover in turns, and then Head Screw insert them into the slots on the back of the console, then place the console and the console cover on the handlebar, and lastly use L-8# wrench to lock.
- Page 13 Please do not lock all screws tightly until you have followed all steps above to assemble the bike. Please inspect carefully before using the bike Handlebar/Seat Height Adjustment： You can adjust the handlebar height and seat height with the Adjustment Handles according to your sitting posture Note: Please don't exceed the STOP mark when adjusting the height of the handlebar post.
-
Page 14: Warm-Up Suggestions
4. Warm-up Suggestions Warm-up and Stretching WARM-UP The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warming up for two to five minutes before strength training or aerobic exercising can raise your heart rate and warm your working muscles which can also help to avoid injuries. -
Page 15: Console Function Instructions
5. Console Function Instructions I. Full Display menu II. Button function In setting mode, to select GENDER, increase TIME/DISTANCE/CALORIE/AGE/WEIGHT/HEIHGT; Set the clock and alarm in clock mode; In settingmode, to select GENDER,decrease TIME/DISTANCE/CALORIE/AGE/WEIGHT/HEIHGT; Set the clock and alarm in clock DOWN mode;... - Page 16 IV. Function Description 1. SCAN After power-on, the console will auto-scan TIME/SPEED/DISTANCE/CALORIE/PULSE/RPM in every 6 seconds, press MODE to exit auto-scan. User can press UP or DOWN button to enter manual scan mode and set target value of TIME/DISTANCE/CALORIE/PULSE and press MODE to confirm. When setup is completed, console will exit the manual scan and show “SCAN”...
- Page 17 9. BODY FAT 9.1 Setting: Press SET button, the screen shows MALE icon, and use UP/DOWN button to select the Gender. Press MODE button to confirm and the screen goes to AGE setting. Use UP/DOWN button to set the number and press MODE to enter HEIGHT setting.
-
Page 18: Maintenance
Feature 1. The transmission frequency is 5.3K Hz and it is compatible with POLAR. 2. The battery willl ast for 10 month (assume to be used 1 Hour/ day) 3. Battery: 1pcs CR203 Component A. Sensor B. Connection Belt C. Transmitter D.
