- Page 1 R E P U B L I C Sofa with Drop-Down Table A S S E M B LY & G E N E R A L U S E G U I D E 4044 Rev. 10/04/2023...
-
Page 2: Table Of Contents
Table of Contents What’s Inside the Box Step 1: Connect the Power Headrest Cables Step 2: Attach the Backrests to the Seat Base Step 3: Connect the Power Cables Step 4: Attach the Tray Tables Step 5: Opening the Drop-Down Table Using the Power Control Panel Using the Reading Light Using the USB/Power Panel... -
Page 3: What's Inside The Box
What’s Inside the Box A. RAF BACKREST B. MIDDLE BACKREST C. LAF BACKREST D. RAF RED BAG E. MIDDLE RED BAG F. LAF RED BAG A. RAF BACKREST B. MIDDLE BACKREST C. LAF BACKREST D. RAF RED BAG E. MIDDLE RED BAG F. -
Page 4: Step 1: Connect The Power Headrest Cables
STEP 1 Connect the Power Headrest Cables Connect each Powered Headrest Female Cable to each Powered Headrest Male Cable. PAGE 3... -
Page 5: Step 2: Attach The Backrests To The Seat Base
STEP 2 Attach the Backrests to the Seat Base Slide the Backrest Female Brackets onto the Backrest Male Brackets. Push until you hear a click on both sides. This will indicate that each backrest is secured. PAGE 4... -
Page 6: Step 3: Connect The Power Cables
STEP 3 Power Adapter Power Adapter Cable USB/110V Power Cable Power Adapter Cable Power Adapter Headrest Light Power Cable Connect the Power Cables End Seats: Plug in the Power Adapter Cable to the Power Adapter. Connect the Power Adapter to the seat base. Middle Seat: Plug in the Headrest Light Power Cable to seat base. -
Page 7: Step 4: Attach The Tray Tables
STEP 4 Attach the Tray Tables Open the in-arm storages to find your Tray Tables. Place each Tray Table into an accessory mount. PAGE 6... -
Page 8: Step 5: Opening The Drop-Down Table
STEP 5 Using the Fold-Down Table Lift the headrest then pull down on the backrest to open the Fold-Down Table. Push the button on the USB/110V Panel to access it. PAGE 7... -
Page 9: Using The Power Control Panel
Using the Power Control Panel A M B I E N T U S B C H A R G I N G L I G H T P O R T P O W E R P O W E R H O M E B U T T O N H E A D R E S T R E C L I N E... -
Page 10: Using The Reading Light
Using the Reading Light L E F T R E A D I N G L I G H T R I G H T R E A D I N G L I G H T LEFT LIGHT POWER SWITCH Push to turn the left reading light on or off. -
Page 11: Using The Usb/Power Panel
Using the USB/Power Panel 1 1 0 V O U T L E T U S B C H A R G I N G O U T L E T S 110V OUTLET Plug device in to power it. USB CHARGING OUTLETS Plug in USB-powered device to charge it. -
Page 12: Troubleshooting Guide
Troubleshooting Guide Why aren’t my chairs reclining? The Power Adapters have become loose or disconnected. Unplug and re-plug in the The green light on the Unplug and re-plug in Power Adapter to a wall Power Adapter should be the Power Adapter to the outlet. - Page 13 Troubleshooting Guide Why won’t the reading light on the drop-down table turn on? The Reading Light Power Cable has become loose or disconnected. Unplug and re-plug in the Unplug and re-plug in Power Adapter to a wall the Reading Light Power outlet.
- Page 14 Troubleshooting Guide How come the lights on my cupholder are not lighting up? The Power Adapter has become loose or disconnected. Unplug and re-plug in the The green light on the Unplug and re-plug in Power Adapter to a wall Power Adapter should be the Power Adapter to the outlet.
-
Page 15: Seat Part Lists
Seatcraft Republic with Power Recline Seatcraft Republic Left Recliner Single Arm LAF Home Theater Seat 7406 Hinge PR-54-610 Aligner Kit for Storage Arm PR-43-503 Gas Shock PR-43-514 Insert for Cup Holder PR-43-507 Bracket Backrest Female PR-54-602 Backrest Cup Holder LED Stainless Steel... - Page 16 Seatcraft Republic Middle Seat 7406 Reading Light PR-54-618 Hinge for Drop Down Headrest PR-54-616 Wireless Charging Station Silver PR-54-617 Backrest Bracket Backrest Female PR-54-602 Adapter Reading Light PR-21-306 Foot Plastic for Metal Base PR-43-517 Revised 3/29/2019 PAGE 15...
- Page 17 Seatcraft Republic with Power Recline Seatcraft Republic Right Recliner Single Arm RAF Home Theater Seat 7406 Hinge PR-54-610 Aligner Kit for Storage Arm PR-43-503 Gas Shock PR-43-514 Insert for Cup Holder PR-43-507 Bracket Backrest Female PR-54-602 Cup Holder LED Stainless Steel...
-
Page 18: Proposition 65 Information
Proposition 65 Information What is Proposition 65? You might have seen Proposition 65 warning labels at hotels, banks, restaurants, and even at theme parks. Proposition 65 is a California law that requires warning labels on products that may contain one of more than 800-plus chemicals or ingredients that the California Office of Environmental Health Hazard Assessment (OEHHA) has deemed to cause cancer or other reproductive toxicity. -
Page 19: Important Safety Information
Important Safety Instructions T O R E D U C E T H E R I S K O F E L E C T R I C DA NGER S H O C K O R S E R I O U S I N J U R Y : •... -
Page 20: Warranty Info & Contact Information
Warranty Information Seatcraft is proud of its high standards of quality and workmanship that go into our products. The customer is protected by the following Limited Warranty, which applies to seats under normal indoor residential use. This warranty does not apply to seats used for commercial, institutional, or other non-residential uses.
Need help?
Do you have a question about the REPUBLIC and is the answer not in the manual?
Questions and answers

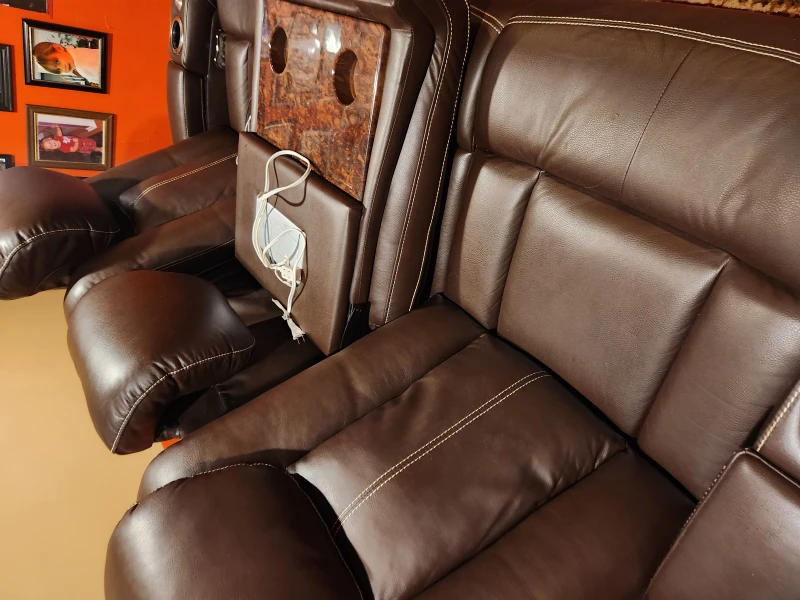

How to take apart to move it. I need to take backs off
To disassemble the Seatcraft Republic for moving:
1. Disconnect all modular units.
2. Ensure the power is unplugged from the wall outlet.
3. Secure all moving parts to prevent unexpected opening or movement.
4. Do not move the product by the mechanism, leg rest, handle, reclining back, or swivel base.
5. Grip only non-moving parts when lifting or moving.
Always supervise and use care to avoid injury.
