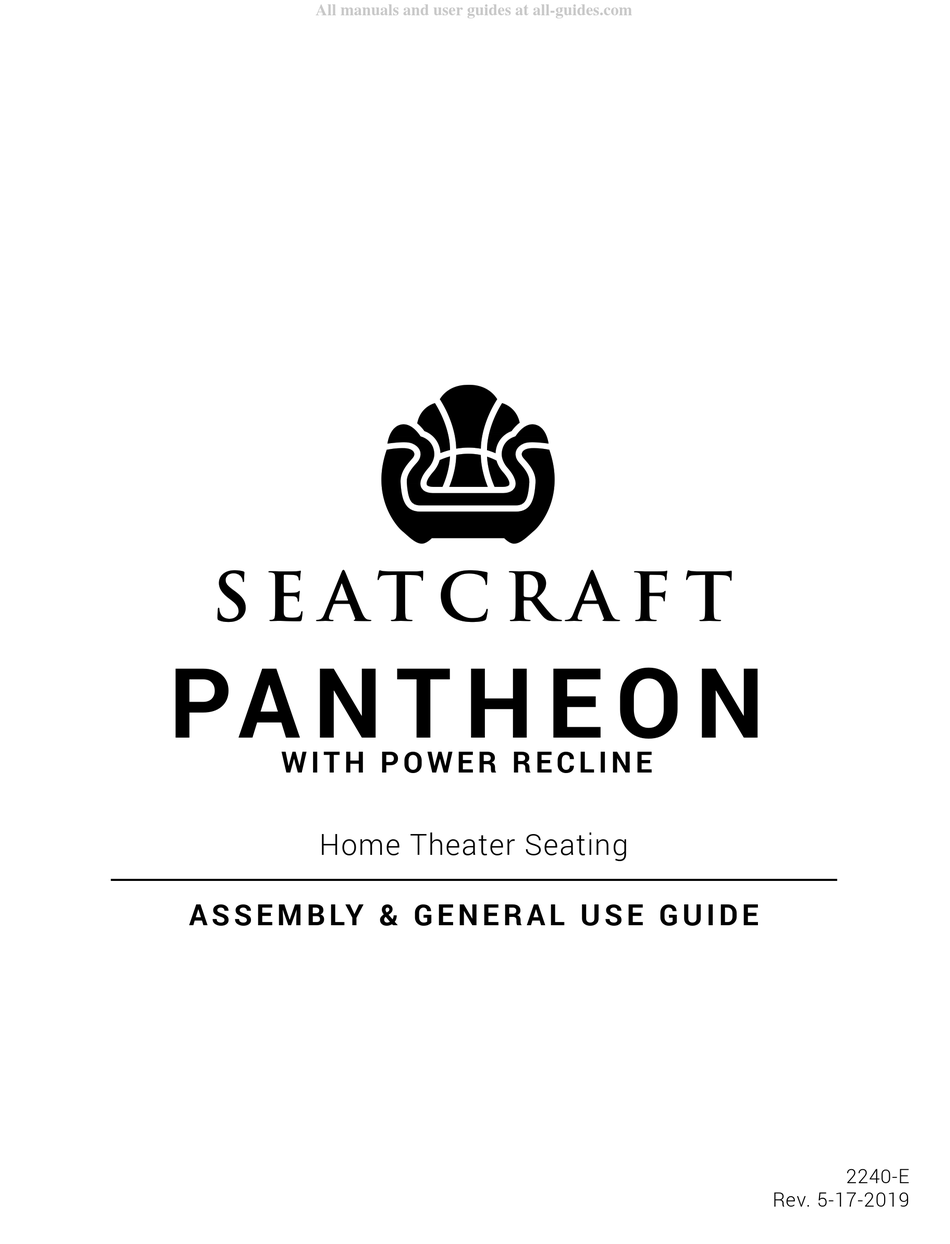

- Page 1 All manuals and user guides at all-guides.com PA N T H E O N W I T H P O W E R R E C L I N E Home Theater Seating A S S E M B LY & G E N E R A L U S E G U I D E 2240-E Rev.
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents What’s Inside the Box Step 1: Connect the Power Headrest and Lumbar Cables Step 2: Attach the Backrest to the Seat Base Step 3: Connect the Power Cable Step 4: Attach the Tray Table Using the Power Control Panel Troubleshooting Guide 8-10... -
Page 3: What's Inside The Box
All manuals and user guides at all-guides.com What’s Inside the Box 1. BACKREST 2. SEAT 3. RED BAG (Includes: Power Adapter & Power Adapter Cable) 1. BACKREST 2. SEAT 3. RED BAG PAGE 2... -
Page 4: Step 1: Connect The Power Headrest And Lumbar Cables
All manuals and user guides at all-guides.com STEP 1 Connect the Power Headrest and Lumbar Cables Connect the Powered Headrest Female Cable to the Powered Headrest Male Cable. Connect the Powered Lumbar Female Cable to the Powered Lumbar Male Cable. Lock both cables together. -
Page 5: Step 2: Attach The Backrest To The Seat Base
All manuals and user guides at all-guides.com STEP 2 Attach the Backrest to the Seat Base Slide the Backrest Female Brackets onto the Backrest Male Brackets. Push until you hear a click on both sides. This will indicate that the backrest is secured. PAGE 4... -
Page 6: Step 3: Connect The Power Cable
All manuals and user guides at all-guides.com STEP 3 Power Adapter Power Adapter *SoundShaker Cable Cable Optional Connect the Power Cable Plug the Power Adapter Cable into the Power Adapter. Connect the Power Adapter to the Power Recline Cable. Lock the two cables together. PAGE 5... -
Page 7: Step 4: Attach The Tray Table
All manuals and user guides at all-guides.com STEP 4 Attach the Tray Table Open the in-arm storage to find your Tray Table. Place the Tray Table into the accessory mount. PAGE 6... -
Page 8: Using The Power Control Panel
All manuals and user guides at all-guides.com Using the Power Control Panel U S B C H A R G I N G L I G H T S P O R T H O M E B U T T O N P O W E R P O W E R R E C L I N E... -
Page 9: Troubleshooting Guide
All manuals and user guides at all-guides.com Troubleshooting Guide Why isn’t my chair reclining? The Power Adapter has become loose or disconnected. Unplug and re-plug in the The green light on the Unplug and re-plug in Power Adapter to a wall Power Adapter should be the Power Adapter to the outlet. - Page 10 All manuals and user guides at all-guides.com Troubleshooting Guide Why isn’t my chair’s power lumbar functioning? The Powered Lumbar Cables have become loose or disconnected. Unplug and re-plug Unplug and re-plug in The green light on the Unplug and re-plug in the Powered Lumbar the Power Adapter to Power Adapter should...
- Page 11 All manuals and user guides at all-guides.com Troubleshooting Guide How do I remove the backrest from the seat base? The Backrest Female Bracket has a locking tab. Pull up on the locking tab on the Backrest Female Bracket and firmly pull the backrest upward.
-
Page 12: Seat Part List
All manuals and user guides at all-guides.com Seatcraft Pantheon with Power Recline Double Arm Home Theater Seat 2240-E PRODUCTION DATE: 4/1/2017 - CURRENT POWER HEADREST MECHANISM BRACKET HINGE FOR ARMREST PT-EAS16001 PT-EAS16009 GAS SHOCK SET PT-EAS16005 BRACKET OF KD BACKREST... -
Page 13: Proposition 65 Information
All manuals and user guides at all-guides.com Proposition 65 Information What is Proposition 65? You might have seen Proposition 65 warning labels at hotels, banks, restaurants, and even at theme parks. Proposition 65 is a California law that requires warning labels on products that may contain one of more than 800-plus chemicals or ingredients that the California Office of Environmental Health Hazard Assessment (OEHHA) has deemed to cause cancer or other reproductive toxicity. -
Page 14: Important Safety Instructions
All manuals and user guides at all-guides.com Important Safety Instructions TO REDUCE THE RISK OF ELECTRIC DANGER SHOCK OR SERIOUS INJURY: • Disconnect the electrical plug from the wall outlet before • Do not use this product if it is wet, in water, around water or cleaning, moving, servicing or when not in use for an any liquid. -
Page 15: Warranty Info & Contact Information
All manuals and user guides at all-guides.com Warranty Information Seatcraft is proud of its high standards of quality and workmanship that go into our products. The customer is protected by the following Limited Warranty, which applies to seats under normal indoor residential use. This warranty does not apply to seats used for commercial, institutional, or other non-residential uses.
