Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per MSI Infinite 8RC-264EU o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation Infinite Series Personal Computer MS-B915 System G52-B9151X8...
Contents Copyright Notice ������������������������������������������������������������������������������������������������������iii Trademarks �������������������������������������������������������������������������������������������������������������iii Revision ������������������������������������������������������������������������������������������������������������������iii Upgrade and Warranty ��������������������������������������������������������������������������������������������iv Acquisition of Replaceable Parts ����������������������������������������������������������������������������iv Technical Support ���������������������������������������������������������������������������������������������������iv Green Product Features ������������������������������������������������������������������������������������������iv Environmental Policy ����������������������������������������������������������������������������������������������� v Chemical Substances Information �������������������������������������������������������������������������� v Battery Information �������������������������������������������������������������������������������������������������� v Safety Instructions ���������������������������������������������������������������������������������������������������vi CE Conformity �������������������������������������������������������������������������������������������������������...
Preface Copyright Notice The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL� We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents� Our products are under continual improvement and we reserve the right to make changes without notice�...
If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor� Alternatively, please try the following help resources for further guidance� Visit the MSI website for technical guide, BIOS updates, driver updates and other information via http://www�...
Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products� ◙ Visit the MSI website and locate a nearby distributor for further recycling information� ◙ Users may also reach us at gpcontdev@msi�com for information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products�...
Safety Instructions ◙ Read the safety instructions carefully and thoroughly� ◙ All cautions and warnings on the equipment or user’s manual should be noted� Keep the User’s Guide that comes with the package for future reference� Keep this equipment away from humidity and high temperature� Lay this equipment on a reliable flat surface before setting it up.
Page 7
Preface Never pour any liquid into the opening that could damage or cause electrical shock� Place the power cord in a way that people are unlikely to step on it� Do not place anything on the power cord� ◙ When installing the coaxial cable to the TV Tuner, it is necessary to ensure that the metal shield is reliably connected to protective earthing system of the building�...
CE Conformity Hereby, Micro-Star International CO�, LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive� FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules�...
Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products�...

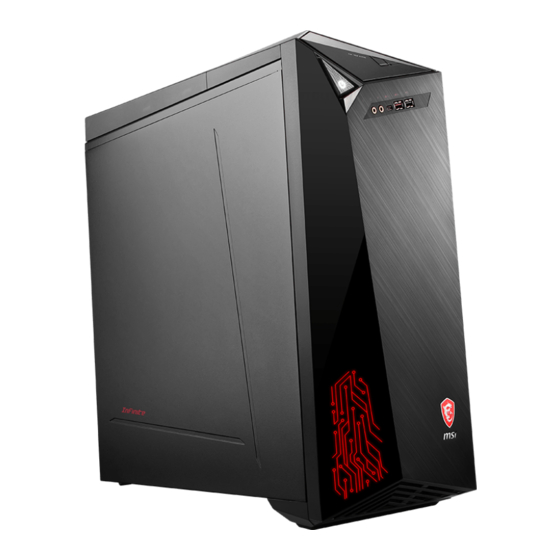

Overview Congratulations for purchasing the Infinite Series Personal Computer System. This system is your best PC choice� With the fantastic appearance, it can easily be set anywhere� The feature packed platform also gives you an exciting PC experience�...
Packing Contents System AC Power Cord Driver/ Utility Disc User Manual Warranty Card Warranty Book & Quick Guide HDMI Cable (Optional) Mouse (Optional) Keyboard (Optional) (for VR Link Port) Hexagon Screw x4 Hand Screw x4 Physical Tempered (Optional) (Optional) Glass (Optional) * Please contact us immediately if any of the items is damaged or missing�...
Overview System Overview Front View Power Button Press the power button to turn the system on and off. Hard Disk Drive LED This indicator shows the activity status of the HDD. It flashes when the system is accessing data on the HDD and remains off when no disk activity is detected�...
Page 14
USB 3�1 Gen1 Port (Type-A) The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices� It supports up to 5Gbit/s (SuperSpeed) data transfer rate� The USB 3�1 Gen1 port is backward-compatible with USB 2�0 devices� USB 2�0 Port The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices�...
Page 15
Overview Rear View Infinite A (7A70) Infinite (7A82)
Page 16
USB 2�0 Port The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices� It supports up to 480Mbit/s (Hi-Speed) data transfer rate� LAN Jack The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN)�...
Page 17
Overview Line-Out (Green) Used as a connector for speakers or headphones� Line-In (Blue) Used for connecting external audio outputting devices� PS/2 Keyboard Port ® The PS/2 keyboard DIN connector for PS/2 keyboard� ® ® PS/2 Mouse Port ® The PS/2 mouse DIN connector for PS/2 mouse�...
Getting Started This chapter provides you with the information on hardware setup procedures� While connecting peripheral devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity�...
Safety & Comfort Tips The Personal Computer System is a portable platform that allows you to work anywhere� However, choosing a good workspace is important if you have to work with your PC for a long period of time� 1� Your work area should have enough illumination� 2�...
Getting Started Connecting Peripheral Devices The I/O (input/output) ports on the rear panel allow you to connect peripheral devices� All devices listed here are for reference only� Connecting VGA, DVI-D or HDMI-Out Devices This Personal Computer System provides VGA, DVI-D or HDMI-Out ports for connection to external monitors, projectors or other output devices�...
Page 22
Connecting the USB Devices This Personal Computer System provides USB ports for connecting various USB devices, such as mouse, keyboard, digital camera, webcam, printer, external optical storage device, etc. To connect these devices, install the drivers for each device first if necessary, and then connect the device to the Personal Computer System�...
Page 23
Getting Started Connecting the Network Device The RJ-45 connector of the Personal Computer System allows you to connect the LAN (local area network) devices, such as a hub, switch and gateway, to build a network connection� For more instructions or detailed steps on connecting to the LAN, please ask your MIS staff or network manager for help.
Hardware Setup Connecting the AC Power 1� Unpack the package to find the AC power cord. Plug one end of the AC power cord to the Personal Computer System� 2� Plug the male end to the electrical outlet� Disconnecting the AC Power 3�...
Page 25
Getting Started Powering on the System Press the power button to power on the system�...
System Operations This chapter provides you with essential information on system operations� Important All information is subject to change without prior notice�...
Power Management Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits. To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity�...
Page 29
System Operations Energy Saving Tips: ■ Turn off the monitor by pressing the monitor power button after a period of user inactivity� ■ Tune the settings in Power Options under Windows OS to optimize your PC’s power management� ■ Install power saving software to manage your PC’s energy consumption� ■...
Network Connection (Windows 10) Wired Network 1� Right-click [Start] and select [Control Panel] from the list� 2� Select [View network status and tasks] under [Network and Internet]� 3� Select [Set up a new connection or network]�...
Page 31
System Operations 4� Choose [Connect to the Internet] and click [Next]� 5� Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password� 6� Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection�...
Page 32
Wireless Network 1� Go to [Start] , click [Settings] and select [Network and Internet]� 2� A list of available WLAN connections pops up� Choose a connection from the list� 3� To establish a new connection, select [Network and Sharing Center]� 4�...
System Operations System Recovery (Windows 10) The purposes for using the System Recovery Function may include: ■ Restore the system back to the initial status of original manufacturer’s default settings� ■ When some errors have occurred to the operating system in use� ■...
Page 34
Reset this PC 1� Go to [Start] , click [Settings] and select [Update and security]� 2� Select [Recovery] and click [Get started] under [Reset this PC] to start the system recovery� 3. The [Choose an option] screen pops up. Choose between [Keep my files] and [Remove everything]�...
Page 35
System Operations Keep my files 1. Select [Keep my files]. 2� The [Your apps will be removed] screen shows a list of apps that will need to be reinstalled from the web or installation discs� Click [Next] to continue� 3� The next screen will show the changes to be made during the process� Click [Reset] to start the system reset�...
Page 36
Remove everything 1� Select [Remove everything]� 2� If you have multiple hard drives, a screen will pop up, asking you to choose between [Only the drive where Windows is installed] and [All drives]� 3. Then select between [Just remove my files] and [Remove files and clean the drive]. 3-10 4�...
