SWIT S-2070 User Manual

Chip-Array LED Camera Light S-2070
Ver: B
Features
◆
New generation chip-array LED technology, outputs bright but soft and glareless light;
◆ 60°wide beam angle, equally spread light, single shadow;
◆ 13W power consumption, 1100Lux @ 1meter, 10%-100% dimmer;
◆ 5000K color temperature, 5600K and 3200K filter;
◆ 6V-17V wide voltage input via D-tap power cable or standard DV battery;
◆ High intensity and toughness glass fiber housing, screw and cold shoe mount.

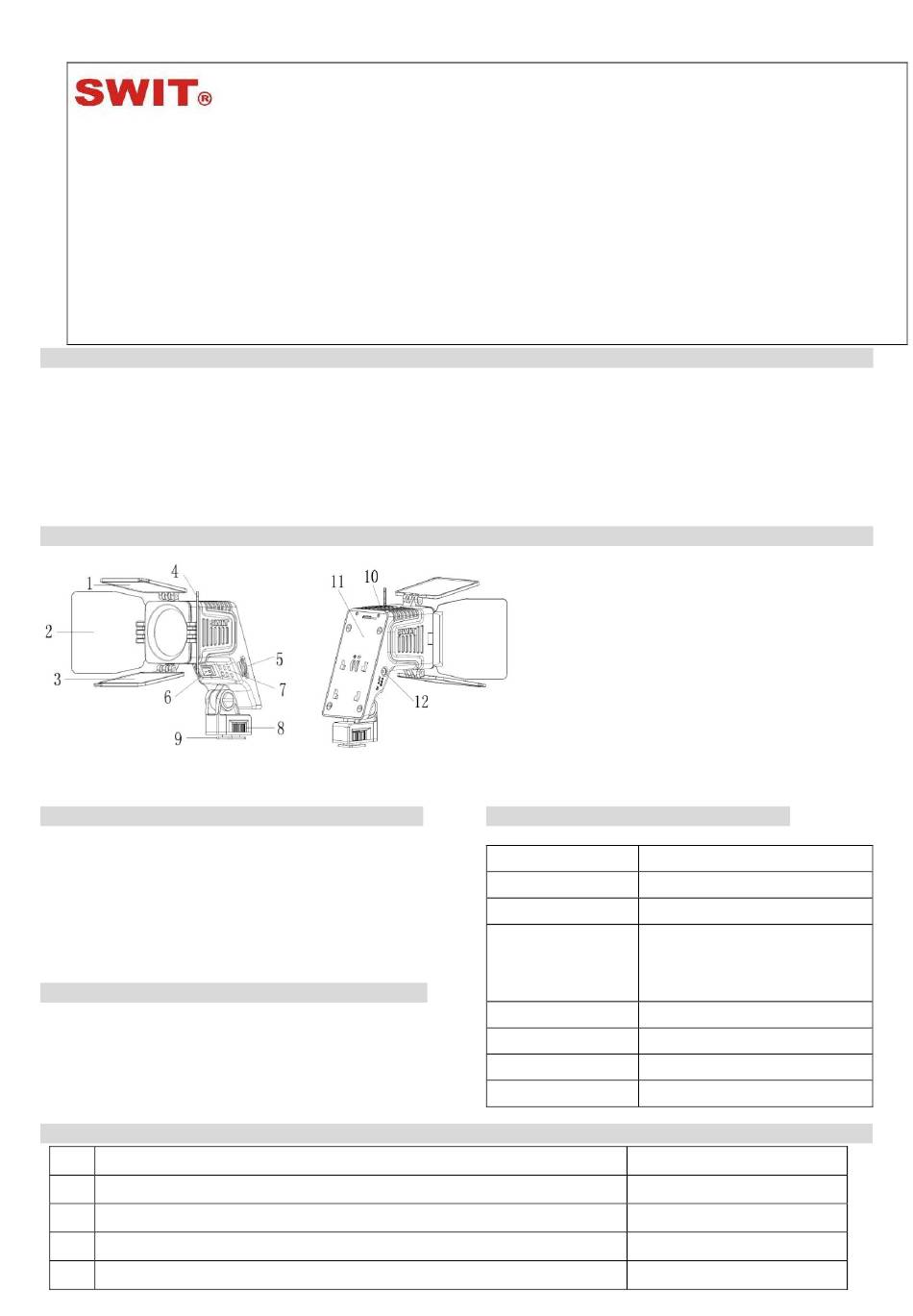

Product view
Fig 1
Cautions
1. Do not disassemble the light or touch the interior with
metal objects to prevent damaging the equipment.
2. Do not store the light in dusty or wet environment to
avoid damage.
3. Working temperature is between -10℃ and 40℃.
4. Storage temperature is between -20℃ and 55℃.
5. Do not block the cooling vent.
Cleaning
Clean the light and diffuser with a soft dry cloth, or clean
with a soft cloth dipped with neutral detergent first, and
then wipe with a soft dry cloth. Do not clean the light and
diffuser with a wet cloth, anhydrous alcohol, benzene,
mixture of anhydrous alcohol and ether to avoid damage.
Packing List
1 S-2070 LED light
2 S-7004 series snap-on DV plate（optional for different types）
3 Portable bag
4 Warranty card
5 User manual
USER MANUAL
SWIT Electronics Co., Ltd.
Fig 2
Specification
Input voltage
Power consumption
Beam angle
illuminance
Color temperature
CRI
Weight
Dimensions
1 5600K filter 7
2 Barn door 8
3 3200K filter 9
4 Barn door 10 Cooling vent
5 Dimmer knob 11 DV plate slot
6 Power Switch 12 DC-IN socket
DC 6V~17V
Approx. 13W
Approx. 60°
Approx. 1100lux @1m(5000K)
Approx. 800lux@1m(5600K)
Approx. 400lux @1m(3200K)
5000K and 5600K/3200K switchable
88
Approx. 274g
108mm×80mm×133mm
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
Cooling vent
Fasten knob
Cold shoe
X1
X1
X1
X1
X1
