SWIT S-2070 User Manual

Chip-Array LED Camera Light S-2070
Ver:V1.0.0V01
Congratulations on your purchase of this product. Please read this user manual carefully.

Features

New generation chip-array LED technology, outputs bright but soft & glareless light;
◆
60 w ide beam angle, equally spread light, no visible lighting edge and single shadow;
◆ °
◆ 13W lower power consumption, 800Lux @ 1meter, equivalent to 70W halogen bulb, 10%-100% dimmer
◆ 5000K output, 5600K/3200K filter;
◆ 6V-17V wide voltage input , support D-tap power, standard DV battery and special slim battery;
High intensity and toughness glass fiber housing, cool-touch, and both screw and cold shoe install.
◆

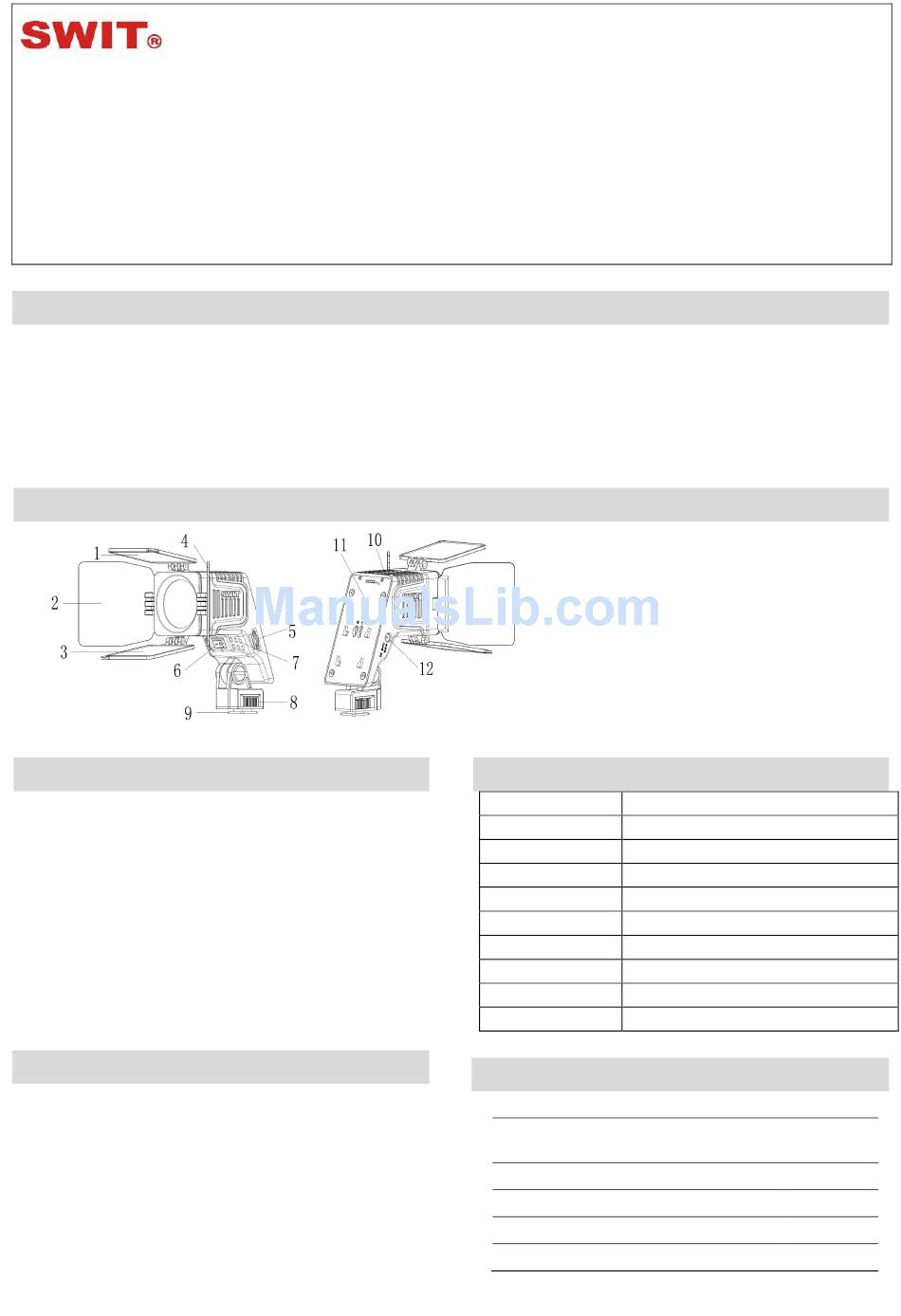

Product view

Fig1
Caution
1. Never attempt to open the device. Refer all
servicing to qualified personnel.
2. Never insert anything into the cooling vent to
avoid damage or short circuit.
3. Keep the light away from rain or moisture.
4. Please do not stare at the turned on LED light.
5. Keep the filters clean.
6. When powering through DC-IN socket by D-tap
cable, please make sure the power supply's
voltage and power meet the light input
requirements.
7. Working temperature: -10 ~40
8. Keep the cooling vent clear to avoid damage.

Clean

Use a soft, dry cloth to clean the LED light. If you
clean the light with soft cloth slightly moistened with
neutral detergent, please dry the surface of the
light with a soft, dry cloth. Do not use a damp cloth
or alcohol, gasoline and other solvents of any kind.
USER MANUAL
SWIT Electronics Co., Ltd.
Fig2
℃ ℃
1 5600K filter
2 Barn door
3 3200K filter
4 Barn door
5 Dimmer knob
6 Switch on/off

Specification

Model
Input
Power
Beam angle
Illuminance
Color temperature 5000K itself, with 5600K&3200K filter
Working temp.
Storage temp.
Dimension
Mass
Package
S-2070 light
S-7004 snap-on DV battery plate
(Optional types for different batteries)
DC cable (D-tap or Pole-tap optional)
User manual
Warranty card
Portable bag
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
7 Cooling vent
8 Fasten knob
9 Cold shoe
10 Cooling vent
11 DV plate install
12 DC-IN socket
S-2070
DC 6V-17V
Approx. 13W
Approx. 60°
800 lux @ 1 meter
-10°C~+40°C
-20°C ~+55°C
108×80×133mm
Approx. 274g
x1
x1
x1
x1
x1
x1
