SWIT PB-H260S User Manual

PB-H260S
Intelligent 14.4V/28.8V Bi-Voltage Li-ion Battery
Thank you for purchasing this product. We strongly recommend reading this user manual carefully before using, and keeping this user manual for
future reference.
Improper using of the Li-ion battery pack may cause heat, smoke, fire, or explosion. Please be sure to keep in mind the following precautions.
DANGER
Charge with SWIT chargers only.
●
Do not use battery in fire or hot places to prevent overheating, cracking and
●
other hazards.
Do not use battery beyond charge, discharge and storage environment
●
temperature.
Do not charge the battery in the car or in direct sunlight.
●
Do not pierce the battery shell or try to open the shell and decompose the
●
battery.
Do not squeeze the battery shell which may cause physical damage.
●
Do not use housing damaged battery.
●
Keep the battery terminals clean and never short-circuit the battery terminals.
●
Keep out of the reach of children.
●

Features

14.4V/28.8V Bi-voltage auto switch
◆
Compatible with normal voltage devices of 11-16.8V input
◆
Compatible with high voltage devices of 22-33.6V input
◆
Compatible with normal voltage chargers of 16.8V output
◆
260Wh capacity, Max 350W constant high load
◆
6A fast charging support
◆
8-LED remaining time indicators
◆
Normal V-mount connection
◆
Strong 1.5m drop-off proof, IP54 dust & water proof
◆
Multiple Circuit Protections
◆

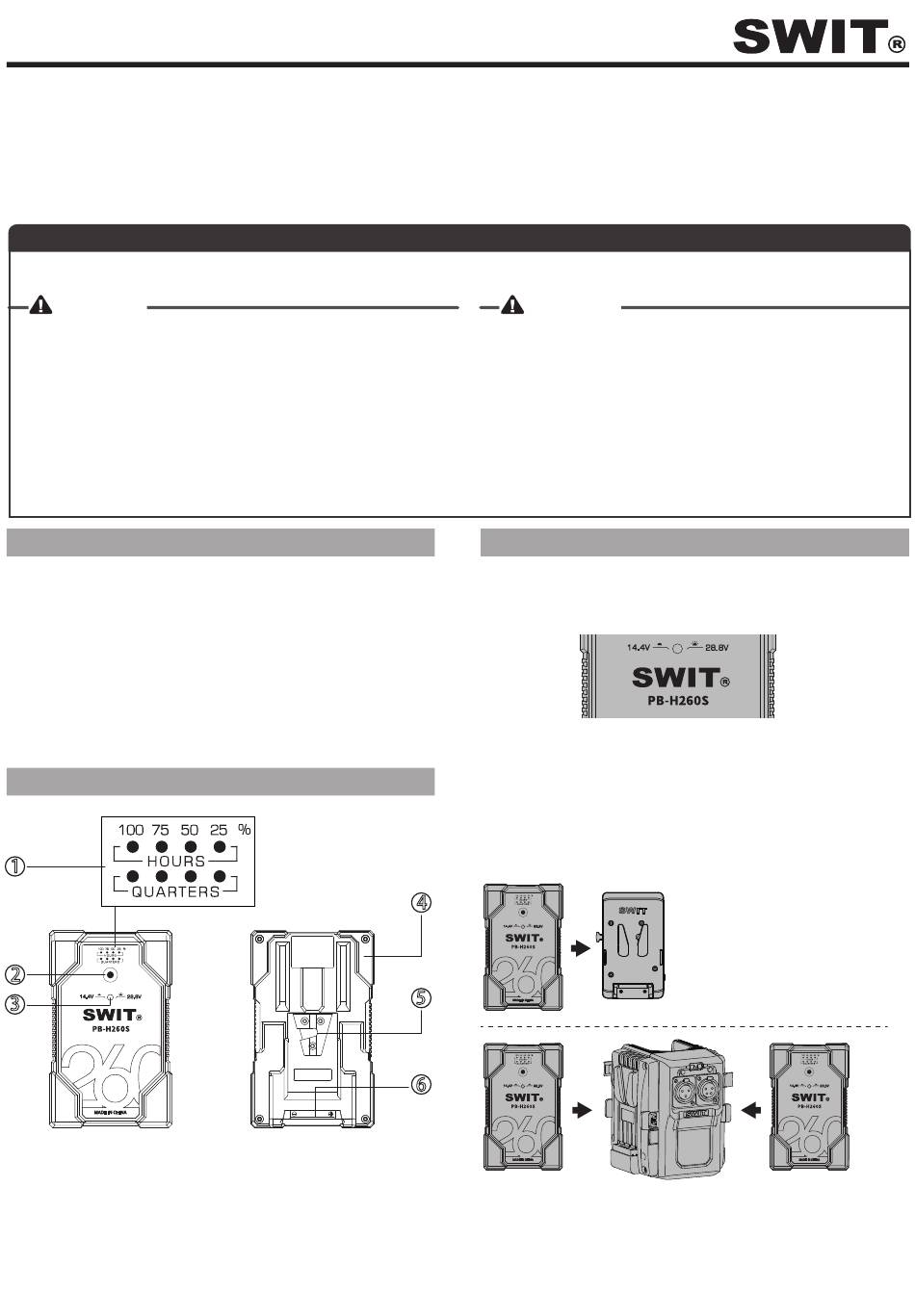

Product Appearance

1
2
3
① LED power indicators
② Power check button
③ 14.4V/28.8V status indicator
User Manual

For Your Safety

4
5
6
④ Protective rubber covers
⑤ V- wedge
⑥ Power electrodes
WARNING
Fully charged battery will discharge naturally and please use it as
●
soon as it gets charged.
The battery may become warm in use or while being charged. This
●
is normal.
Store the battery in cool and dry conditions.
●
For long time storage, please keep the battery power above 50%.
●
During long periods of inactivity, please remove the battery from
●
the equipment.
Do not use, store or place the battery in an electrostatic area.
●
Make sure the input voltage, power consumption of the equipment
●
to be powered meet the battery specifications.

Bi-voltage Switching

The battery can output 14.4V(11-16.8V) or 28.8V(22-33.6V) by internal
circuit switching.
When the voltage indicator LED is OFF, the battery is in 11-16.8V system;
When the voltage indicator LED is ON, the battery is in 22-33.6V system.

1. Working 14.4V (11-16.8V) Mode

In default condition, the Voltage indicator is "OFF" , means the battery
is 14.4V (11-16.8V) system, and can power normal 14.4V equipment
and charge by normal 14.4V charger system.

2. Working 28.8V (22-33.6V) Mode

To active the 28.8V (22-33.6V) power output, there' re following 2 ways:
(1) By SWIT particular V-mount plates
by TD-R210S 24V/48V Light Stand Adaptor
25-45mm light stand install
◆
Auto active 22-33.6V output of PB-H260S battery
◆
Output Max 48V 500W with 2x PB-H260S batteries
◆
VER: A
by KA-A20S V-mount Plate
Fit for ARRI ALEXA / AMIRA
◆
Auto active 22-33.6V output of
◆
PB-H260S battery
Provide D-tap and 2pin LEMO
◆
outputs of regulated 16V voltage
