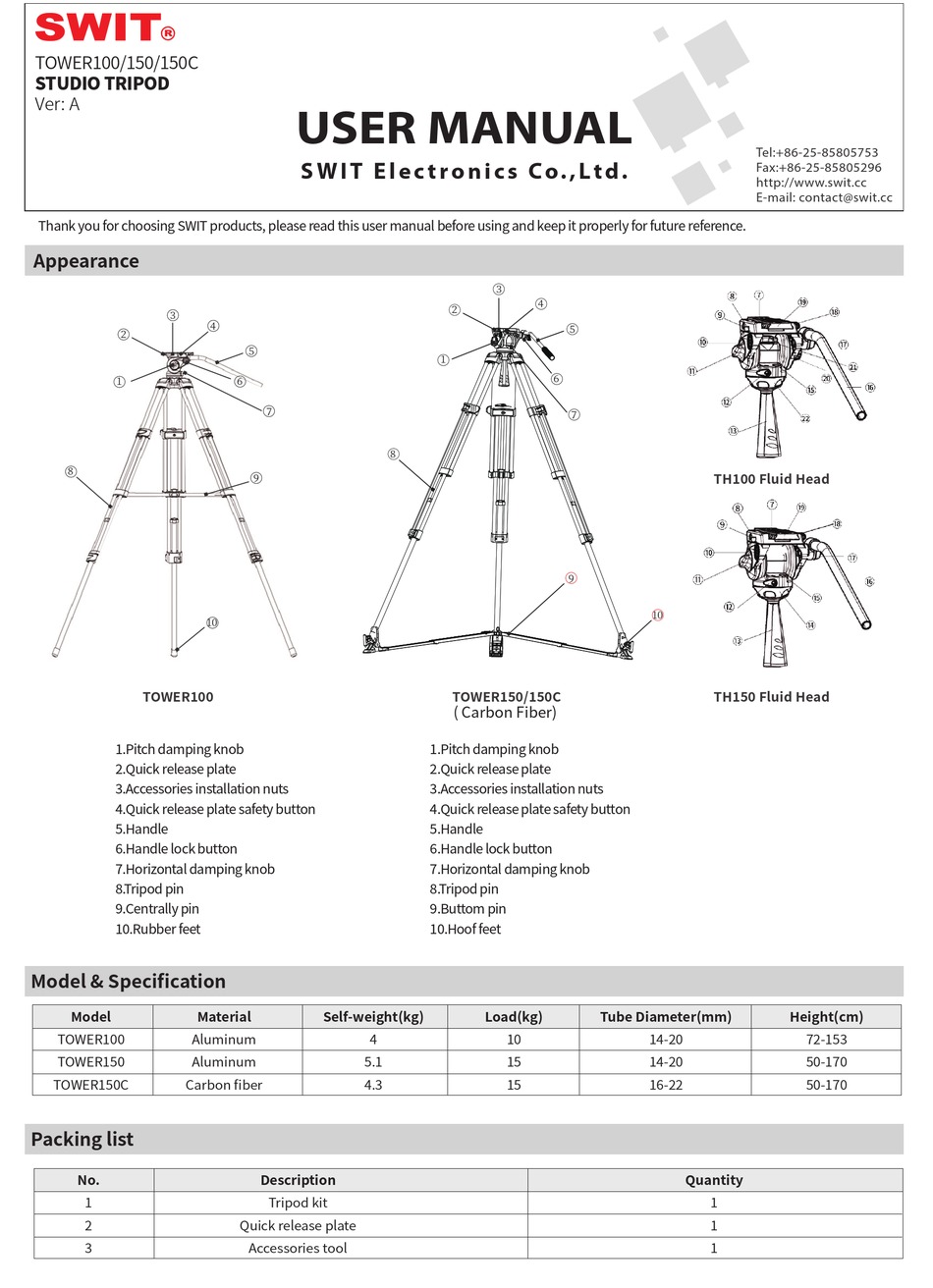

SWIT TOWER100 User Manual

TOWER100/150/150C
STUDIO TRIPOD
Ver: A
Thank you for choosing SWIT products, please read this user manual before using and keep it properly for future reference.
Appearance
�
�
�
��
TOWER100
1.Pitch damping knob
2.Quick release plate
3.Accessories installation nuts
4.Quick release plate safety button
5.Handle
6.Handle lock button
7.Horizontal damping knob
8.Tripod pin
9.Centrally pin
10.Rubber feet
Model & Specification
Model Material
TOWER100 Aluminum
TOWER150 Aluminum
TOWER150C Carbon fiber
Packing list
No.
1
2
3
USER MANUAL
S W I T E l e c t r o n i c s C o. , L t d .
�
�
�
�
�
Self-weight(kg)
4
5.1
4.3
Description
Tripod kit
Quick release plate
Accessories tool
�
�
�
�
�
TOWER150/150C
( Carbon Fiber)
1.Pitch damping knob
2.Quick release plate
3.Accessories installation nuts
4.Quick release plate safety button
5.Handle
6.Handle lock button
7.Horizontal damping knob
8.Tripod pin
9.Buttom pin
10.Hoof feet
Load(kg)
10
15
15
�
�
TH100 Fluid Head
�
��
TH150 Fluid Head
Tube Diameter(mm)
14-20
14-20
16-22
Quantity
1
1
1
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
Height(cm)
72-153
50-170
50-170
