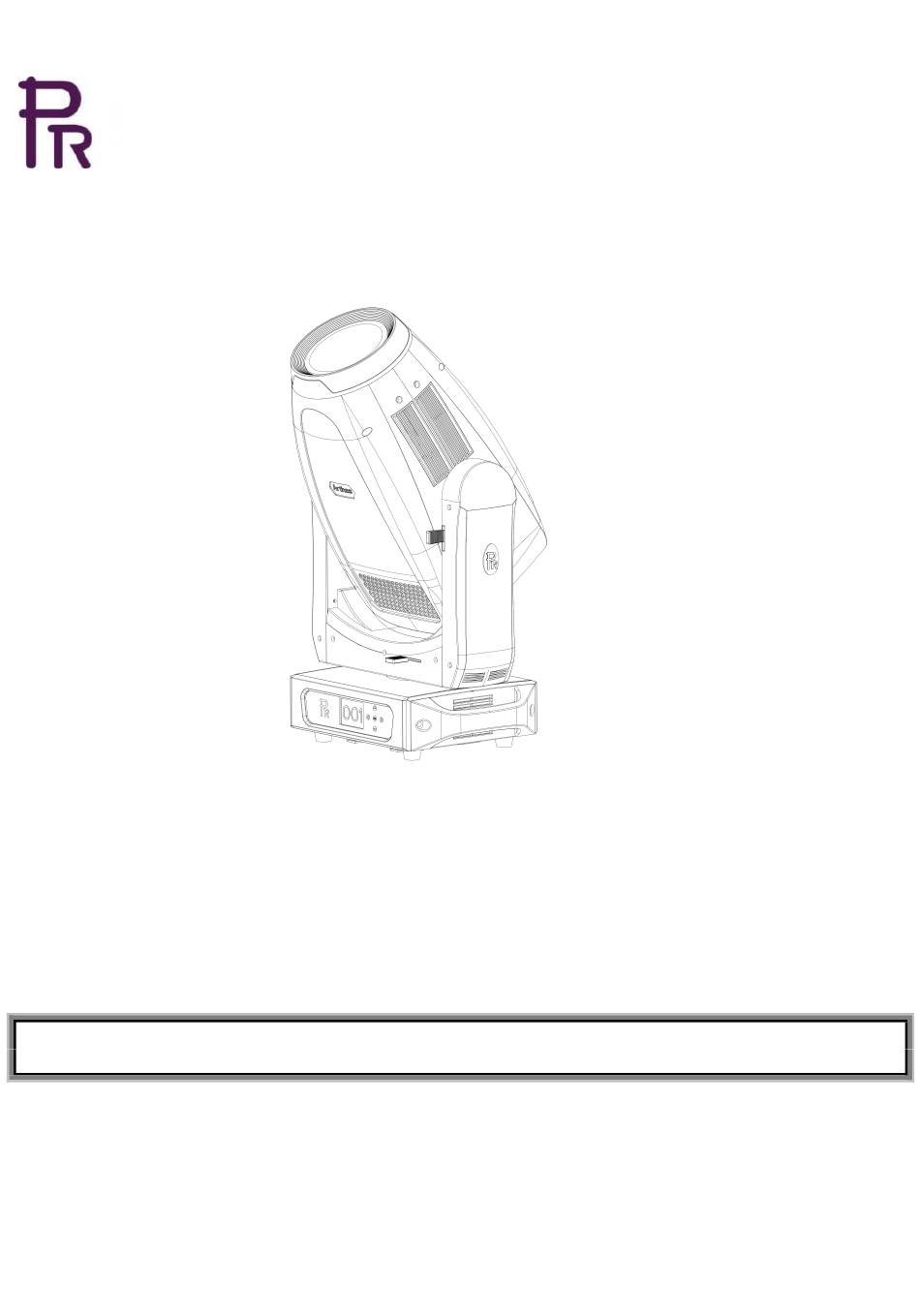

XRLED 400 BWS
PR-8152
The user manual contains important information about the safe installation and use of a projector. Please read and
follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
ht t p : / / w w w . p r - l i g h t i n g . c o m
1
Advertisement
Table of Contents
Related Manuals for PR XRLED 400 BWS
Summary of Contents for PR XRLED 400 BWS
- Page 1 XRLED 400 BWS PR-8152 The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference. PR LIGHTING LTD.
- Page 2 INDEX SAFETY AND WARNINGS………………………………………………………………………………… INSTRUCTIONS…………………………………………………………………………………………… APPERANCE………………………………………………………………………………………………… INSTALLTION………………………………………………………………………………………………… SETUP AND TONFIGURATION…………………………………………………………………………… OPERATION MENU………………………………………………………………………………………… DMX PROTOCOL …………………………………………………………………………………………… ERROR MESSAGES………………… ……………………………………………………………………… TECHNICAL DATA………………………………………………………………………………………… CIRCUIT DIAGRAM ………………………………………………………………………………………… COMPONENT ORDER CODES……………………………………………………………………………… APPENDIX…………………………………………………………………………………………………… ACCESSORIES The following items are supplied with the projector and please check: Name Quantity Unit Remark...
-
Page 3: Safety And Warnings
1. SAFETYAND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Goggles Warning User Electrical Protective Flames High Manual shock Gloves Temperature ●... - Page 4 other electrical parts’ life will be shortened ●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord supplied through the safety cord holes for safety support. ●Before any installation, maintenance and cleaning work, please ensure a projector is disconnected from power mains.
-
Page 5: Installation
TROUBLESHOOTING ● PROBLEM ACTION Checkthefuseon thepower socket. The projector doesn’t switch on Check thelamp. Thelamp is on butthe projectordoesn’t respond Makesurethatthefixture’s startaddressis right Replaceor repair theXLR signalcable. to thecontroller The projector functions intermittently Makesurethefanisworkingwellorfansandtheirshieldsarenotblocked Makesurethelamp is within itslifespan ... - Page 6 The bracket of BASE： Use the spanner supplied with a projector to help installation. WARNING: TheprojectorMUST be lifted or carriedby the HANDLESinstead of clamps. ● .Forsafety thesafety cordshould afford10 timesthe Projector’s weight. ● It must use secondary safety accessory like appropriate net. The structures of the secondary accessory must ensure that while malfunction happens, the installed parts won’t fall to the ground.
- Page 7 The operator of the projector or its related safety items must be accepted by safety experts before first launching or re-running after anyreplacements or repairing. The operator must ensure a test before acceptance every 4 years and the related safety measures and installation accepted by experts.
- Page 8 DMXTERMINATOR ● In the Controller mode, at the lastfixture in the chain, the DMX output has to be connected with a DMX terminator.Thisprevents electrical noisefrom disturbingandcorrupting theDMX control signals. The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain.
- Page 9 DANGER！ BEOFORE GOBO REPLACEMENT, IT MUST BE OFFPOWER！...
-
Page 10: Setup And Configuration
5. SETUPAND CONFIGURATION ● FRONTPANELOPERATION To browse through or view a projector’s function settings, push any key to activate the screen after power-on.. After screen unlocked, push both key and to enter into menus. Each main menu has its sub-menus with different special functions, for detailspleasesee the 5 point hereinafterOPERATIONMENU. -
Page 11: Operation Menu
6. OPERATION MENU Main Menu Level 1 Level 2 Level 3 Press the button DMX Address Address: 001-512 code Settings Channel Mode: 22CH/28CH Motor Power On/off Reset All On/off Pan Tilt On/off Reset Color On/off Gobo On/off Beam Path On/off DMX/User/Auto 0-255 Tilt... - Page 12 Linear/Square/Square DimCurve Root/S-Curve/Log Power On Middle/Auto/User/No Effect If No DMX Run Time Shutter Off/Keep Silent Mode OFF/ON Input PSW **** Sleep 30sec/2min/10min/No Flip No/Yes LCD Display Advanced Settings Auto Lock Language English/Chinese Ignore Err Raster Waveform No/Yes Adj Recover Input PSW **** DMX Value Error...
-
Page 13: Dmx Protocol
7. DMX PROTOCOL Value Function DMX channel Standard Short Mode 28CH 22CH 0-255 0-100% Pan Fine 0-255 0-100% Tilt 0-255 0-100% Tilt Fine 0-255 0-100% Pan and Tilt speed 0-255 Fast ->Slow Strobe Close 4-103 Strobe: Slow->Fast 104-107 Open 108-207 Pulse strobe: Slow->Fast 208-212 Open... - Page 14 72-79 Color4+Color5 80-87 Color5 88-95 Color5+Color6 96-103 Color6 104-111 Color6+Color7 112-119 Color7 120-127 Color7+Open 128-190 Clockwise rotation: Fast->Slow 191-192 Stop 193-255 Anti-clockwise rotation: slow->fast Fixed gobo wheel Open 6-15 GOBO1 16-25 GOBO2 26-35 GOBO3 36-45 GOBO4 46-55 GOBO5 56-65 GOBO6 66-75 GOBO7 76-92...
- Page 15 230-255 Anti-clockwise rotation: slow->fast GOBO Rotation 0-127 Positioning:0-360° 128-191 Clockwise rotation: Fast->Slow 192-255 Anti-clockwise rotation: slow->fast GOBO Rotation fine 0-255 0-100% 4 facet prism 0-127 No Function 128-255 Prism in 4 facet prism rotation 0-127 0-360° 128-190 Clockwise rotation: Fast->Slow 191-192 Stop 192-255...
-
Page 16: Error Message
8.ERROR MESSAGE Name Type Correction Optical sensor error: Pan Check if wiring, optical sensor and motors are normal Optical sensor error: Tilt Check if wiring, optical sensor and motors are normal Tilt Pan & Tilt driver board Communication error: module1 Check if wiring, hall sensor and motors are normal Communication error: module2 Check if wiring, hall sensor and motors are normal Motor driver board Hall error: Focus... -
Page 17: Rotating Gobo Wheel
FIXED GOBO WHEEL/EFFECTWHEEL 1 fixed gobo wheel: 7gobos+open, gobodiameter=6.5mm,its thickness=0.5mm 1 fireeffect wheel ROTATING GOBO WHEEL 1 rotating gobo wheel: 7 gobos +open Gobo diameter Ф19.5mm, 4mm thick... -
Page 18: Operation Temperature
PRISM/FROST 1 4-facet prism 1 Frost FOCUS DMX linear focus DIMMER /STROBE Strobe at variable speeds 0-100% linear dimmer HEAD MOVEMENT Pan 540º, Tilt 270º with 16 bit control BEAMANGLE Beam: 5°～ 45° Spot :11°~46° Wash: 8°~ 48° CONTROL Projectorand lampinformationreadable,externalDMX value receivedand thermalsensorbuilt-in for error and malfunction analysis Presetmemory Unintentional head move to cause power-off, quiet fans for cooling International standard DMX 512 protocol, 5-pin interface 22channelsin shortmode and28channelsin standardmode... -
Page 19: Light Output
LIGHT OUTPUT... -
Page 20: Circuit Diagram
10. CIRCUIT DIAGRAM... -
Page 21: Component Ordercodes
11.COMPONENT ORDERCODES Name Code No. Remarks Pan Motor 50300-00181 Tilt Motor 50300-00181 70232-00045 70232-00046 70232-00047 Rotating gobo wheel 7 glass gobos 70232-00048 70232-00049 70232-00050 70232-00051 50502-00264 50502-00265 50502-00266 7colors, each code no. stands for one Color wheel 50502-00267 color 50502-00268 50502-00269 50502-00270 50502-00260... - Page 22 APPENDIX: SOME ITEMS REQUIRING ATTENTION AS FOR THE USE OF DISCHARGE LAMP Dear Client, The platinum lamps favored by the lighting sector have high color temperature, high brightness, high CRI, pure light beam and other advantages. For their use, some advice is offered for your reference: 1.
- Page 24 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 320021498...
